Description

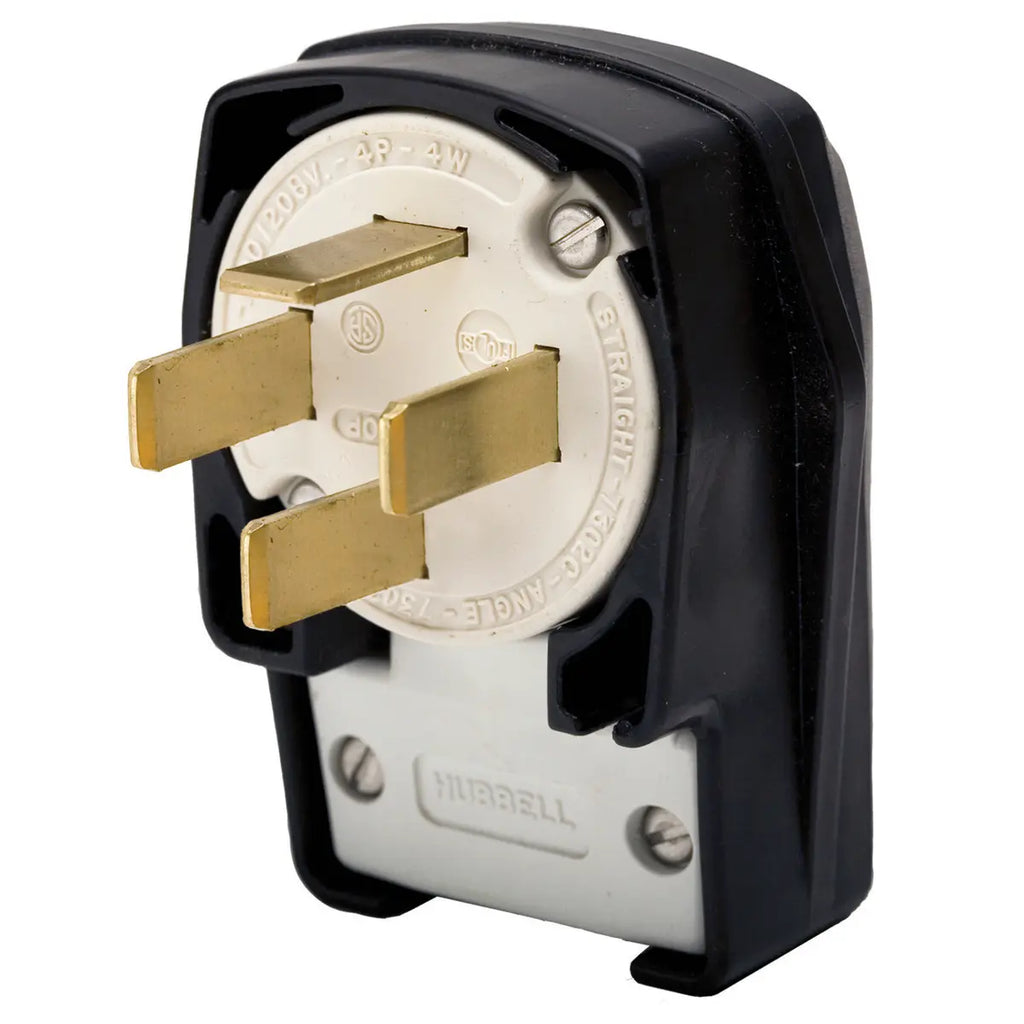

HBL7302C - Hubbell Wiring Device-Kellems - 60A/120/208V 3-Phase 4-Pole 4-Wire Non-Grounding Angled Male Plug Heavy Duty Straight Blade Devices
Straight Blade Devices, Male Plug, Heavy Duty, Industrial/Commercial Grade, Angled, 4-Pole 4-Wire Non-Grounding, 60A 3 Phase 120/208V AC, 18-60P, Black, Single Pack.
- Heavy Duty
- Industrial/Commercial Grade
- Angled
GENERAL SPECIFICATIONS
| Catalog Number | HBL7302C |
| Color | Black |
| Cord Range | 0.625" - 1.310" |
| EU RoHS Indicator | Contact Manufacturer |
| Material | Nylon |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Style | Non-Grounding |
| Type | Plug |
| UPC | 783585015378 |
Dimensions
| Dimensions | 4.13 in x 2.88 in x 2.88 in |
| Height | 2.88 in |
| Length | 4.13 in |
| Weight | 0.8 lb |
| Width | 2.88 in |
Electrical Ratings
| Amperage Rating | 60 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Phase | Three Phase |
| Voltage Rating | 120/208 VAC |
Conductor Related
| Number Of Wires | 4-Wire |
Logistics
| Carton Quantity | 5 |
PRODUCT DATASHEET
Wiring HBL7302C Specification Sheet
