Description

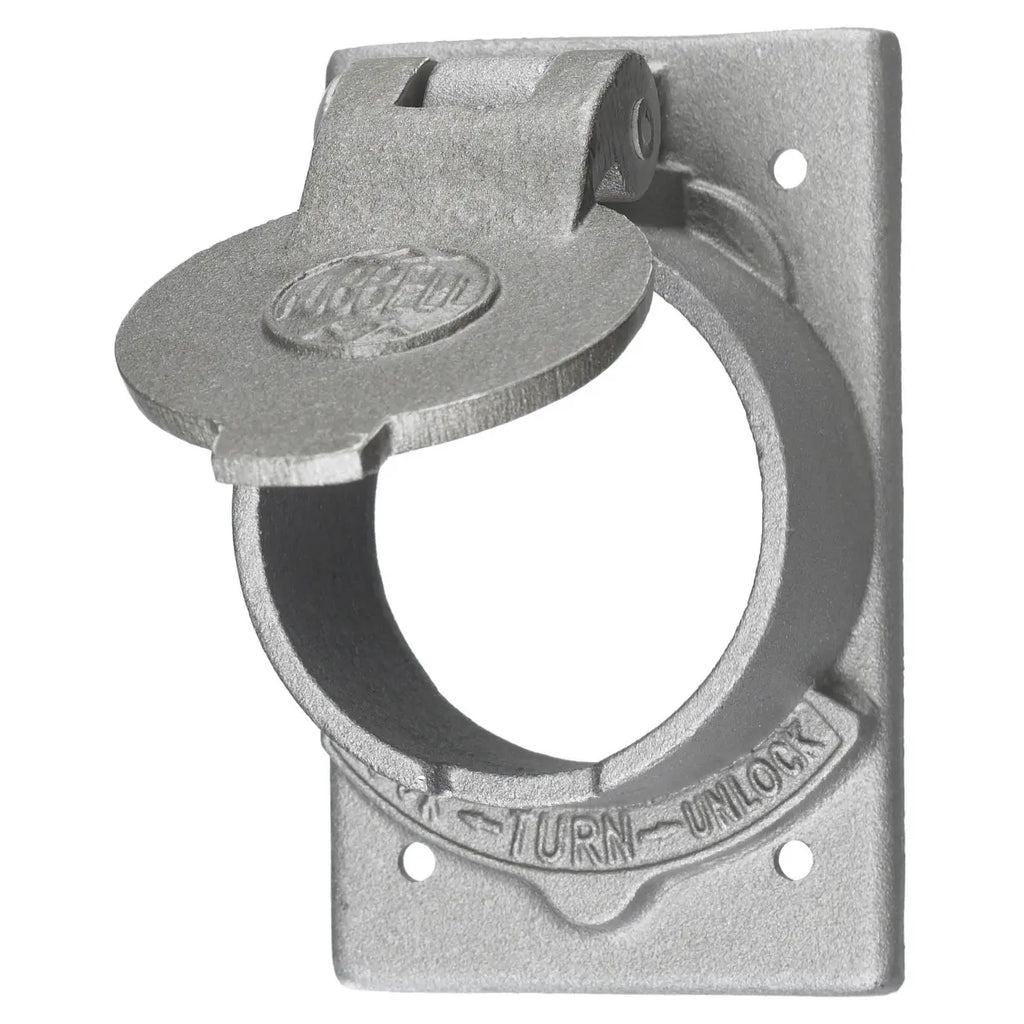

HBL7382 - Hubbell Wiring Device-Kellems - 1-Gang 50A Locking Opening Non-Weatherproof Cover Wallplates and Boxes
Wallplates and Boxes, Non-Weatherproof Covers, 1-Gang, 1) 50A Locking Opening, Standard Size, Cast Aluminum, With Lift Cover
- Spring loaded lift cover provides environmental protection
- FD box mounting
GENERAL SPECIFICATIONS
| Application | HBL Series 50A Twist-Lock® |
| Catalog Number | HBL7382 |
| Color | Metallic |
| Construction | Cast |
| EU RoHS Indicator | No |
| Item Type | Weatherproofing Covers |
| Knockouts | None |
| Material | Aluminum |
| Material - Mounting Hardware | Vertical FS/FD Mount - Mounting Screws |
| Number Of Outlets | 1-Device |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance | Environmental - Moisture Resistance - IP44 Suitability |
| Specifications | Plate - Cast Aluminum |
| Style | For 50A Devices |
| Type | Weatherproof Cover |
| UPC | 783585809380 |
Dimensions
| Weight | 0.5 lb |
Electrical Ratings
| Dielectric Strength | Withstands 2,000V minimum |
Logistics
| Carton Quantity | 10 |
PRODUCT DATASHEET
Wiring HBL7382 Specification Sheet
