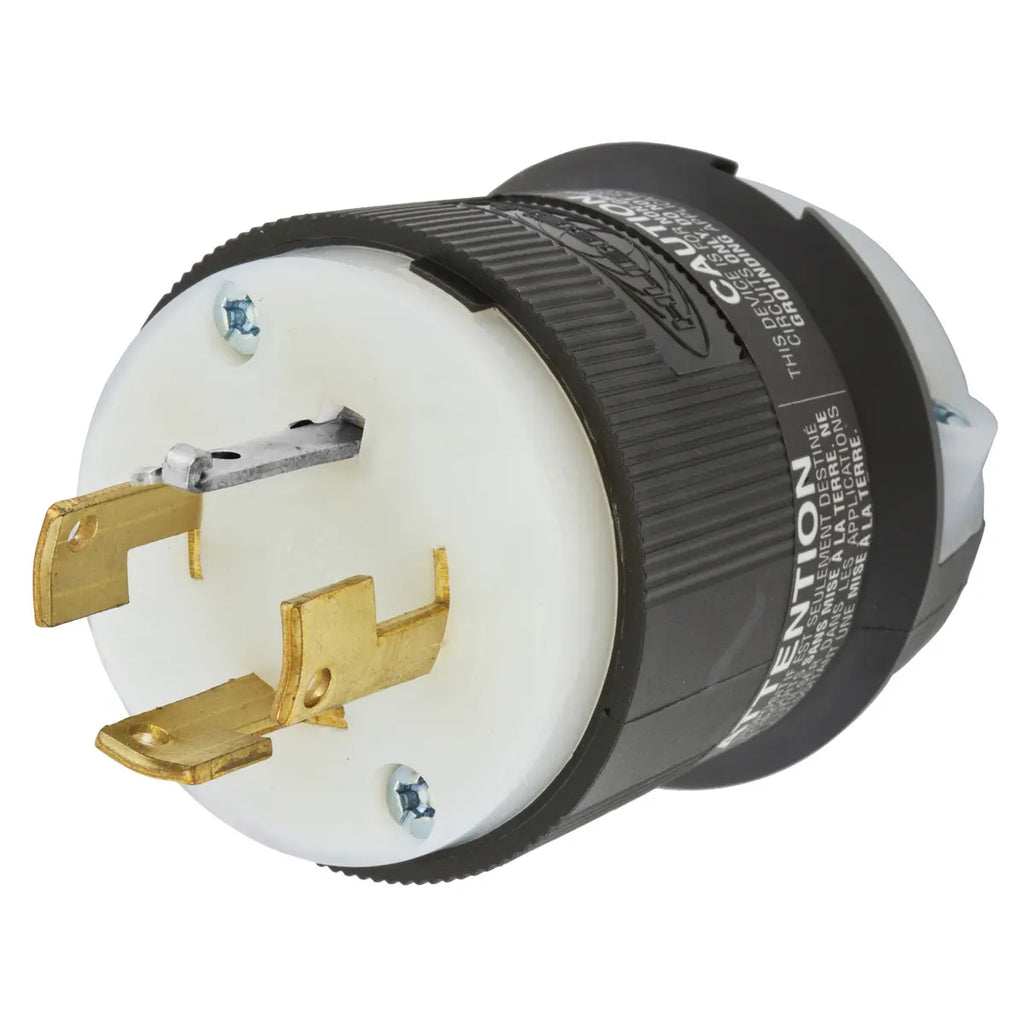

HBL7411C - Hubbell Wiring Device-Kellems - 20A/120/208V 3-Phase 4-Pole 4-Wire Non-Grounding Male Plug Industrial Twist-Lock Locking Devices
Locking Devices, Twist-Lock(R), Industrial, Male Insulgrip(R) Plug, 20A 3-Phase Y 120/208VAC, 4-Pole 4-Wire Non-Grounding, Non- NEMA, Screw Terminal, Black and White Nylon.
- Ribbed nylon housing provides a secure grip and impact and chemical resistance.
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
Standard Product
GENERAL SPECIFICATIONS
| Catalog Number |
HBL7411C |
| Color |
Black, White |
| Cord Range |
0.350" - 1.150" (9-29 mm) |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Item Type |
20A Male Non-Grounding Insulgrip(R) Plug |
| Material |
Nylon |
| Material - Mounting Hardware |
Cord Mounted |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC, Minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Specifications |
- Assembly Screws - Steel - nickel plated
- Blades - Brass
- Housing / Cord Clamp - Nylon
- Terminal Clamp - Cold rolled steel - nickel plated
- Terminal Retainer - Clear polycarbonate
- Terminal Screws - #10-32 Brass (Phillips / Slotted / Robertson)
|
| Type |
Plugs |
| UPC |
783585037561 |
Dimensions
| Dimensions |
2.33 in x 2.33 in x 2.75 in |
| Display Size |
Standard Sized |
| Height |
2.75 in |
| Length |
2.33 in |
| Weight |
0.3 lb |
| Width |
2.33 in |
Electrical Ratings
| Amperage Rating |
20 A
|
| Connectivity |
Screw Terminals |
| Current / Amperage Rating |
20 A |
| Current Rating |
20 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Three Phase |
| Voltage Rating |
3 Phase WYE 120/208 VAC |
| Voltage Rating Description |
3 Phase WYE 120/208 VAC |
Conductor Related
| Cable Range |
0.350 - 1.150 in |
| Number Of Poles |
4-Pole |
| Number Of Wires |
4-Wire |
| Wire Size |
#14 AWG to #10 AWG |
Operational
| Operating Temperature
|
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
Configuration
| Cord Type
|
All Listed Portables |
Logistics
| Carton Quantity |
30 |
| Pallet Quantity |
3060 |
PRODUCT DATASHEET
Wiring HBL7411C Specification Sheet
