HBL7413C - Hubbell Wiring Device-Kellems - 20A/120/208V 3-Phase 4-Pole 4-Wire Non-Grounding Female Connector Body Industrial Twist-Lock Locking Devices
Roll over image to zoom in Click on image to zoom
HBL7413C - Hubbell Wiring Device-Kellems - 20A/120/208V 3-Phase 4-Pole 4-Wire Non-Grounding Female Connector Body Industrial Twist-Lock Locking Devices

HBL7413C - Hubbell Wiring Device-Kellems - 20A/120/208V 3-Phase 4-Pole 4-Wire Non-Grounding Female Connector Body Industrial Twist-Lock Locking Devices

HubbellSKU: HUBHBL7413C
Price:
$46.49
Stock:
Sold out

Description

HBL7413C - Hubbell Wiring Device-Kellems - 20A/120/208V 3-Phase 4-Pole 4-Wire Non-Grounding Female Connector Body Industrial Twist-Lock Locking Devices

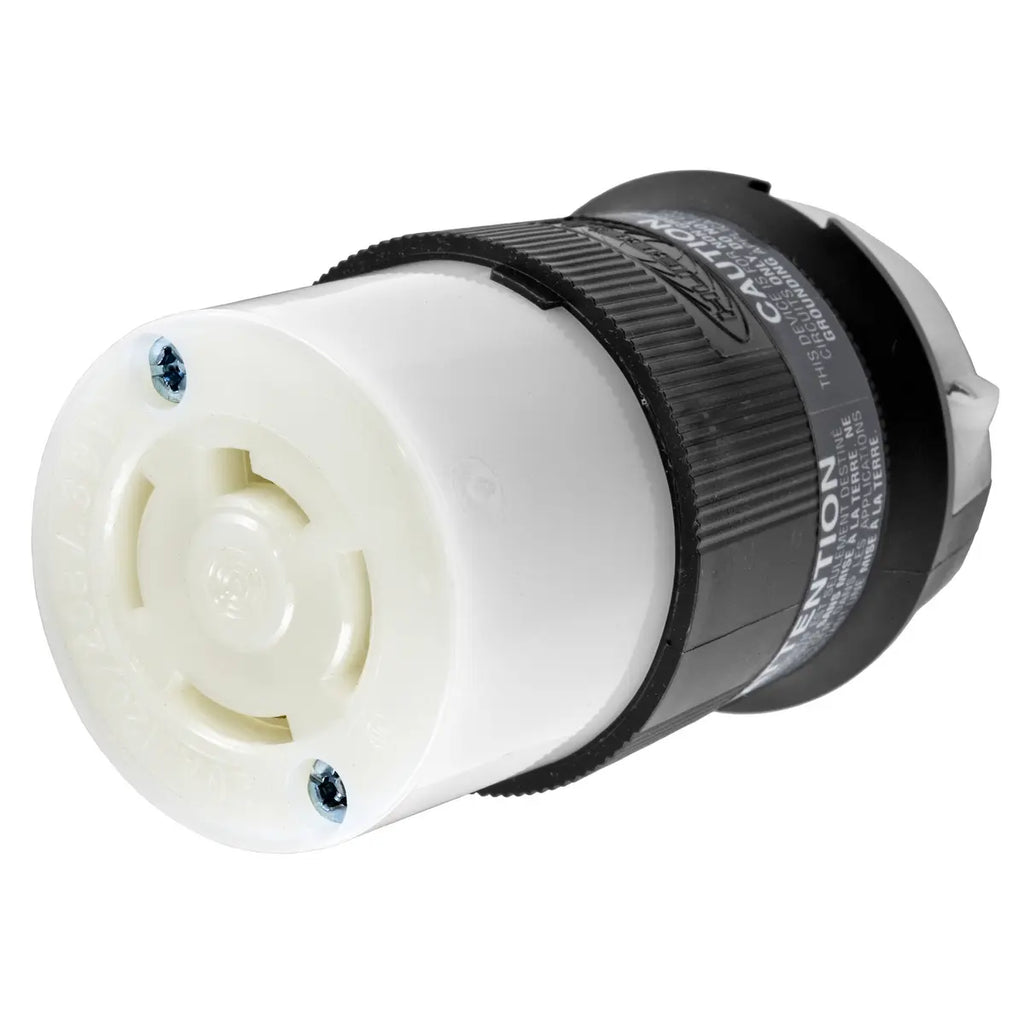

Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non- Grounding, Non-NEMA, Screw Terminal, Black and White Nylon.

  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.

Standard Product

GENERAL SPECIFICATIONS

Application Heavy Duty Industrial
Catalog Number HBL7413C
Color Black, White
Cord Range 0.350" - 1.150" (9-29 mm)
Environmental Conditions Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator Yes
Insulation Insulated Body
Item Type 20A Insulgrip® Connector
Material Nylon
Material - Mounting Hardware Cord Mounted
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Type Connector Body
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
  • Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Specifications
  • Assembly Screws - Steel - nickel plated
  • Contacts - Brass
  • Housing / Cord Clamp - Nylon
  • Terminal Clamp - Cold rolled steel – nickel plated
  • Terminal Retainer - Clear polycarbonate
  • Terminal Screws - #10-32 Brass (Phillips / Slotted / Robertson)
Temperature Rating Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type Connector Body
UPC 783585037585



Dimensions

Dimensions 2.33 in x 2.33 in x 3.86 in
Display Size Standard
Height 3.86 in
Length 2.33 in
Weight 0.4 lb
Width 2.33 in



Electrical Ratings

Amperage Rating 20 A
Connectivity Pressure Terminal Screws
Current / Amperage Rating 20 A
Current Rating 20 A
Dielectric Strength Withstands 2,000V minimum
Phase Three Phase
Voltage Rating 3 Phase WYE 120/208 VAC
Voltage Rating Description 3 Phase WYE 120/208 VAC



Conductor Related

Cable Range
0.350 - 1.150 in
Number Of Poles
4-Pole
Number Of Wires
4-Wire
Wire Size
#16 AWG to #8 AWG



Operational

 Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
  • Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 49
Temperature Rating Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.


Logistics

Carton Quantity 30
Pallet Quantity 3060



PRODUCT DATASHEET

Wiring HBL7413C Specification Sheet
