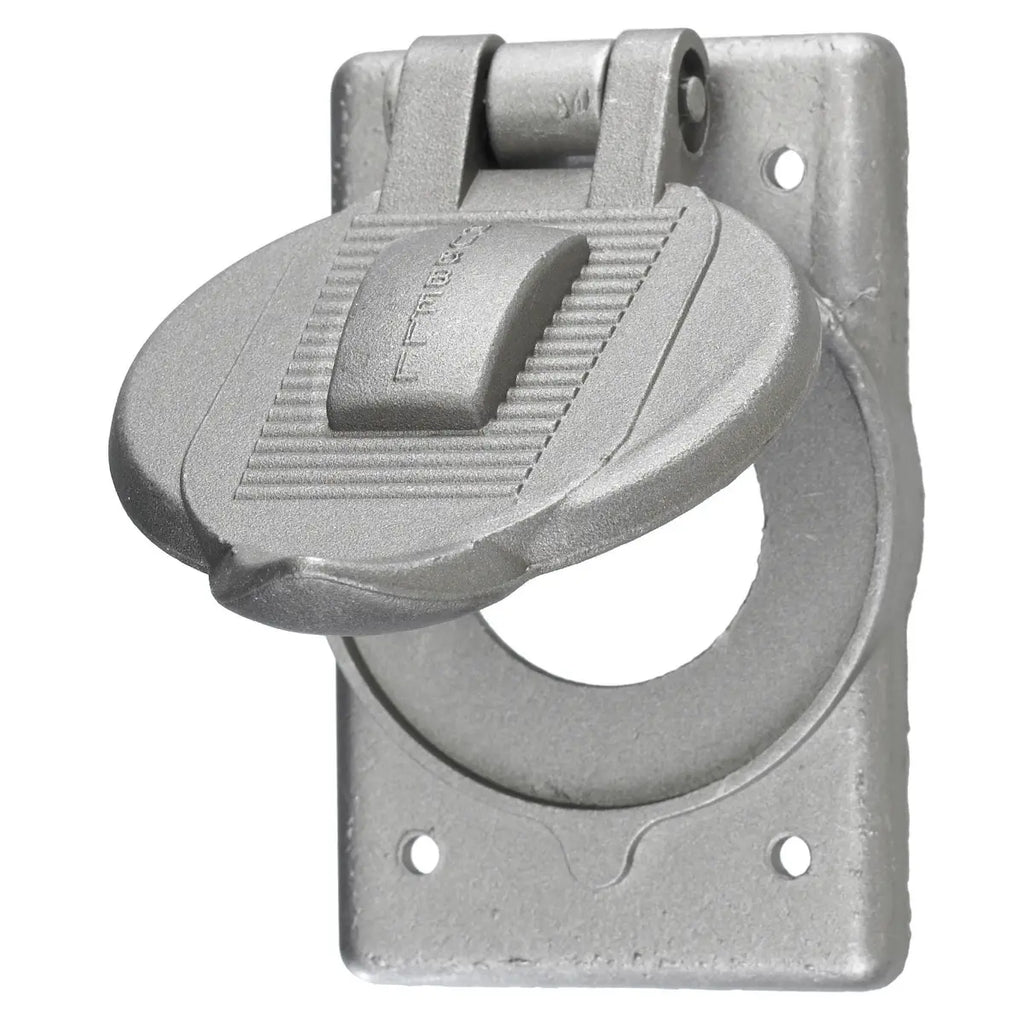

HBL7420 - Hubbell Wiring Device-Kellems - 1-Gang Weatherproof Cover 1.40"-1.60" Opening Aluminum Wallplates and Boxes
Twist-Lock(R) Devices, Weatherproof Covers, Accessories for 20 and 30 Amp 3, 4 and 5 Wire Devices, Cast aluminum, for FS/FD box mounting
- 1-Gang
- 1) 1.40" to 1.60" Opening
- Standard Size
GENERAL SPECIFICATIONS
| Catalog Number |
HBL7420 |
| Construction |
Cast |
| EU RoHS Indicator |
Yes |
| Item Type |
Weatherproofing Covers |
| Knockouts |
None |
| Material |
Aluminum, Cast |
| Material - Mounting Hardware |
Vertical FS/FD Mount - Mounting Screws |
| Number of Gang(s) |
1-Gang |
| Number Of Outlets |
1-Device |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
-40 degC to 85 degC |
| Series |
Accessory |
| Specifications |
- Gasket - Neoprene
- Hinge Pin - Stainless steel
- Material - Aluminum
- Spring - Stainless steel
|
| Style |
For switches/receptacles with Face Diameter 1.36-1.58 in. |
| Type |
Weatherproof Plates |
| UPC |
783585809434 |
Dimensions
| Dimensions |
4.56 in x 2.84 in x 1.09 in |
| Display Size |
1-Gang |
| Height |
1.09 in |
| Length |
4.56 in |
| Weight |
0.45 lb |
| Width |
2.84 in |
Logistics
PRODUCT DATASHEET
Wiring HBL7420 Specification Sheet
