Description

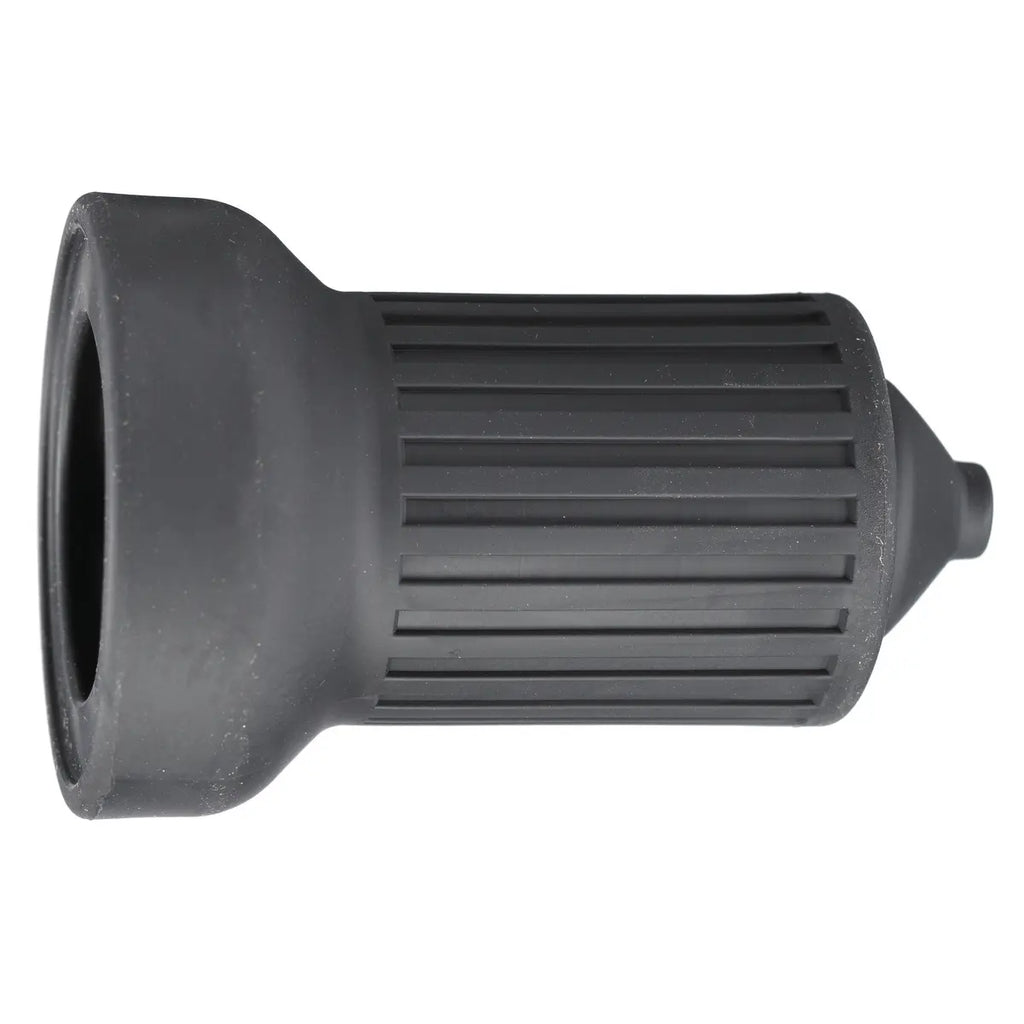

HBL7440V - Hubbell Wiring Device-Kellems - 15A 3-Wire Weatherproof Boot Midget Twist-Lock Accessories
Twist-Lock® Midget Weatherproof Boot 15A for 3-Wire
- Weather protective covering
- Durable thermoplastic elastomer material
- Ribbed design provides a secure grip
Weather protective covering
GENERAL SPECIFICATIONS
| Catalog Number | HBL7440V |
| Construction | Molded |
| EU RoHS Indicator | Yes |
| Material | Elastomer / Elastomeric |
| Material - Mounting Hardware | Mounts on Device |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C, Minimum -40°C without Impact |
| Specifications | Material: Thermoplastic Elastomer |
| Type | Weatherproof Boot |
| UPC | 783585237220 |
Dimensions
| Dimensions | 1.87 in x 1.37 in x 1.87 in |
| Height | 1.87 in |
| Length | 1.87 in |
| Weight | 0.15 lb |
| Width | 1.37 in |
Electrical Ratings
| Dielectric Strength | Withstands 2,000V minimum |
Conductor Related
| Cable Entry | End of Boot |
Operational
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
Logistics
| Carton Quantity | 10 |
| Pallet Quantity | 1000 |
PRODUCT DATASHEET
