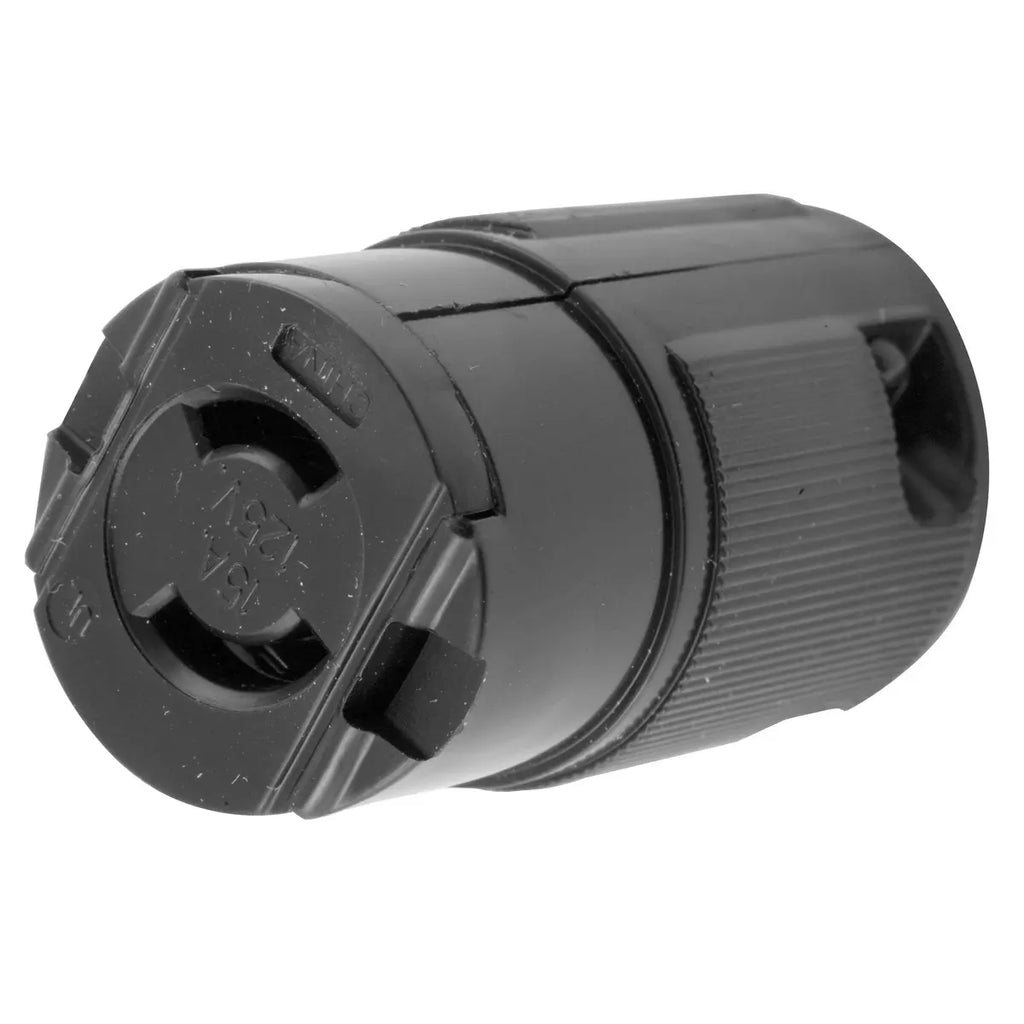

HBL7464V - Hubbell Wiring Device-Kellems - 15A/125V 2-Pole 2-Wire Non-Grounding Female Connector Body Valise Midget Twist-Lock Devices
Locking Devices, Midget Twist-Lock(R), Valise(R), Female Connector Body, 15A 125V AC, 2-Pole 2-Wire Non Grounding, NEMA ML- 1R, Screw Terminal, Black, Polarized.
- Fully insulated, abuse resistant nylon housing
- Insulation displacement terminals reduce wiring time
- Insulation displacement terminal
GENERAL SPECIFICATIONS
| Catalog Number |
HBL7464V |
| Color |
Black |
| Cord Range |
0.220" - 0.385" (5.6 - 9.8 mm) |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Insulation |
Insulated Body |
| Item Type |
15A Midget Twist-Lock(R) Valise(R) Connector |
| Material |
Nylon |
| Material - Mounting Hardware |
Cord Mounted |
| Number Of Poles |
2-Pole |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC, Minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accomodation - #18 AWG - #14 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Specifications |
- Body Holding Screws - Steel - Zinc plated
- Contacts - Brass
- Housing - Nylon
- Terminal Clamps - Steel - Nickel plated
- Terminal Screws - #6 - 32 Steel (Philips / Slotted / Robertson)
|
| Temperature Rating |
Maximum Continuous: 75 degC; Minimum Continuous: -40 degC (w/o impact), -25 degC (with impact) |
| Type |
Connector Body |
| UPC |
783585237251 |
Dimensions
| Dimensions |
1.06 in x 1.06 in x 1.77 in |
| Display Size |
Midget Locking |
| Height |
1.77 in |
| Length |
1.06 in |
| Weight |
0.05 lb |
| Width |
1.06 in |
Electrical Ratings
| Amperage Rating |
15 A |
| Connectivity |
Pressure Terminal Screws |
| Current / Amperage Rating |
15 A |
| Current Rating |
15 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Voltage Rating |
125 V |
| Voltage Rating Description |
125 V |
Conductor Related
| Cable Range |
0.220 - 0.385 in |
| Conductor Range |
#14 AWG to #12 AWG |
| Number Of Wires |
2-Wire |
| Wire Size |
#18 AWG to #14 AWG |
Logistics
