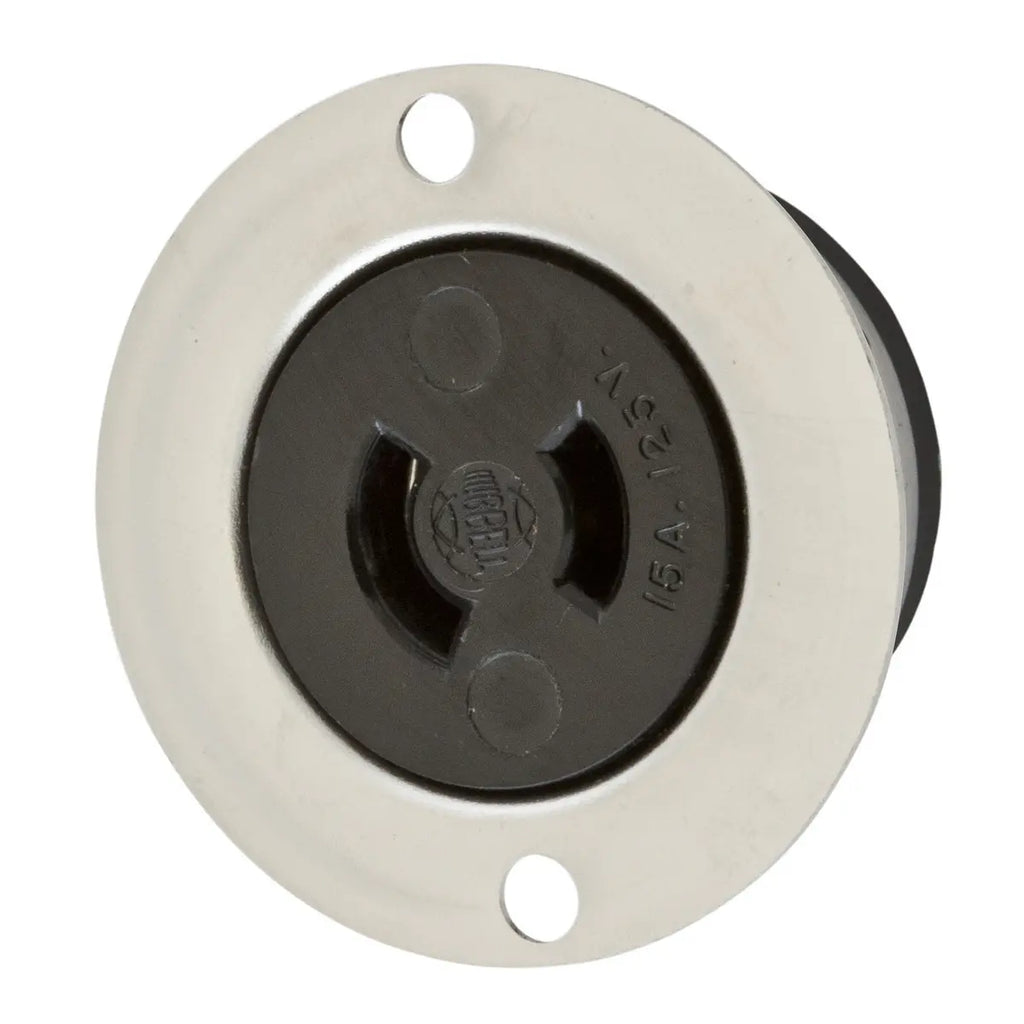

HBL7468 - Hubbell Wiring Device Kellems 15A 125V 2 Pole 2 Wire Non Grounding Flanged Receptacle Midget Twist Lock(R)
Locking Devices, Midget Twist-Lock(R), Industrial, Flanged Receptacle, 15A 125V AC, 2-Pole 2-Wire Non Grounding, NEMA ML-1R, Screw Terminal, Stainless Steel Flange.
- Stainless Steel mounting flange
- High heat resistant phenolic base
Metallic Flange
GENERAL SPECIFICATIONS
| Catalog Number |
HBL7468 |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
No |
| Insulation |
Insulated Body |
| Item Type |
15A Midget Twist-Lock(R) Flanged Receptacle |
| Material |
Nylon |
| Material - Mounting Hardware |
Screw Mounting |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC, Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #18 AWG - #14 AWG solid or stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Specifications |
- Base - Phenolic
- Contacts - Brass
- Flange - Stainless Steel
- Terminal Screws - #5-40 Brass
|
| Temperature Rating |
Maximum Continuous: 75 deg C; Minimum Continuous: -40 deg C w/o impact, -25 deg with impact |
| Type |
Flanged Receptacle |
| UPC |
783585237336 |
Dimensions
| Dimensions |
1.63 in x 1.63 in x 0.78 in |
| Display Size |
Midget Locking |
| Height |
0.78 in |
| Length |
1.63 in |
| Weight |
0.05 lb |
| Width |
1.63 in |
Electrical Ratings
| Amperage Rating |
15 A |
| Connectivity |
Screw Terminals |
| Current / Amperage Rating |
15 A |
| Current Rating |
15 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
125 V |
| Voltage Rating Description |
125 V |
Conductor Related
|
Number Of Poles |
2-Pole |
| Number Of Wires |
2-Wire |
| Wire Size |
#18 AWG to #14 AWG |
Operational
|
Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC, Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #18 AWG - #14 AWG solid or stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Temperature Rating |
Maximum Continuous: 75 deg C; Minimum Continuous: -40 deg C w/o impact, -25 deg with impact. |
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
4500 |
PRODUCT DATASHEET
Wiring HBL7468 Specification Sheet
