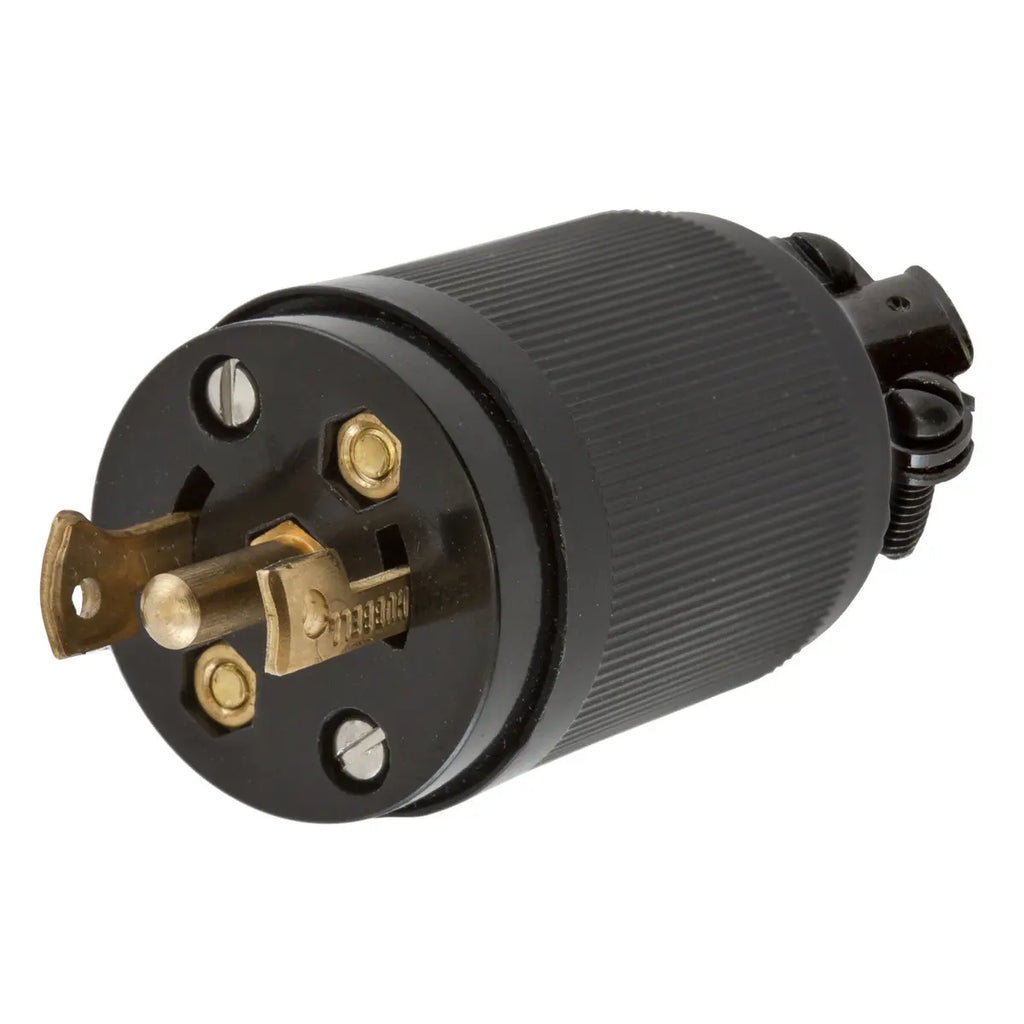

HBL7485 - Hubbell Wiring Device Kellems 15A 125/250V 3 Pole 3 Wire Non Grounding Male Plug Midget Twist Lock(R)
Locking Devices, Midget Twist-Lock(R), Industrial, Male Plug, 15A 125/250V AC, 3-Pole 3-Wire Non Grounding, NEMA ML-3P, Screw Terminal, Black.
- Abuse resistant nylon housing
- Phenolic body for high heat resistance
- Angled body design for low profile in tight spaces
- Totally insulated body adds extra measure of safety
Standard Product
GENERAL SPECIFICATIONS
| Catalog Number |
HBL7485 |
| Color |
Black |
| Cord Range |
0.281" - 0.421" (7.1 - 10.7 mm) |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Item Type |
15A Midget Twist-Lock(R) Plug |
| Material |
Nylon |
| Material - Mounting Hardware |
Cord Mounted |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accomodation - #18 AWG - #14 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Specifications |
- Blade Holder - Phenolic
- Blades - Brass
- Housing - Nylon
- Terminal Clamp - Zinc plated steel with black lacquer finish
- Terminal Screws - #5-40 Brass
|
| Type |
Plugs |
| UPC |
783585237411 |
Dimensions
| Dimensions |
1.17 in x 1.17 in x 2.45 in |
| Display Size |
Midget Locking |
| Height |
2.45 in |
| Length |
1.17 in |
| Weight |
0.05 lb |
| Width |
1.17 in |
Electrical Ratings
| Amperage Rating |
15 A |
| Connectivity |
Pressure Terminal Screws |
| Current / Amperage Rating |
15 A |
| Current Rating |
15 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
125/250 V |
| Voltage Rating Description |
125/250 V |
Conductor Related
| Cable Range |
0.300 - 0.430 in |
| Number Of Poles |
3-Pole |
| Number Of Wires |
3-Wire |
| Wire Size |
#18 AWG to #14 AWG |
Operational
| Operating Temperature
|
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accomodation - #18 AWG - #14 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
Configuration
| Cord Type |
All Listed Portables
|
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
6000 |
PRODUCT DATASHEET
Wiring HBL7485 Specification Sheet
