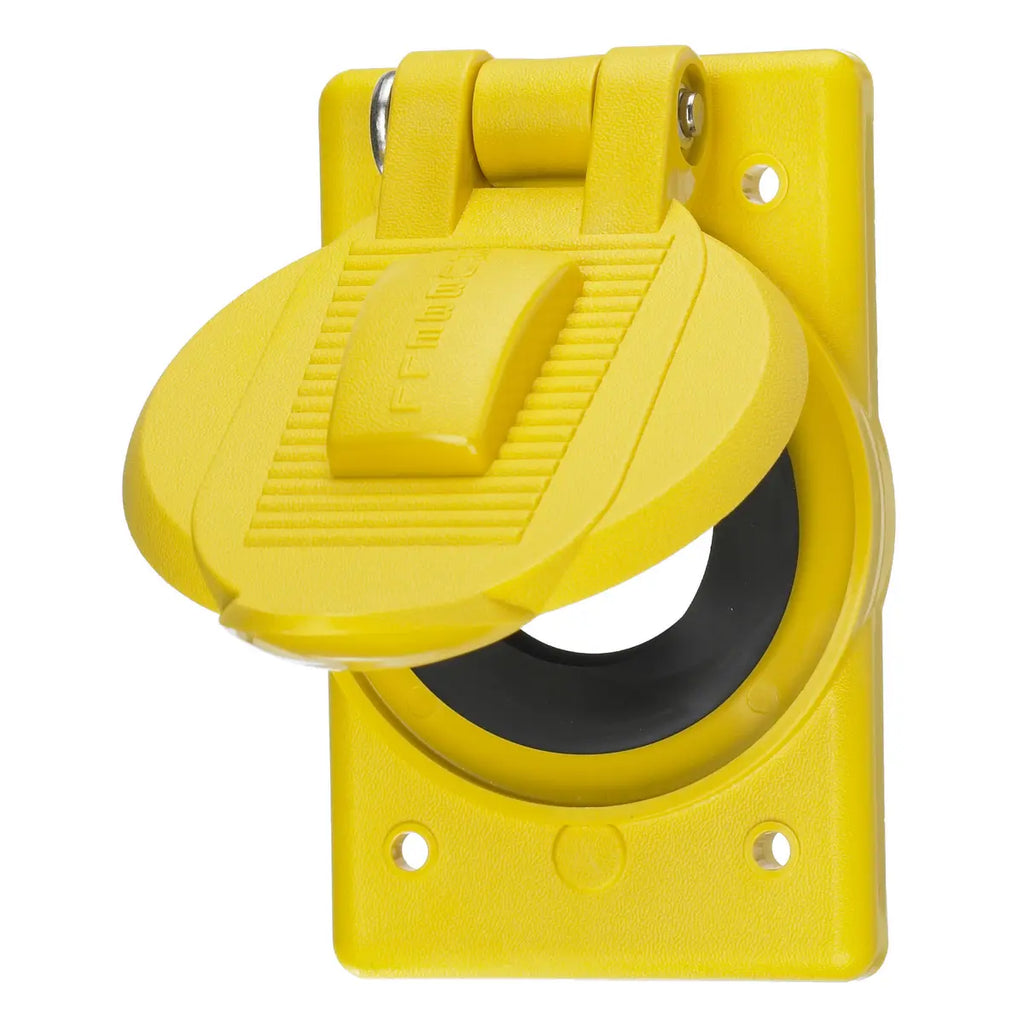

HBL74CM23WO - Hubbell Wiring Device Kellems Weatherproof Cover 1 Gang 1.40" Opening Yellow Polycarbonate
Twist-Lock(R) Devices, Weatherproof Covers, Accessories, Yellow polycarbonate for FS/FD box mounting, corrosion resistant
Weatherproof in Open Position with Device Mated
GENERAL SPECIFICATIONS
| Application |
1.40" Opening |
| Catalog Number |
HBL74CM23WO |
| Color |
Yellow |
| Construction |
Molded |
| EU RoHS Indicator |
Yes |
| Item Type |
Weatherproofing Covers |
| Knockouts |
None |
| Material |
Thermoplastic |
| Material - Mounting Hardware |
Vertical FS/FD Mount- Mounting Screws |
| Number of Gang(s) |
1-Gang |
| Number Of Outlets |
1-Device |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
-40 degC to 85 degC |
| Series |
Accessory |
| Specifications |
- Gasket - Neoprene
- Hinge Pin - Stainless steel
- Material - Thermoplastic
- Spring - Stainless steel
|
| Style |
For receptacles with Face Diameter 1.36-1.39 in. |
| Type |
Covers |
| UPC |
783585809403 |
Dimensions
| Dimensions |
4.56 in x 2.84 in x 1.09 in |
| Display Size |
1-Gang |
| Height |
1.09 in |
| Length |
4.56 in |
| Weight |
0.2 lb |
| Width |
2.84 in |
Operations
| Operating Temperature |
-40 degC to 85 degC |
Configuration
| Knockouts |
None |
| Number of Gang(s) |
1-Gang |
| Number Of Outlets |
1-Device |
Logistics
PRODUCT DATASHEET
Wiring HBL74CM23WO Specification Sheet
