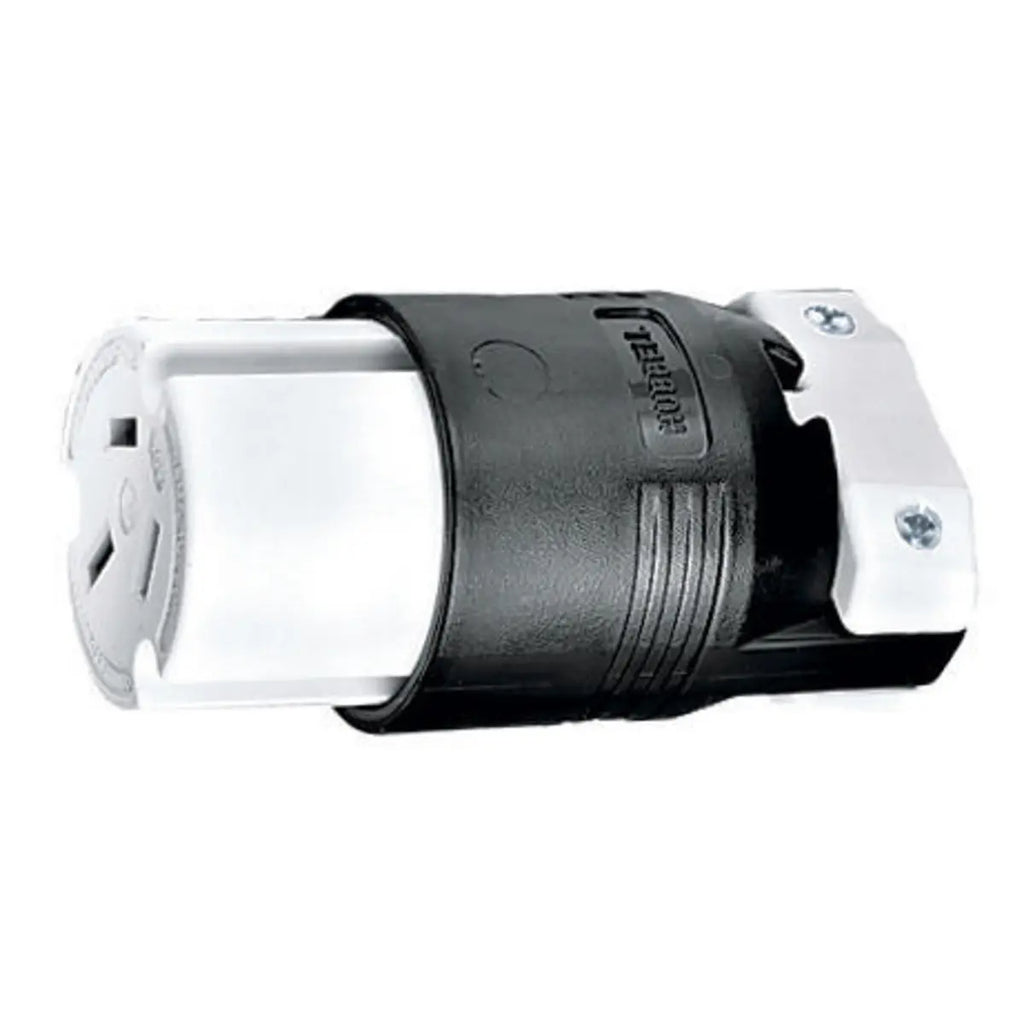

HBL7515C - Hubbell Wiring Device Kellems 50A 125/250V 3 Pole 3 Wire Non Grounding Female Connector Body Straight Blade Devices
Straight Blade Devices, Female Connector Body, Heavy Duty, Industrial/Commercial Grade, Straight, 3-Pole 3-Wire Non Grounding, 50A 125/250V, 10-50R, Black, Single Pack.
- Catalog number, ratings and certifications molded in face
- Gripping ribs provide secure gripping area
- Supertough nylon housing
Standard Product
GENERAL SPECIFICATIONS
| Application |
Industrial/Commercial |
| Catalog Number |
HBL7515C |
| Color |
Black |
| Cord Range |
0.625"-1.218" |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Horsepower - Maximum |
3 |
| Insulation |
Insulated Body |
| Item Type |
Insulgrip |
| Material |
Composite |
| Material - Mounting Hardware |
Cord Mounted |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 HB
- Environmental - IP Suitability - IP20
- Environmental - Operating Temperatures - Maximum continuous 75 degC, minimum -40 degC (w/o impact)
- Mechanical - Product Identification - Ratings are a permanent part of the device
- Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
| Series |
Extra Heavy Duty |
| Specifications |
- Blade Holder - Reinforced Thermoplastic Polyester
- Blades - Brass
- Box Terminals - Copper Alloy
- Cord Clamps - Reinforced Thermoplastic Polyester
- Housing - Supertough Nylon
|
| Style |
Non-Grounding |
| Temperature Rating |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Type |
Connector Body |
| UPC |
783585015118 |
Dimensions
| Dimensions |
5.75 in x 2.88 in x 2.88 in |
| Display Size |
Standard |
| Height |
2.88 in |
| Length |
5.75 in |
| Weight |
1 lb |
| Width |
2.88 in |
Electrical Ratings
| Amperage Rating |
50 A |
| Connectivity |
Screw Terminals |
| Current / Amperage Rating |
50 A |
| Current Rating |
50 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Voltage Rating |
125/250 V |
| Voltage Rating Description |
125/250 V |
Conductor Related
| Conductor Range |
#10 AWG |
| Number of Conductors |
3-Wire Non-Grounding |
| Number Of Poles |
3-Pole |
| Number Of Wires |
3-Wire |
| Wire Size |
#12 AWG to #4 AWG |
Operational
| Horsepower - Maximum
|
3 |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 HB
- Environmental - IP Suitability - IP20
- Environmental - Operating Temperatures - Maximum continuous 75 degC, minimum -40 degC (w/o impact)
- Mechanical - Product Identification - Ratings are a permanent part of the device
- Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
| Temperature Rating |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
910 |
PRODUCT DATASHEET
Wiring HBL7515C Specification Sheet
