HBL7545C - Hubbell Wiring Device Kellems 15A 125V 2 Pole 2 Wire Non Grounding Male Plug Midget Twist Lock(R)

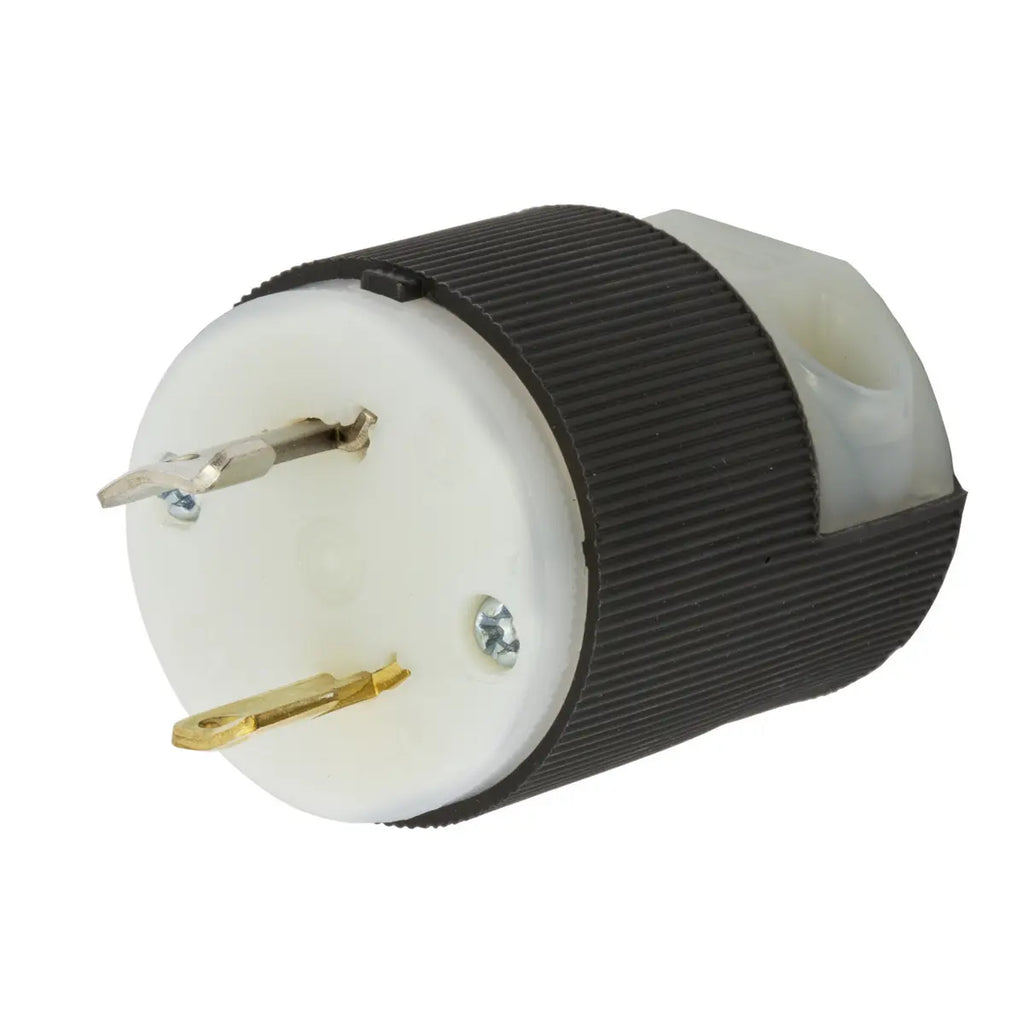

Locking Devices, Midget Twist-Lock(R), Industrial, Male Plug, 15A 125V, 2-Pole 2-Wire Non Grounding, L1-15P, Screw Terminal, Black and White.
- Ribbed nylon housing provides secure, impact and chemical resistant grip
- Superior cord grip design protects terminations from excess strain
- Integral VARI-SIZE insert accomodates a wide range of cord diameters (.22 to .72 in.)
Weather protective covering
GENERAL SPECIFICATIONS
| Catalog Number |
HBL7545C |
| Color |
Black, White |
| Cord Range |
0.230"-0.720"(5.8-18.3) |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Horsepower - Maximum |
0.5 |
| Item Type |
Plug |
| Material |
Composite |
| Material - Mounting Hardware |
Cord Mounted |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC, Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #18 AWG - #10 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Specifications |
- Assembly Screws - Steel - nickel plated
- Blades - Brass
- Housing / Cord Clamp - Nylon
- Terminal Clamp - Cold rolled steel - nickel plated
- Terminal Retainer - Clear polycarbonate
- Terminal Screws - #8-32 Brass (Phillips / Slotted / Robertson)
|
| Type |
Plugs |
| UPC |
783585178509 |
Dimensions
| Dimensions |
1.96 in x 1.52 in x 1.52 in |
| Display Size |
Standard Sized |
| Height |
1.52 in |
| Length |
1.96 in |
| Weight |
0.15 lb |
| Width |
1.52 in |
Electrical Ratings
| Amperage Rating |
15 A |
| Connectivity |
Pressure Terminal Screws |
| Current / Amperage Rating |
15 A |
| Current Rating |
15 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
125 V |
| Voltage Rating Description |
125 V |
Conductor Related
| Cable Range |
0.230 - 0.720 in |
| Number Of Poles |
2-Pole |
| Number Of Wires |
3-Wire |
| Wire Size |
#14 AWG to #12 AWG |
Operational
| Horsepower - Maximum |
0.5 |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC, Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #18 AWG - #10 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
Configuration
| Cord Type
|
All Listed Portables |
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
3600 |
PRODUCT DATASHEET
Wiring HBL7545C Specification Sheet
