HBL7565C - Hubbell Wiring Device Kellems 10A 250V or 15A 125V 3 Pole 3 Wire Non Grounding Female Connector Body Twist Lock®
Roll over image to zoom in Click on image to zoom
HBL7565C - Hubbell Wiring Device Kellems 10A 250V or 15A 125V 3 Pole 3 Wire Non Grounding Female Connector Body Twist Lock®

HBL7565C - Hubbell Wiring Device Kellems 10A 250V or 15A 125V 3 Pole 3 Wire Non Grounding Female Connector Body Twist Lock®

HubbellSKU: HUBHBL7565C
Price:
$33.75
Stock:
Sold out

Description

HBL7565C - Hubbell Wiring Device Kellems 10A 250V or 15A 125V 3 Pole 3 Wire Non Grounding Female Connector Body Twist Lock®

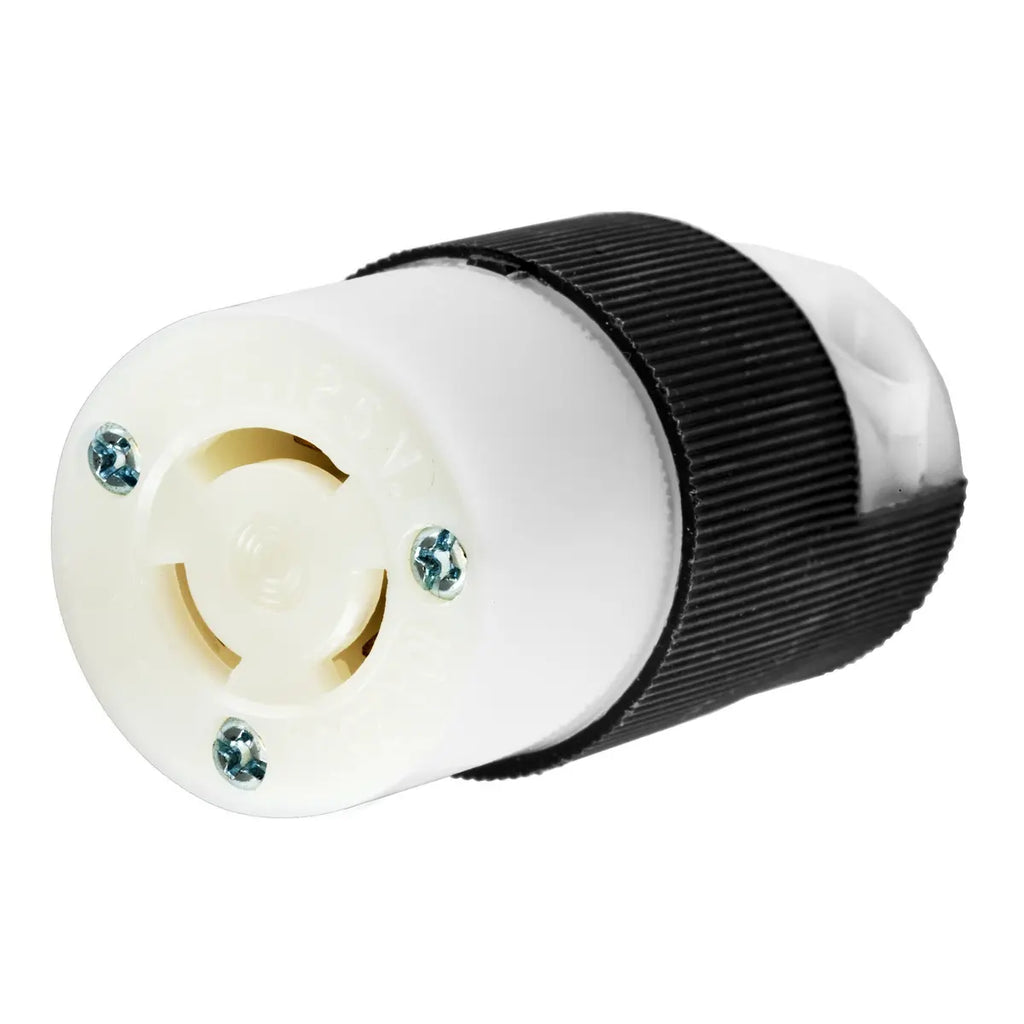

Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 10A 250V/15A 125V, 3-Pole 3-Wire Non Grounding, Non-NEMA, Screw Terminal, Black and White Nylon.

  • Ribbed nylon housing provides secure, impact and chemical resistant grip
  • Superior cord grip design protects terminations from excess strain
  • Integral VARI-SIZE insert accomodates a wide range of cord diameters

Standard Product

GENERAL SPECIFICATIONS

Catalog Number HBL7565C
Color Black, White
Cord Range 0.230"-0.720"(5.8-18.3)
Environmental Conditions Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator Yes
Insulation Insulated Body
Item Type 10A/15A Non-Grounding Insulgrip® Connector
Material Nylon
Material - Mounting Hardware Cord Mounted
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
  • Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #18 AWG - #10 AWG stranded copper wire only.
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Specifications
  • Assembly Screws - Steel - nickel plated
  • Contacts - Brass
  • Housing / Cord Clamp - Nylon
  • Terminal Clamp - Cold rolled steel – nickel plated
  • Terminal Retainer - Clear polycarbonate
  • Terminal Screws - #8-32 Brass (Phillips / Slotted / Robertson)
Temperature Rating Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type Connector Body
UPC 783585178608



Dimensions

Dimensions 1.53 in x 1.53 in x 2.78 in
Display Size Standard
Height 2.78 in
Length 1.53 in
Weight 0.2 lb
Width 1.53 in



Electrical Ratings

Amperage Rating 10/15 A
Connectivity Pressure Terminal Screws
Current / Amperage Rating 10/15 A
Current Rating 10 A
Dielectric Strength Withstands 2,000V minimum
Voltage Rating 250/125 V
Voltage Rating Description 250/125 V



Conductor Related

Cable Range 0.230 - 0.720 in
Number Of Poles 3-Pole
Number Of Wires 3-Wire
Wire Size #18 AWG to #10 AWG



Operational

Operating Temperature
Maximum continuous 75°C and minimum -40°C without impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
  • Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #18 AWG - #10 AWG stranded copper wire only.
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.

Logistics

Carton Quantity 10
Pallet Quantity 6600



PRODUCT DATASHEET

Wiring HBL7565C Specification Sheet
