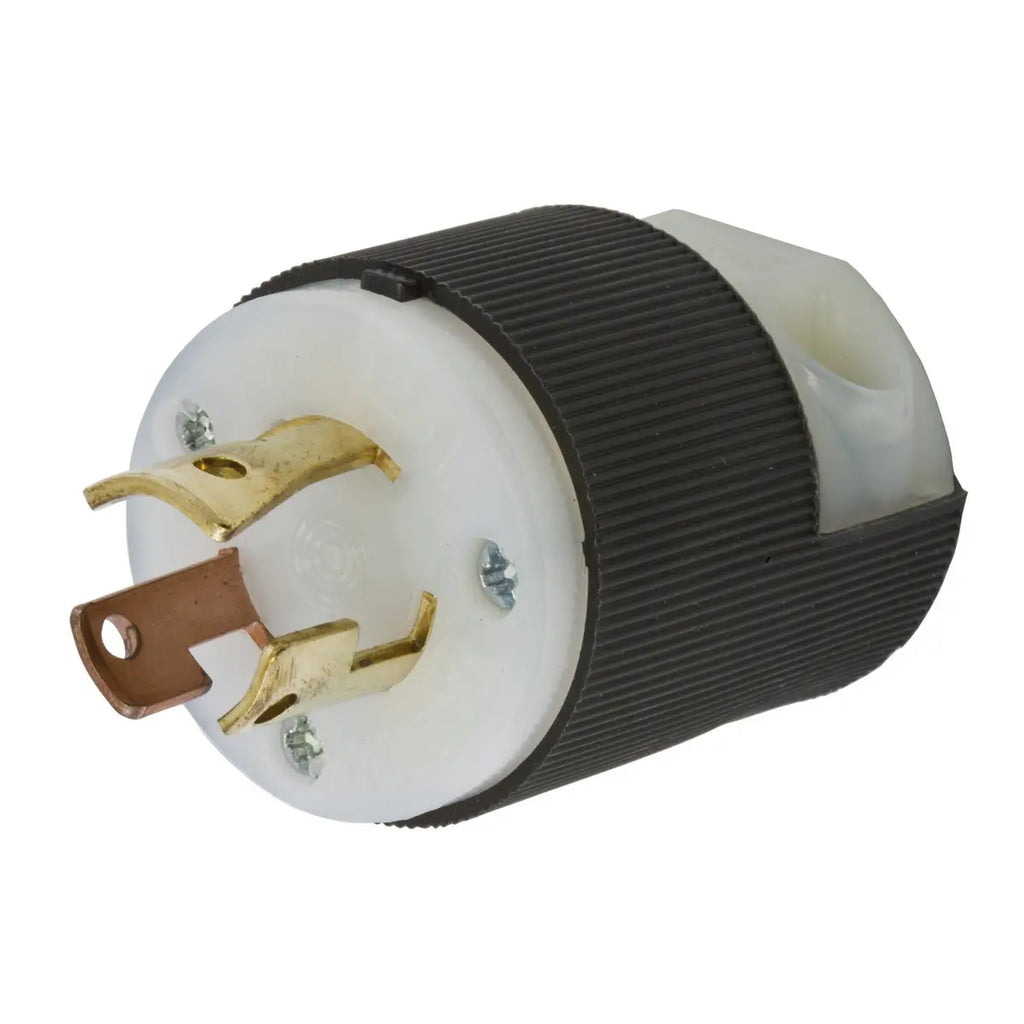

HBL7567C - Hubbell Wiring Device Kellems - 10A 250V or 15A 125V 3 Pole 3 Wire Non Grounding Male Plug Twist Lock
Locking Devices, Twist-Lock(R), Insulgrip(R) Plug, 10A, 250V/15A, 125V, 3 Pole, 3 Wire Non-Grounding, Non-NEMA, Multiple drive screws, Black and white nylon
- Individually molded face for each blade configuration keeps debris out of plug interior
- Ribbed nylon housing is impact and chemical resistant
- Roomy wiring chamber provides ample space for wiring
Standard Product
GENERAL SPECIFICATIONS
| Catalog Number |
HBL7567C |
| Color |
Black, White |
| Cord Range |
0.230"-0.720"(5.8-18.3) |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Item Type |
10A/15A Insulgrip(R) Plug |
| Listings |
- Fed.Spec. W-C-596
- CSA C22.2 No.42
|
| Material |
Nylon |
| Material - Mounting Hardware |
Cord Mounted |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical-Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Mechanical - Terminal Accommodation - #18 - #10 AWG stranded copper wire only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC
- Minimum -40 degC (w/o impact)
|
| Specifications |
- Blade/Contact Carrier - Natural (white) nylon
- Blades/Contacts - Brass
- Cord Clamp - Natural (white) nylon
- Grounding Screw - Brass (green finish)
- Housing - Black nylon
- Terminal Retainer - Clear polycarbonate
|
| UPC |
783585178752 |
Dimensions
| Dimensions |
1.53 in x 1.53 in x 1.97 in |
| Display Size |
Standard Sized |
| Height |
1.97in |
| Length |
1.53in |
| Weight |
0.15 lb |
| Width |
1.53in |
Electrical Ratings
| Amperage Rating |
10 A |
| Connectivity |
Screw Terminals |
| Current / Amperage Rating |
10 A |
| Current Rating |
10 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
250/125 V |
| Voltage Rating Description |
250/125 V |
Conductor Related
| Number Of Poles |
3-Pole |
| Number Of Wires |
3-Wire Non-Grounding |
| Wire Size |
#18 AWG to #10 AWG |
Operational
| Operating Temperature
|
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical-Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Mechanical - Terminal Accommodation - #18 - #10 AWG stranded copper wire only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC
- Minimum -40 degC (w/o impact)
|
Configuration
| Cord Type
|
All Listed Portables |
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
6600 |
PRODUCT DATASHEET
Wiring HBL7567C Specification Sheet
