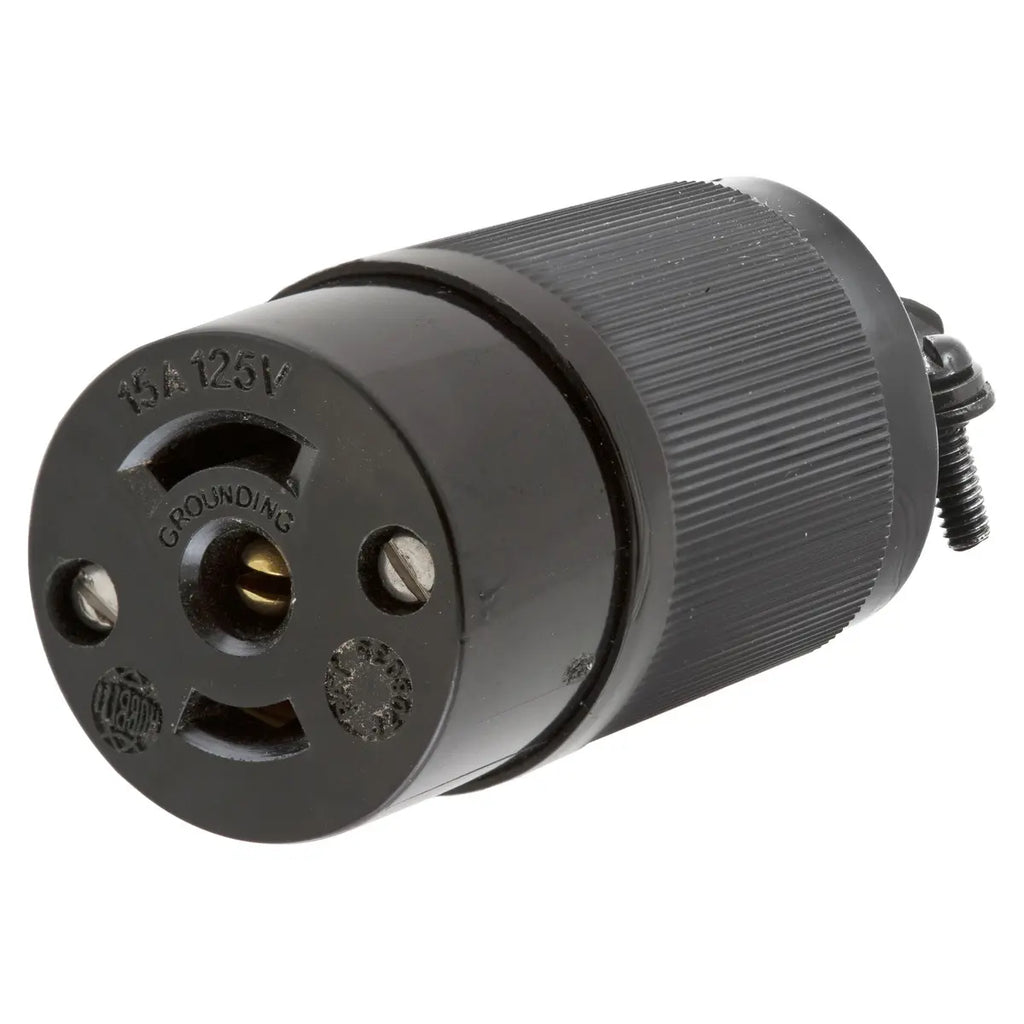

HBL7593 - Hubbell Wiring Device Kellems - 15A 125V 2 Pole 3 Wire Grounding Female Straight Connector Midget Twist Lock
Locking Devices, Midget Twist-Lock(R), Industrial, Female Straight Connector, 15A 125V AC, 2-Pole 3-Wire Grounding, NEMA ML-2R, Screw Terminal, Black.
- Abuse resistant nylon housing
- Phenolic body for high heat resistance
- Angled body design for low profile in tight spaces
Standard Product
GENERAL SPECIFICATIONS
| Catalog Number |
HBL7593 |
| Color |
Black |
| Cord Range |
0.281"-0.421"(7.1-10.7) |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Insulation |
Insulated Body |
| Item Type |
15A Midget Twist-Lock(R) Connector |
| Material |
Nylon |
| Material - Mounting Hardware |
Cord Mounted |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accomodation - #18 AWG - #14 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Specifications |
- Blades - Brass
- Contact Holder - Phenolic
- Housing - Nylon
- Terminal Clamp - Zinc plated steel with black lacquer finish
- Terminal Screws - #5-40 Brass
|
| Temperature Rating |
Maximum Continuous: 75 deg C; Minimum Continuous: -40 deg C w/o impact, -25 deg with impact. |
| Type |
Connector Body |
| UPC |
783585237749 |
Dimensions
| Dimensions |
1.17 in x 1.17 in x 2.42 in |
| Display Size |
Midget Locking |
| Height |
2.42 in
|
| Length |
1.17 in |
| Weight |
0.1 lb |
| Width |
1.17 in |
Electrical Ratings
| Amperage Rating |
15 A |
| Connectivity |
Pressure Terminal Screws |
| Current / Amperage Rating |
15 A |
| Current Rating |
15 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Voltage Rating |
125 V |
| Voltage Rating Description |
125 V |
Conductor Related
| Cable Range |
0.281 - 0.421 in |
| Conductor Range |
#14 AWG to #12 AWG |
| Number Of Poles |
2-Pole |
| Number Of Wires |
3-Wire |
| Wire Size |
#18 AWG to #14 AWG |
Operational
| Operating Temperature
|
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accomodation - #18 AWG - #14 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Temperature Rating |
Maximum Continuous: 75 deg C; Minimum Continuous: -40 deg C w/o impact, -25 deg with impact. |
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
6000 |
PRODUCT DATASHEET
Wiring HBL7593 Specification Sheet
