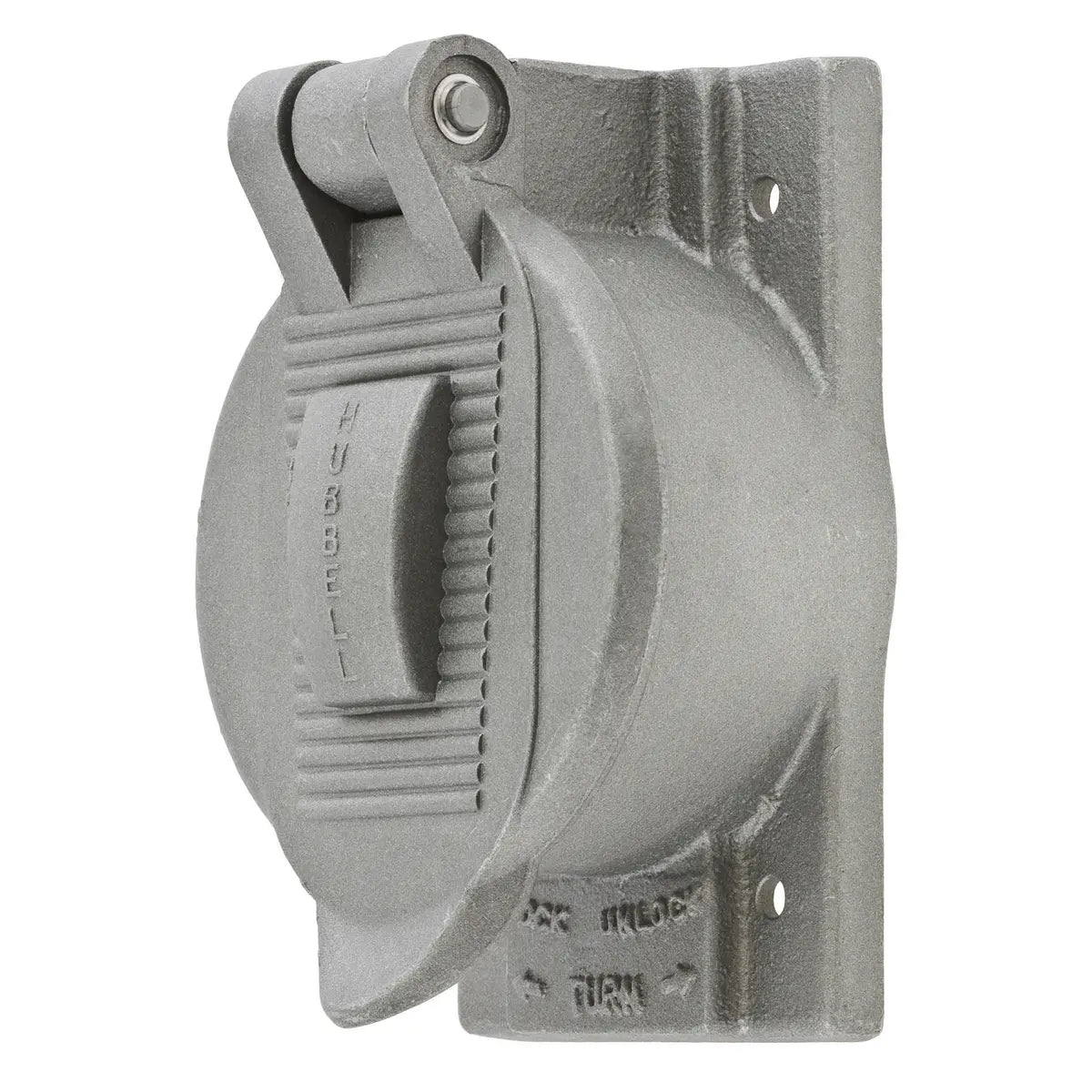

HBL7770 - Hubbell Wiring Device Kellems Weatherproof Cover 1 Gang 50A Twist Lock
Wallplates and Boxes, Weatherproof Covers, 1-Gang, 1) 50A Twist-Lock(R) Opening, Standard Size, Cast Aluminum
For use with 50A Twist-Lock(R) Single Receptacles
Standard Product
GENERAL SPECIFICATIONS
| Catalog Number |
HBL7770 |
| EU RoHS Indicator |
Yes |
| Material |
Aluminum, Cast |
| Material - Mounting Hardware |
Vertical FS/FD Mount - Mounting Screws |
| Number of Gang(s) |
1-Gang |
| Number Of Outlets |
1-Device |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Specifications |
- Gasket - Neoprene
- Material - Aluminum
- Rivet - Aluminum
- Spring - Stainless steel
|
| Style |
For 50A Twist-Lock(R) Single Receptacle |
| Type |
Covers |
| UPC |
783585809519 |
Dimensions
| Dimensions |
2.84 in x 2.18 in x 4.18 in |
| Height |
4.18 in |
| Length |
2.84 in |
| Weight |
0.75 lb |
| Width |
2.18 in |
Electrical Ratings
| Dielectric Strength |
Withstands 2,000V minimum |
Operational
| Operating Temperature
|
Maximum continuous 75 degC and minimum -40 degC without Impact |
Configuration
| Number of Gang(s)
|
1-Gang |
| Number Of Outlets |
1-Device |
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
810 |
PRODUCT DATASHEET
Wiring HBL7770 Specification Sheet
