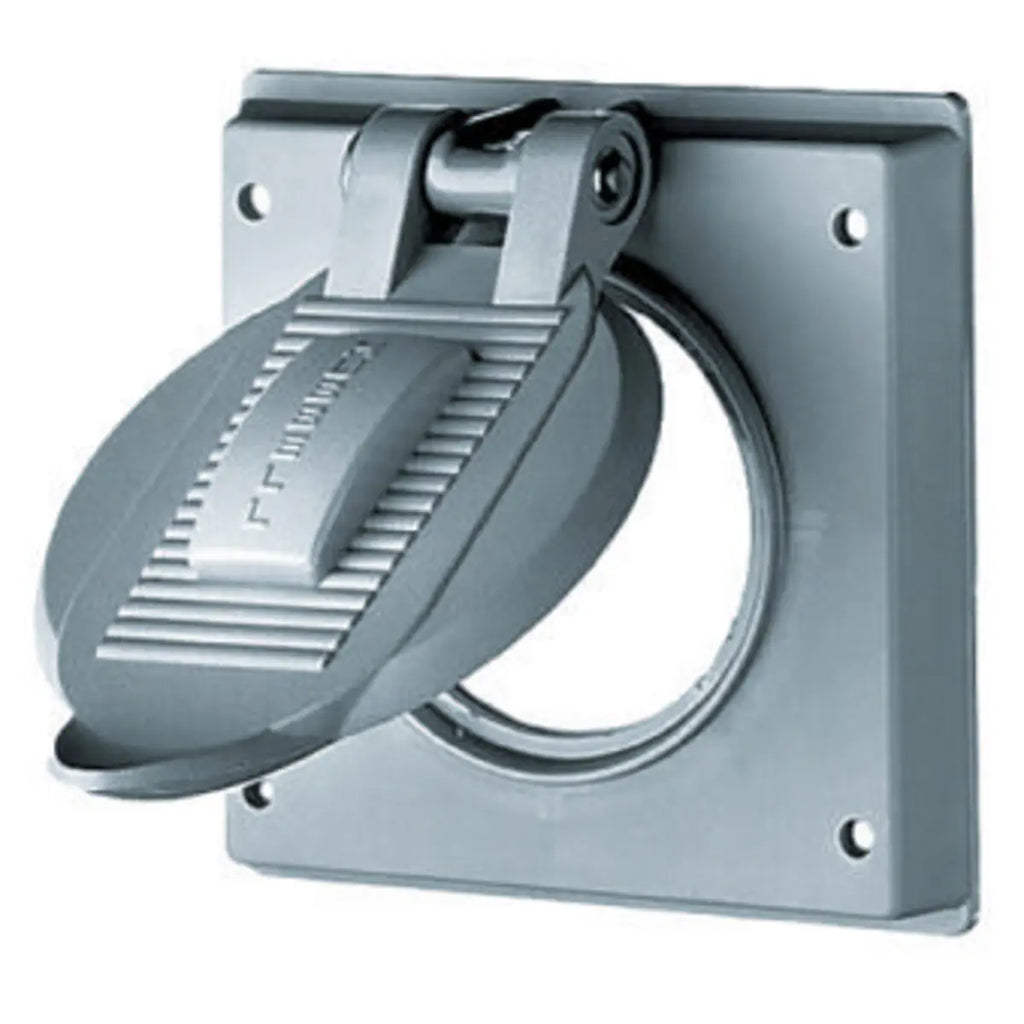

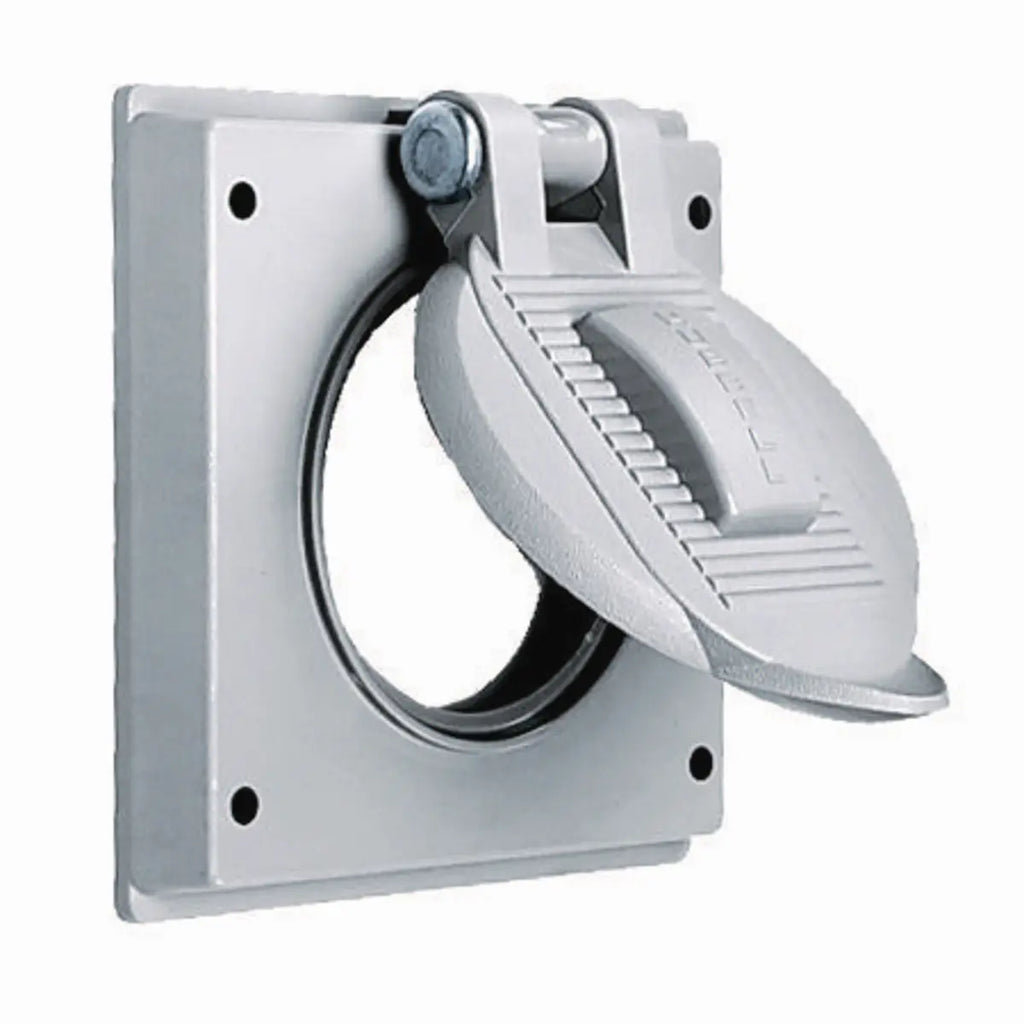

HBL7777A - Hubbell Wiring Device Kellems - 2.44" 2 Gang Weatherproof Cover
Wallplates and Boxes, Weatherproof Covers, 2-Gang, 1) 2.44" Opening, Standard Size, Gray Polycarbonate.
- 2-Gang
- 1) 2.44" Opening
- Standard Size
Standard Product
GENERAL SPECIFICATIONS
| Catalog Number |
HBL7777A |
| Color |
Gray |
| Construction |
Molded |
| EU RoHS Indicator |
Yes |
| Item Type |
Weatherproofing Covers |
| Knockouts |
None |
| Material |
Thermoplastic |
| Material - Mounting Hardware |
Vertical FS/FD Mount - Mounting Screws |
| Number of Gang(s) |
2-Gang |
| Number of Outlets |
1-Device |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Series |
Accessory |
| Specifications |
- Gasket - Neoprene
- Material - Thermoplastic
- Mounting Screws - Stainless steel
- Spring - Stainless steel
|
| Style |
For Receptacles with Face Diameter of 2.28-2.44 in. |
| Type |
Covers |
| UPC |
783585809540 |
Dimensions
| Dimensions |
4.56 in x 4.62 in x 1.31 in |
| Display Size |
2-Gang |
| Height |
1.31 in |
| Length |
4.56 in |
| Weight |
0.35 lb |
| Width |
4.62 in |
Configuration
| Knockouts |
None |
| Number of Gang(s) |
2-Gang |
| Number Of Outlets |
1-Device |
Logistics
| Carton Quantity |
20 |
| Pallet Quantity |
1100 |
PRODUCT DATASHEET
Wiring HBL7777A Specification Sheet
