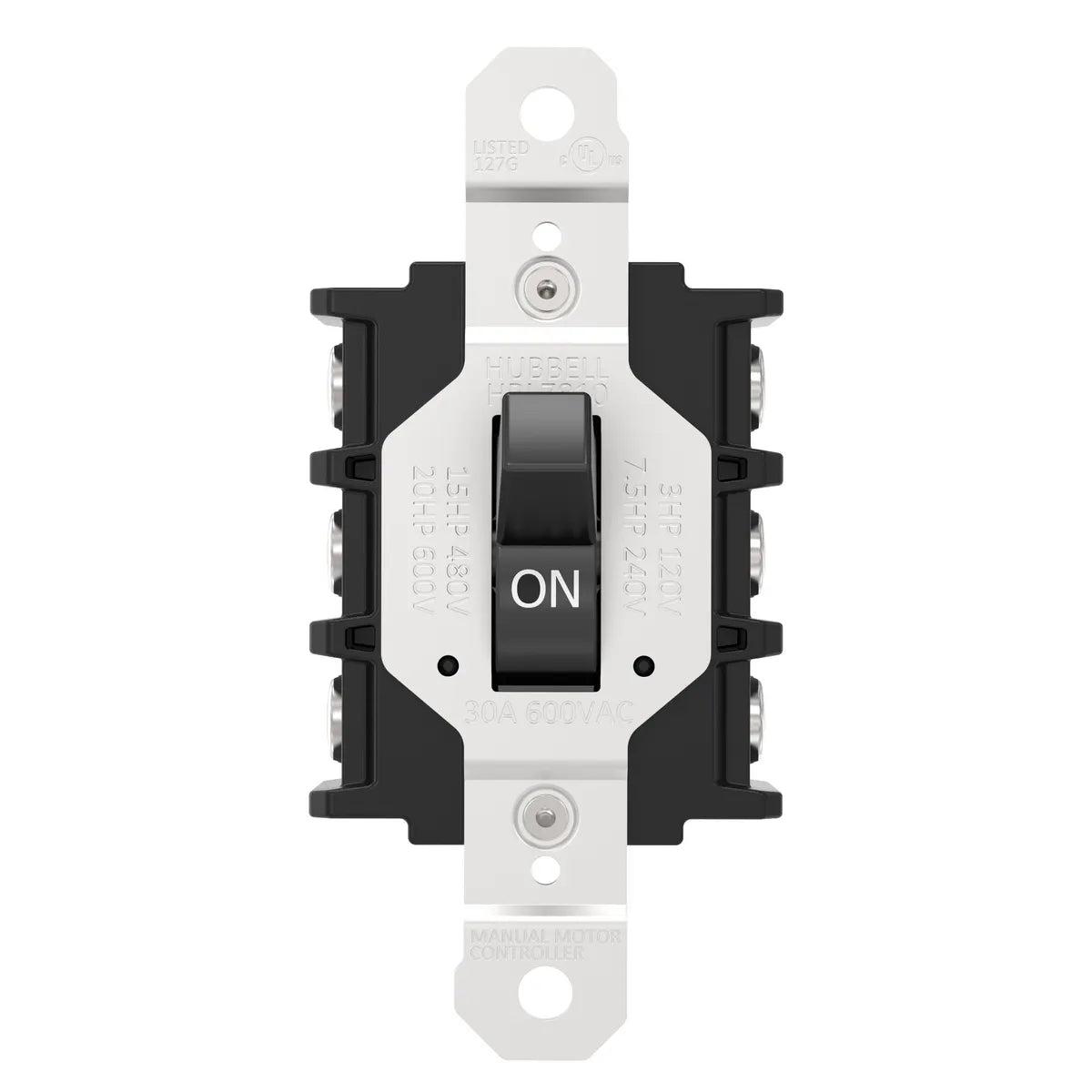

HBL7810 - Hubbell Wiring Device Kellems 30A 600V AC 3 Pole Manual Motor Controller Disconnect

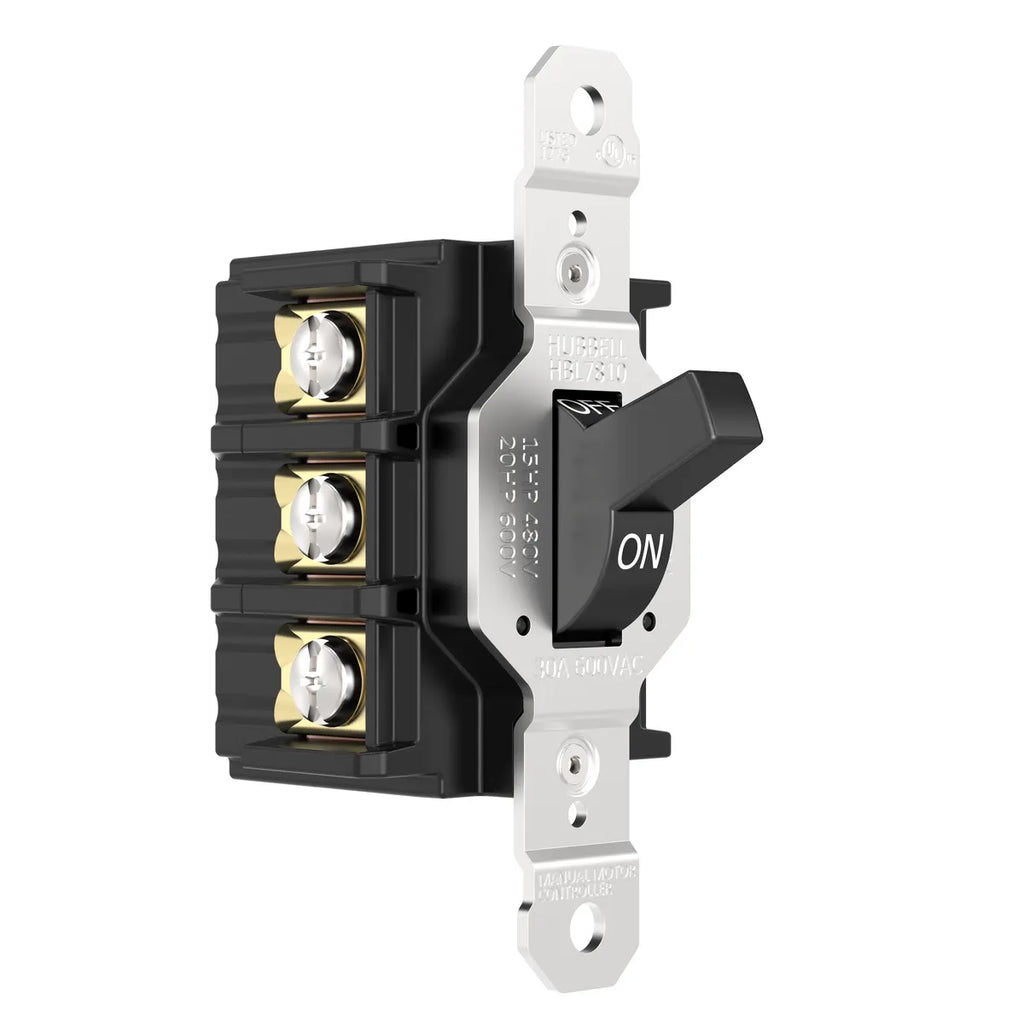

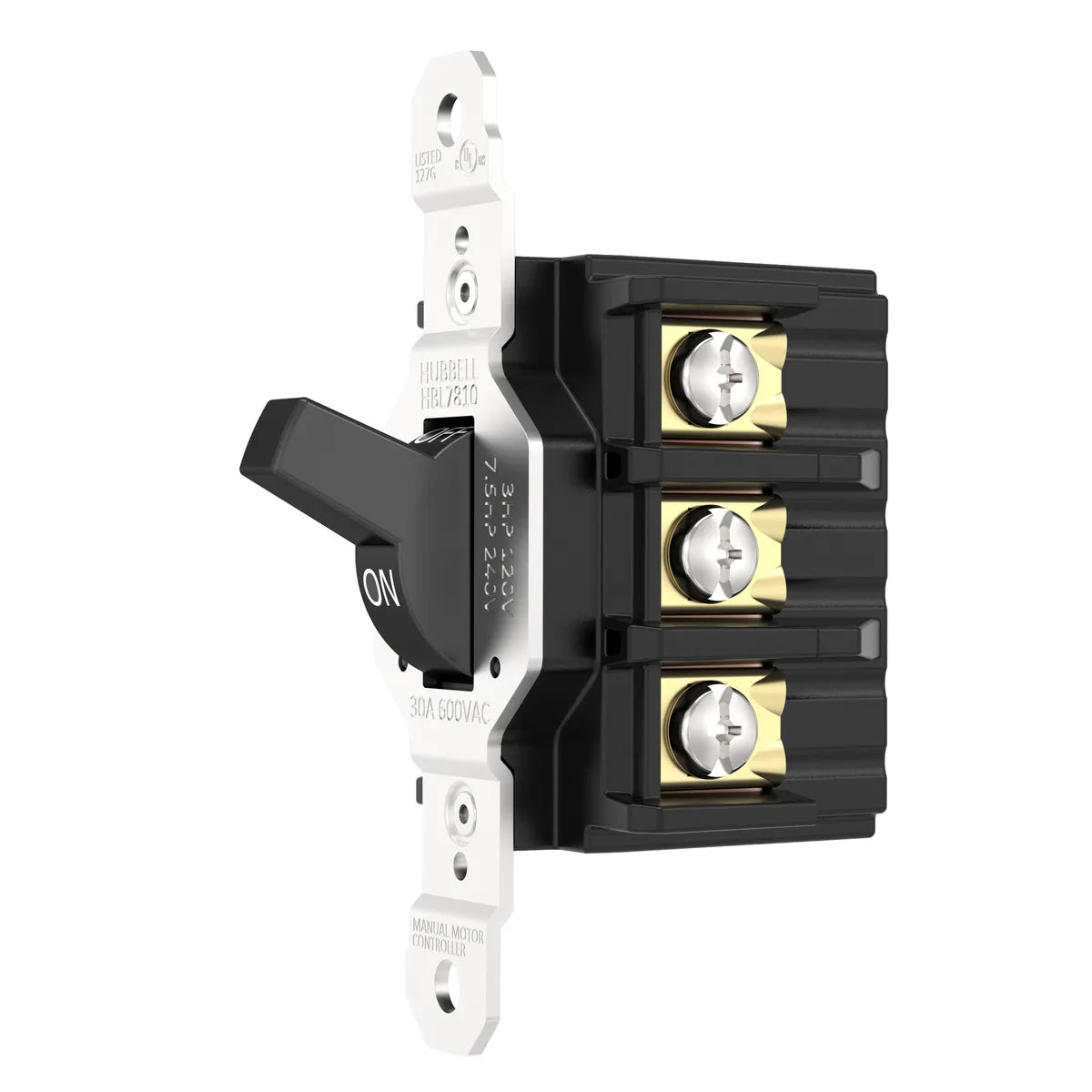

Circuit-Lock(R) Manual Toggle Controller/Motor Disconnect Switch, 3-pole 30A 600V AC, Back and Side Wired
- Thermoset body provides high resistance to electrical arc tracking
- Strong ON/OFF action with quick-make, slow break operation
- Optional Side Finger Guards for close wall applications and finger safe environments
- Four large silver alloy contacts per pole has excellent conductivity with maximum longevity
- Lubrication-free controller with continued ON/OFF cycling even in harsh, dust and high heat environments
Produit standard
GENERAL SPECIFICATIONS
| Catalog Number |
HBL7810 |
| EU RoHS Indicator |
Yes |
| Horsepower - Maximum |
20 |
| Item Type |
Standard Toggle |
| Load Capacity |
Inductive |
| Material |
Stainless Steel |
| Material - Mounting Hardware |
Screw Mounting |
| Operating Cycles |
10,000 Cycles Minimum |
| Performance |
- Electrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute
- Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load
- Electrical - Max. Working Voltage - 600V AC RMS
- Environmental - Flammability - UL94HB/VO
- Environmental - Operating Temperature - Max. 75 degC,Min. -40 degC continuous w/o impact
- Mechanical - Mechanical Life - Min. 10,000 minimum cycles
- Mechanical - Switch Rating - 25 inch pounds
- Mechanical - Terminal Accommodations - #10 AWG Max
- Mechanical - Terminal Torque - 20 inch pounds
- Mechanical - Wire Type - Solid and stranded copper wire only
|
| Series |
Standard Toggle |
| Specifications |
Enclosure Material - Nylon |
| UPC |
783585680507 |
Dimensions
| Display Size |
Standard Sized Product |
| Weight |
0.55 lb |
Electrical Ratings
| Amperage Rating |
30A |
| Connectivity |

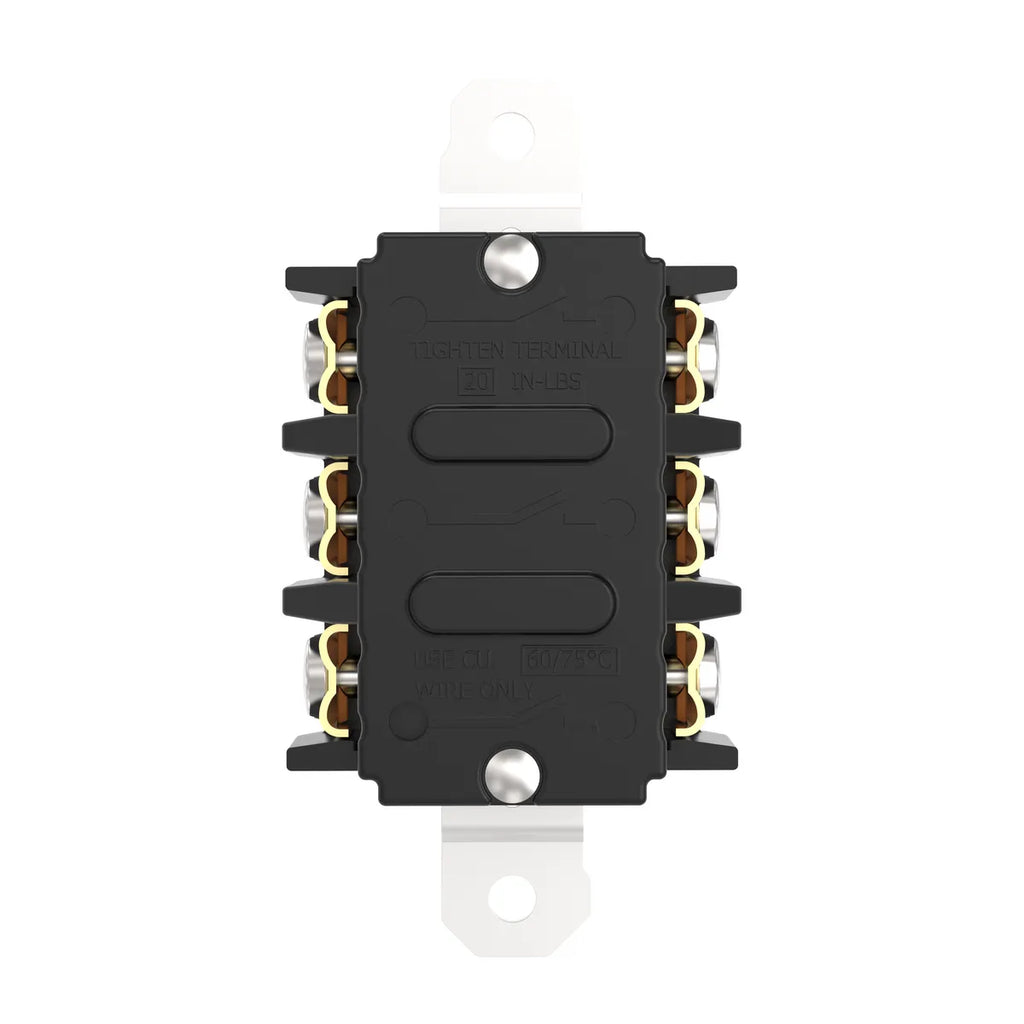

Back and Side Wired |
| Current / Amperage Rating |
30A |
| Current Rating |
30A |
| Dielectric Strength |
2,200V AC minimum for 1 minute |
| Phase |
Three Phase |
| Voltage Rating |
600 VAC |
| Voltage Rating Description |
600 VAC |
| Wattage |
18000 W |
Conductor Related
Force Related
Operational
| Horsepower - Maximum |
20 |
| Operating Cycles |
10,000 Cycles Minimum |
| Performance |
- Electrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute
- Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load
- Electrical - Max. Working Voltage - 600V AC RMS
- Environmental - Flammability - UL94HB/VO
- Environmental - Operating Temperature - Max. 75 degC,Min. -40 degC continuous w/o impact
- Mechanical - Mechanical Life - Min. 10,000 minimum cycles
- Mechanical - Switch Rating - 25 inch pounds
- Mechanical - Terminal Accommodations - #10 AWG Max
- Mechanical - Terminal Torque - 20 inch pounds
- Mechanical - Wire Type - Solid and stranded copper wire only
|
Logistics
| Carton Quantity |
40 |
| Pallet Quantity |
3600 |
