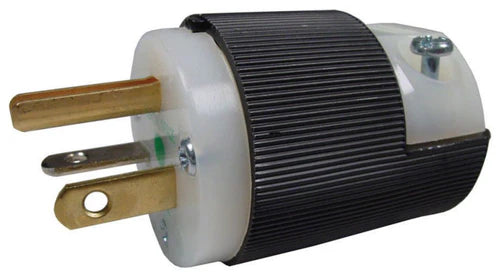

HBL8315C - Hubbell Wiring Device-Kellems 20A 125V 2 Pole 3 Wire Plug Straight Blade Devices
Straight Blade Devices, Male Plug, Insulgrip, Hospital Grade, Straight, 2-Pole 3-Wire Grounding, 20A 125V, 5-20P, Black and White, Single Pack.
- Beveled housing prevents snagging
- Powerful, offsetting cord grips clamp on individual conductors
GENERAL SPECIFICATION
| Catalog Number |
HBL8315C |
| Color |
Black and White |
| Cord Range |
0.230"-0.720" (5.8-18.3) |
| EU RoHS Indicator |
Contact Manufacturer |
| Item Type |
Insulgrip Plug |
| Material |
Nylon |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Specifications |
- Assembly Screws - Plated steel
- Blades - .06" (1.5) Brass
- Cord Clamp - Nylon
- Housing - Nylon
- Terminal Clamp - Plated steel
- Terminal Retainer - PBT
- Terminal Screws - Brass
|
| Style |
Insulgrip |
| Type |
Plug |
| UPC |
783585179957 |
Dimensions
| Dimensions |
1.97 in x 1.53 in x 1.53 in |
| Height |
1.53 in |
| Length |
1.97 in |
| Weight |
0.15 lb |
| Width |
1.53 in |
Electrical Ratings
| Amperage Rating |
20 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Voltage Rating |
125 V |
Conductor Related
| Number Of Wires |
3-Wire |
| Wire Size |
#18 AWG to #10 AWG |
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
6600 |
