Description

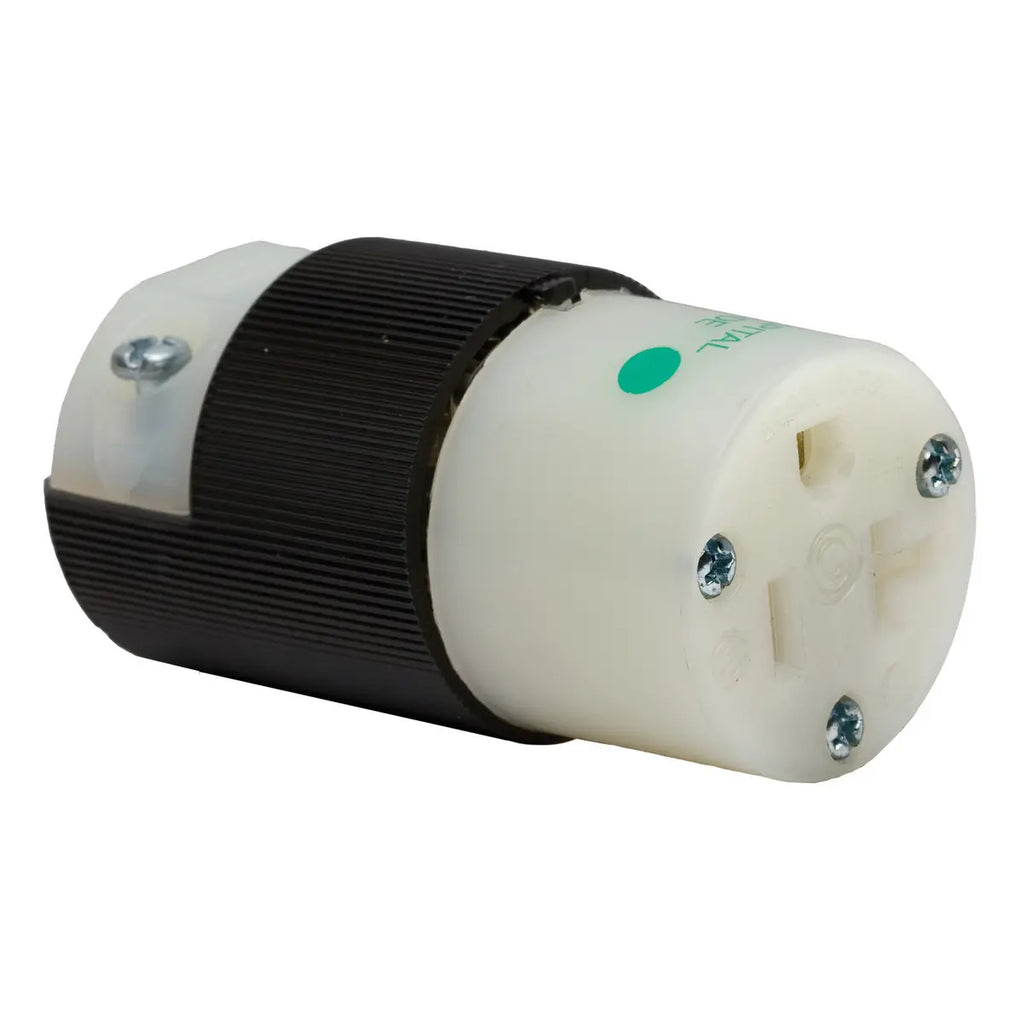

HBL8319C - Hubbell Wiring Device-Kellems 20A 125V 2 Pole 3 Wire Connector Body Straight Blade Devices
Straight Blade Devices, Female Connector Body, Insulgrip, Hospital Grade, Straight, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Black and White, Single Pack.
- Beveled housing prevents snagging
- Powerful, offsetting cord grips clamp on individual conductors
GENERAL SPECIFICATIONS
| Catalog Number | HBL8319C |
| Color | Black and White |
| Cord Range | 0.230"-0.720" (5.8-18.3) |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator | Yes |
| Horsepower - Maximum | 1 |
| Insulation | Insulated Body |
| Item Type | Insulgrip Connector |
| Material | Nylon |
| Material - Mounting Hardware | Cord Mounted |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
| Series | Hospital Grade |
| Specifications |
|
| Style | Insulgrip |
| Type | Connector Body |
| UPC | 783585180502 |
Dimensions
| Dimensions | 2.78 in x 1.53 in x 1.53 in |
| Display Size | Standard |
| Height | 1.53 in |
| Length | 2.78 in |
| Weight | 0.2 lb |
| Width | 1.53 in |
Electrical Ratings
| Amperage Rating | 20 A |
| Connectivity | Screw Terminals |
| Current / Amperage Rating | 20 A |
| Current Rating | 20 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Voltage Rating | 125 V |
| Voltage Rating Description | 125 V |
Conductor Related
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-Wire |
| Wire Size | #18 AWG to #10 AWG |
Operational
| Horsepower - Maximum | 1 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
| Temperature Rating | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
Logistics
| Carton Quantity | 10 |
| Pallet Quantity | 3600 |
