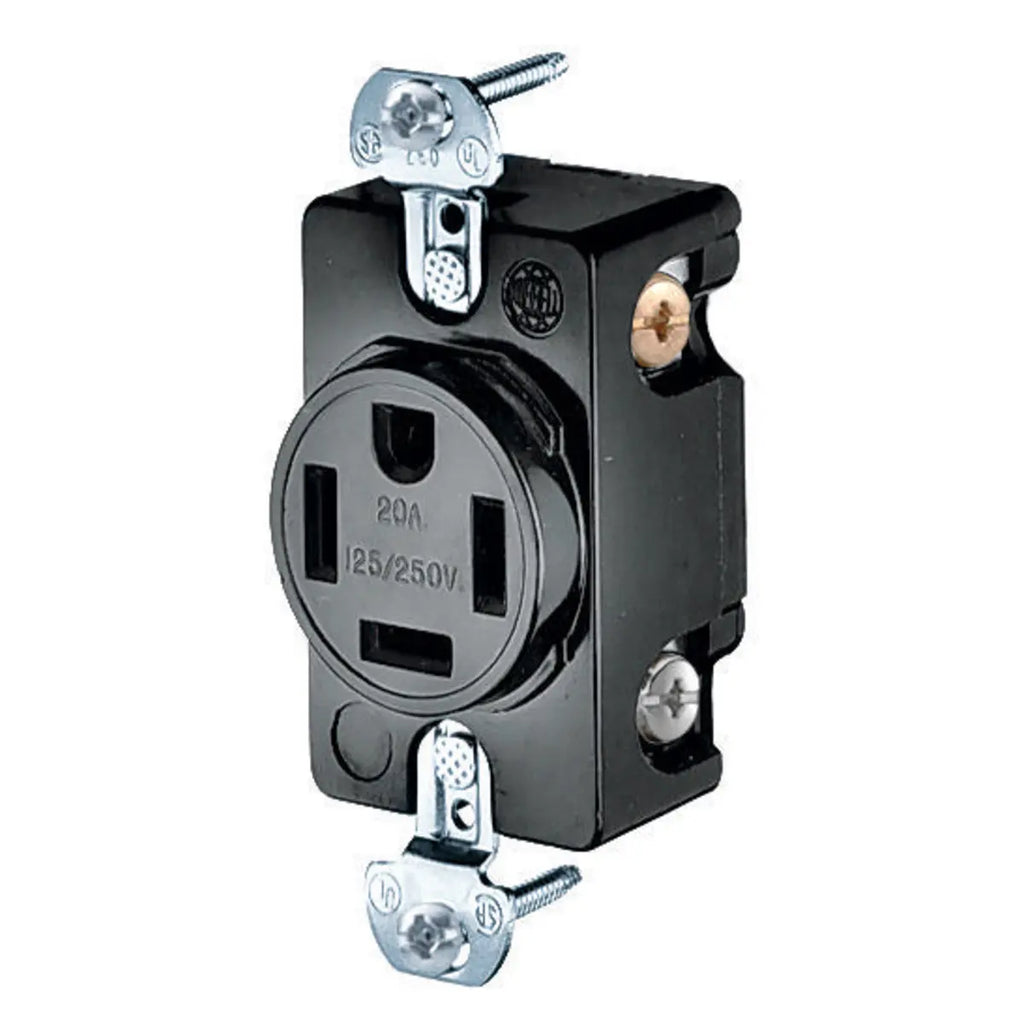

HBL8410 - Hubbell Wiring Device-Kellems 20A 125/250V 3 Pole 4 Wire Receptacle Straight Blade Devices
Straight Blade Devices, Receptacles, Flush Receptacle, Industrial Grade, 3-Pole 4-Wire Grounding, 20A 125/250V, 14-20R, Black, Single Pack.
- Industrial Heavy Duty Receptacle
- Deep body design
- Impact resistant
Self Grounding
GENERAL SPECIFICATIONS
| Catalog Number |
HBL8410 |
| Color |
Black |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Horsepower - Maximum |
2 (1) |
| Item Type |
Single |
| Material - Mounting Hardware |
Screw Mounting |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 V-2
- Environmental - IP Suitability - IP20
- Environmental - Operating Temperatures - Maximum continuous 75 degC minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
| Series |
Extra Heavy Duty |
| Specifications |
- Base - PBT
- Body - Nylon
- Contacts - Brass
- Ground Contact Assembly - Brass
- Mounting Plate - Steel
- Mounting Screws - Plated steel
- Terminal Clamp - Nickel plated steel
- Terminal Screws - Brass
|
| Style |
Grounding |
| Type |
Receptacle |
| UPC |
783585015705 |
Dimensions
| Dimensions |
2.44 in x 1.5 in x 1.24 in |
| Display Size |
Standard Sized Product |
| Height |
1.24 in |
| Length |
2.44 in |
| Weight |
0.25 lb |
| Width |
1.5 in |
Electrical Ratings
| Amperage Rating |
20 A |
| Connectivity |
Back and Side Wired Screw Terminals |
| Current / Amperage Rating |
20 A |
| Current Rating |
20 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
125/250 V |
| Voltage Rating Description |
125/250 V |
| Wattage |
5000 W |
Conductor Related
| Number Of Poles |
3-Pole |
| Number Of Wires |
4-Wire |
| Wire Size |
#14 AWG to #10 AWG |
Operational
| Horsepower - Maximum |
2 (1)
|
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 V-2
- Environmental - IP Suitability - IP20
- Environmental - Operating Temperatures - Maximum continuous 75 degC minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
Logistics
PRODUCT DATASHEET
Wiring HBL8410 Specification Sheet
