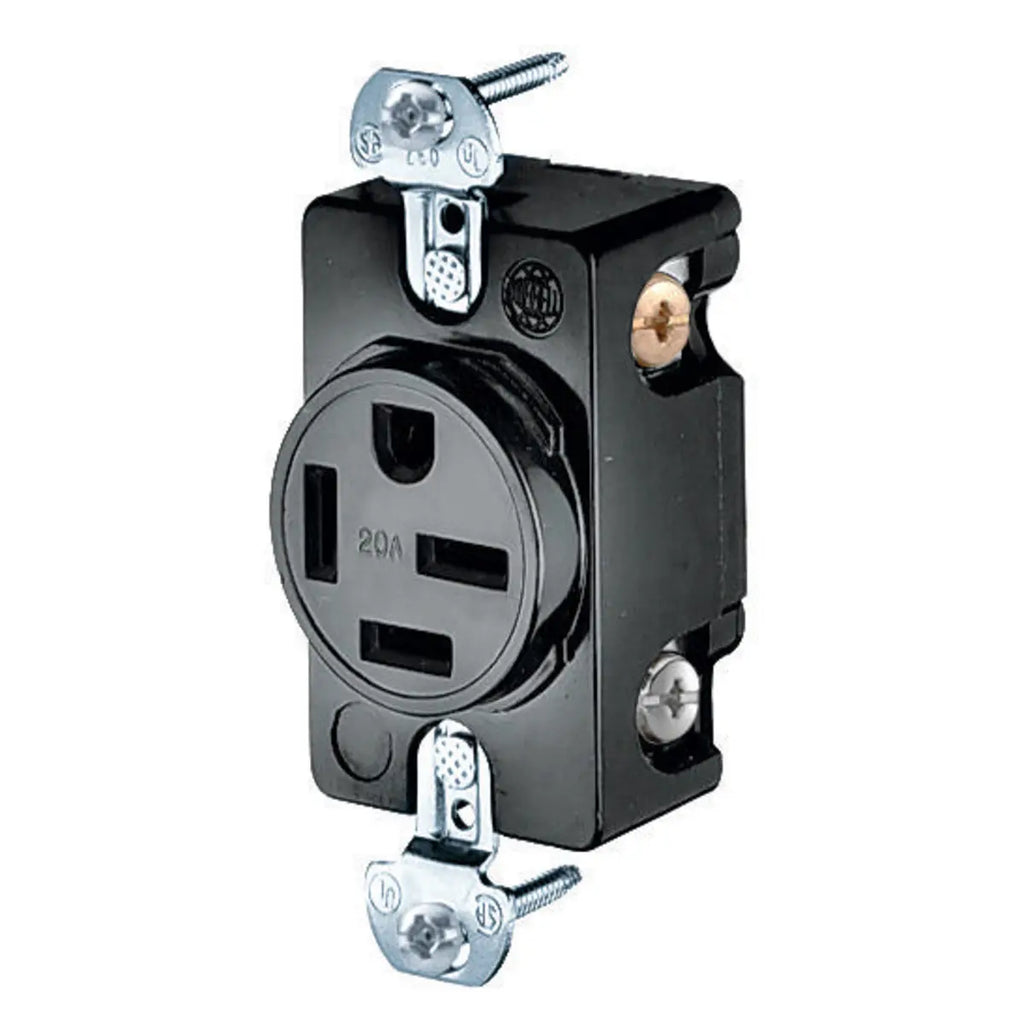

HBL8420 - Hubbell Wiring Device-Kellems 20A 250V 3 Pole 4 Wire Receptacle Straight Blade Devices
Roll over image to zoom in Click on image to zoom
HBL8420 - Hubbell Wiring Device-Kellems 20A 250V 3 Pole 4 Wire Receptacle Straight Blade Devices

HBL8420 - Hubbell Wiring Device-Kellems 20A 250V 3 Pole 4 Wire Receptacle Straight Blade Devices

HubbellSKU: HUBHBL8420
Price:
$69.29
Stock:
Sold out

Description

HBL8420 - Hubbell Wiring Device-Kellems 20A 250V 3 Pole 4 Wire Receptacle Straight Blade Devices

Straight Blade Devices, Receptacles, Flush Receptacle, Industrial Grade, 3-Pole 4-Wire Grounding, 20A 3 Phase 250V AC, 15-20R, Black, Single Pack.

  • Industrial Heavy Duty Receptacle
  • Deep body design
  • Impact resistant

Standard

GENERAL SPECIFICATIONS

Application Heavy Duty
Catalog Number HBL8420
Color Black
Environmental Conditions Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator Yes
Horsepower - Maximum 2 (1)
Item Type Single
Material Nylon
Material - Mounting Hardware Screw Mounting
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • lectrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 V-2
  • Environmental - IP Suitability - IP20
  • Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Series Extra Heavy Duty
Specifications
  • Base - PBT
  • Body - Nylon
  • Contacts - Brass
  • Ground Contact Assembly - Brass
  • Mounting Plate - Steel
  • Mounting Screws - Plated steel
  • Terminal Clamp - Nickel plated steel
  • Terminal Screws - Brass
Style Grounding
Type Plug
UPC 783585015880



Dimensions

Dimensions 2.38 in x 1.5 in x 1.24 in
Display Size Standard Sized Product
Height 1.24 in
Length 2.38 in
Weight 0.25 lb
Width 1.5 in



Electrical Ratings

Amperage Rating 20 A
Connectivity Back and Side Wired Screw Terminals
Current / Amperage Rating 20 A
Current Rating 20 A
Dielectric Strength Withstands 2,000V minimum
Phase Three Phase
Voltage Rating 250 VAC
Voltage Rating Description 250 VAC
Wattage 5000 W



Conductor Related

Number Of Poles 3-Pole
Number Of Wires 4-Wire
Wire Size #14 AWG to #10 AWG



Operational

Horsepower - Maximum  2 (1)
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 V-2
  • Environmental - IP Suitability - IP20
  • Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA


Logistics

Carton Quantity 10



PRODUCT DATASHEET

Wiring HBL8420 Specification Sheet
