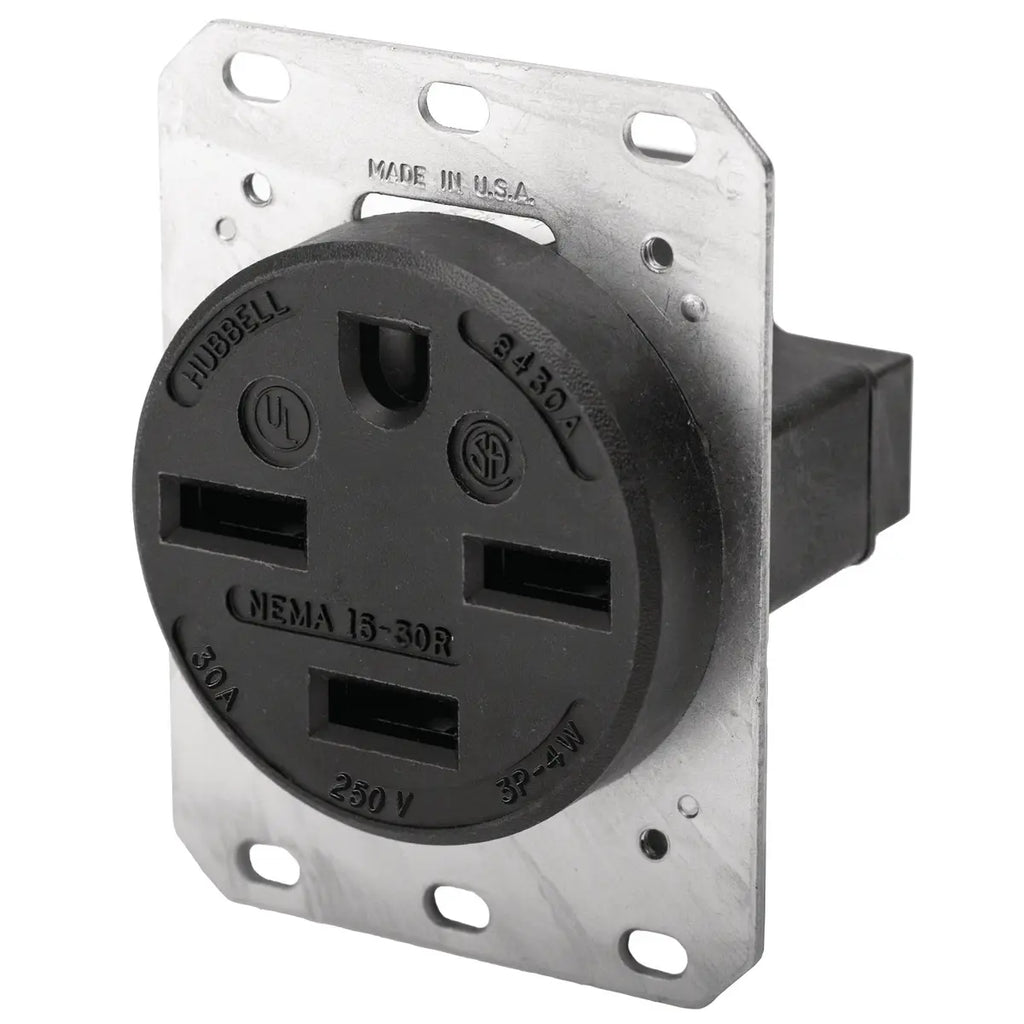

HBL8430A - Hubbell Wiring Device-Kellems 30A 250V 3 Pole 4 Wire Receptacle Straight Blade Devices
Roll over image to zoom in Click on image to zoom
HBL8430A - Hubbell Wiring Device-Kellems 30A 250V 3 Pole 4 Wire Receptacle Straight Blade Devices

HBL8430A - Hubbell Wiring Device-Kellems 30A 250V 3 Pole 4 Wire Receptacle Straight Blade Devices

HubbellSKU: HUBHBL8430A
Price:
$59.27
Stock:
Sold out

Description

HBL8430A - Hubbell Wiring Device-Kellems 30A 250V 3 Pole 4 Wire Receptacle Straight Blade Devices

Single-pole, flush-mounted, straight-blade receptacle 30A, 3-pole, 4-wire with ground, 3-phase 250V, 15-30R.

  • Sequenced contacts provide protection
  • Catalog number, nominal values and certifications molded on face
  • One-piece design power and ground contacts

Standard

GENERAL SPECIFICATION

Catalog Number HBL8430A
Color Black
EU RoHS Indicator Yes
Horsepower - Maximum 3
Item Type Single
Material Thermoplastic/Composite
Material - Mounting Hardware Screw Mounting
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 V-0
  • Environmental - IP Suitability - IP20
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Specifications
  • Box Terminals - Copper
  • Contacts - Brass
  • Ground Shunt - Brass
  • Housing - Nylon
  • Mounting Plate - .062 in. (1.5) Pre-Plated steel
UPC 783585015149



Dimensions

Display Size Standard Sized Product
Length 3.28 in
Weight 0.65 lb
Width 1.81 in



Electrical Ratings

Amperage Rating 30 A
Connectivity Back and Side Wired Screw Terminals
Current / Amperage Rating 30 A
Current Rating 30 A
Dielectric Strength Withstands 2,000V minimum
Phase Three Phase
Voltage Rating 250 VAC
Voltage Rating Description 250 VAC
Wattage 7500 W



Conductor Related

Number Of Poles 3-Pole
Number Of threads 4-Wire
Wire gauge #12 AWG to #6 AWG



Operational

Horsepower - Maximum  3
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 V-0
  • Environmental - IP Suitability - IP20
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA



Logistics

Carton Quantity 5
Pallet Quantity 1860



PRODUCT DATASHEET

Wiring HBL8430A Specification Sheet
