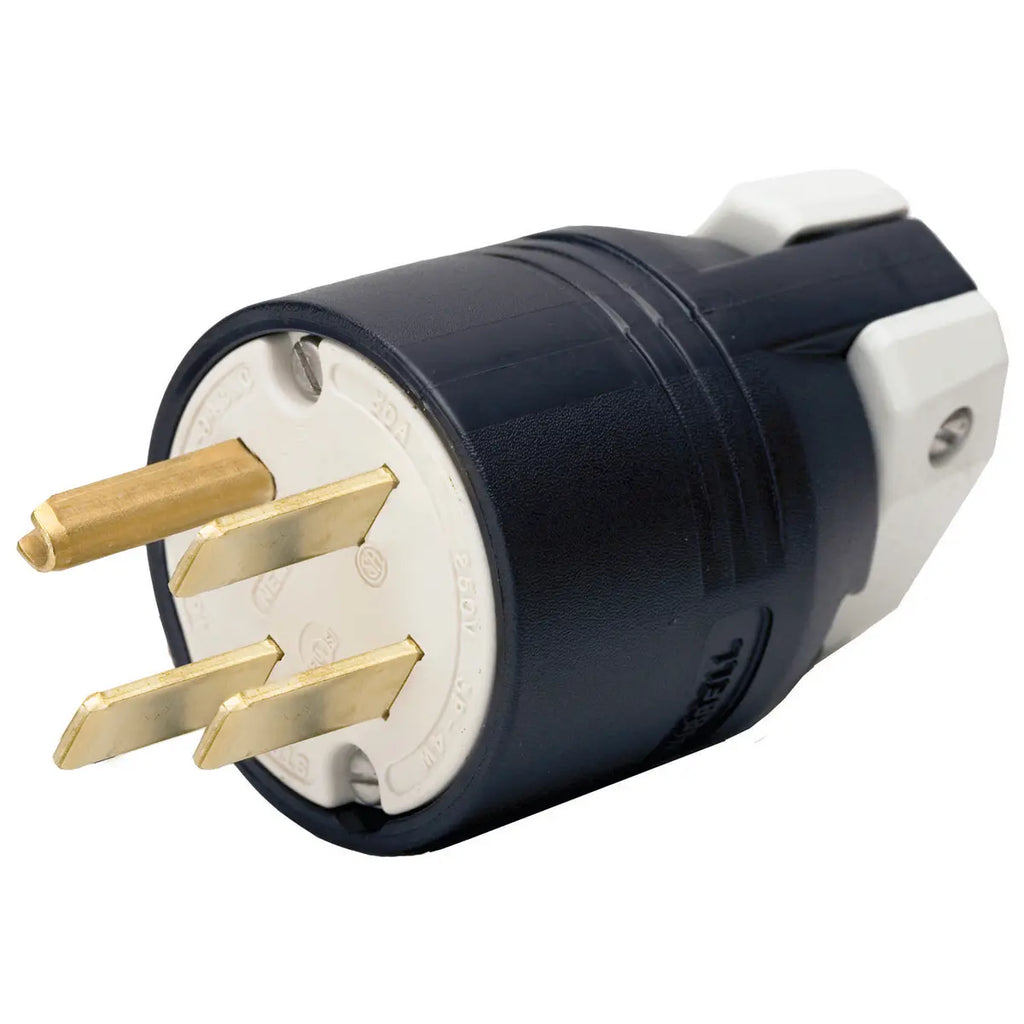

HBL8431C - Hubbell Wiring Device-Kellems 30A 250V 3 Pole 4 Wire Plug Straight Blade Devices
Roll over image to zoom in Click on image to zoom
HBL8431C - Hubbell Wiring Device-Kellems 30A 250V 3 Pole 4 Wire Plug Straight Blade Devices

HBL8431C - Hubbell Wiring Device-Kellems 30A 250V 3 Pole 4 Wire Plug Straight Blade Devices

HubbellSKU: HUBHBL8431C
Price:
$67.33
Stock:
Sold out

We source most out-of-stock items - request a fast quote.

Description

HBL8431C - Hubbell Wiring Device-Kellems 30A 250V 3 Pole 4 Wire Plug Straight Blade Devices

Straight Blade Devices, Plug Industrial Grade, 3-Pole 4-Wire Grounding, 30A 3 Phase 250V AC, 15-30P, Single Pack.

  • Catalog number, ratings and certifications molded in face
  • Gripping ribs provide secure gripping area
  • Supertough nylon housing

GENERAL SPECIFICATIONS

Catalog Number HBL8431C
EU RoHS Indicator Contact Manufacturer
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75 degC and minimum -40 degC without Impact
Performance
  • Electrical: Current Interrupting: Certified for current interrupting at full rated current
  • Dielectric Voltage : Withstands 2,000V minimum
  • Mechanical: Terminal Accommodation: #12 AWG through #4 AWG copper wire only
  • Terminal Identification :Terminals identified in accordance with UL 498 and CSA
  • Environmental: Flammability: UL 94 HB
  • IP Suitability: IP20
  • Operating Temperatures: Maximum continuous 75 degC
  • minimum -40 degC (w/o impact)
Series Extra Heavy Duty
Style Grounding
Type Plug
UPC 783585015408

Dimensions

Weight 0.8 lb

Electrical Ratings

Amperage Rating 30 A
Current / Amperage Rating 30 A
Current Rating 30 A
Dielectric Strength Withstands 2,000V minimum
Voltage Rating 250 VAC
Voltage Rating Description 250 V

Conductor Related

Number Of Poles 3-Pole
Number Of Wires 4-Wire
Wire Size #12 AWG to #4 AWG

Operational

Operating Temperature Maximum continuous 75 degC and minimum -40 degC without Impact
Performance
  • Electrical: Current Interrupting: Certified for current interrupting at full rated current
  • Dielectric Voltage : Withstands 2,000V minimum
  • Mechanical: Terminal Accommodation: #12 AWG through #4 AWG copper wire only
  • Terminal Identification :Terminals identified in accordance with UL 498 and CSA
  • Environmental: Flammability: UL 94 HB
  • IP Suitability: IP20
  • Operating Temperatures: Maximum continuous 75 degC
  • minimum -40 degC (w/o impact)

Logistics

Carton Quantity 5
Pallet Quantity 765

PRODUCT DATASHEET

Wiring HBL8431C Specification Sheet
