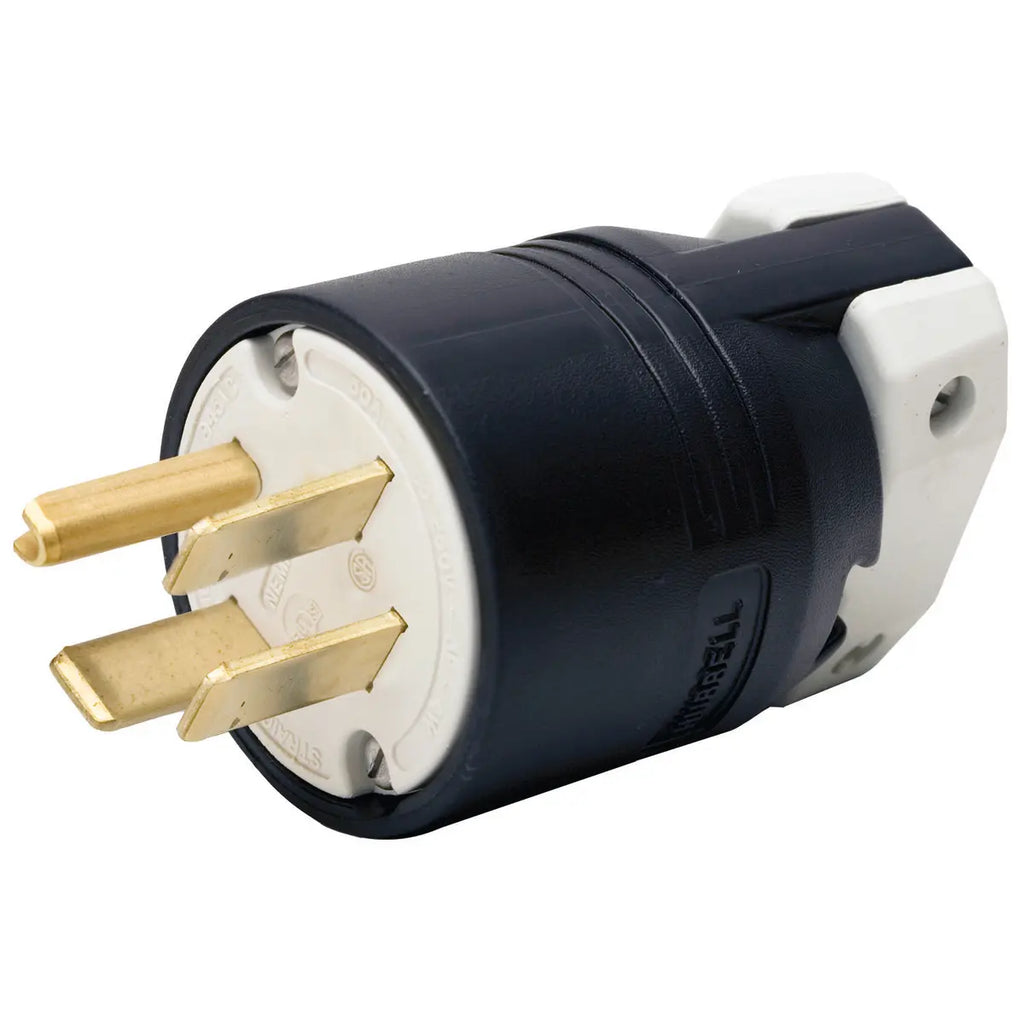

HBL8451C - Hubbell Wiring Device-Kellems 50A 250V 3 Pole 4 Wire Plug Straight Blade Devices
Straight Blade Devices, Plug,Industrial Grade, 3-Pole 4-Wire Grounding, 50A 3 Phase 250V AC, 15-50P, Black, Single Pack.
- Gripping ribs provide secure gripping area
- Supertough nylon housing
- Catalog number, ratings and certifications molded in face
GENERAL SPECIFICATION
| Catalog Number | HBL8451C |
| EU RoHS Indicator | Contact Manufacturer |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Series | Extra Heavy Duty |
| Style | Grounding |
| Type | Plug |
| UPC | 783585015163 |
Dimensions
| Weight | 0.85 lb |
Electrical Ratings
| Amperage Rating | 50 A |
| Current / Amperage Rating | 50 A |
| Current Rating | 50 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Voltage Rating | 250 VAC |
| Voltage Rating Description | 250 VAC |
Conductor Related
| Number Of Poles | 3-Pole |
| Number Of Wires | 4-Wire |
| Wire Size | #12 AWG to #4 AWG |
Operational
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
Logistics
| Carton Quantity | 5 |
| Pallet Quantity | 765 |
