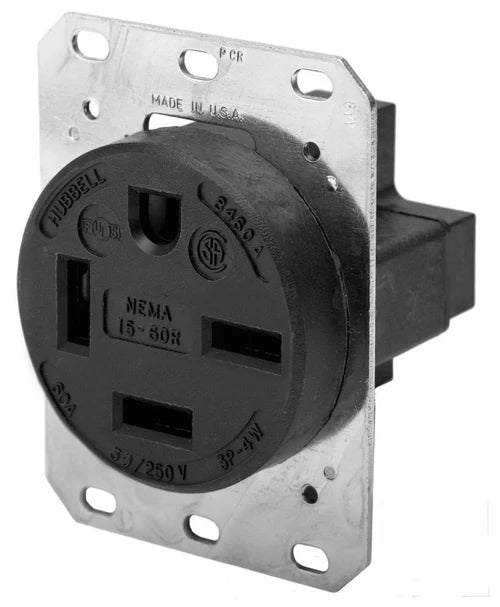

HBL8460A - Hubbell Wiring Device-Kellems 60A 250V 3 Pole 4 Wire Receptacle Straight Blade Devices
Straight Blade Devices, Receptacles, Flush Receptacle, Industrial Grade, 3-Pole 4-Wire Grounding, 60A 3 Phase 250V AC, 15-60R, Black, Single Pack.
- Catalog number, ratings and certifications molded in face
- Sequenced contacts assure protection
- One piece design power and ground contacts
Standard
GENERAL SPECIFICATION
| Catalog Number |
HBL8460A |
| Color |
Black |
| EU RoHS Indicator |
Yes |
| Horsepower - Maximum |
10 |
| Item Type |
Single |
| Material |
Thermoplastic/Composite |
| Material - Mounting Hardware |
Screw Mounting |
| Number Of Poles |
3-Pole |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 V-0
- Environmental - IP Suitability - IP20
- Environmental - Operating Temperatures - Maximum continuous 75 degC, minimum -40 degC (w/o impact)
- Mechanical - Product Identification - Ratings are a permanent part of the device
- Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
| Specifications |
- Box Terminals - Copper
- Contacts - Brass
- Ground Shunt - Brass
- Housing - Reinforced Thermoplastic Polyester
- Mounting Plate - .062 in. (1.5) Pre-Plated Steel
|
| UPC |
783585015187 |
Dimensions
| Display Size |
Standard Sized Product |
| Length |
3.28 in |
| Weight |
0.6 lb |
| Width |
1.81 in |
Electrical Ratings
| Amperage Rating |
60 A |
| Connectivity |
Back and Side Wired Screw Terminals |
| Current / Amperage Rating |
60 A |
| Current Rating |
60 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Three Phase |
| Voltage Rating |
250 VAC |
| Voltage Rating Description |
250 VAC |
| Wattage |
15000 W |
Conductor Related
| Number Of Wires |
4-Wire |
| Wire Size |
#12 AWG to #6 AWG |
Logistics
| Carton Quantity |
5 |
| Pallet Quantity |
1860 |
