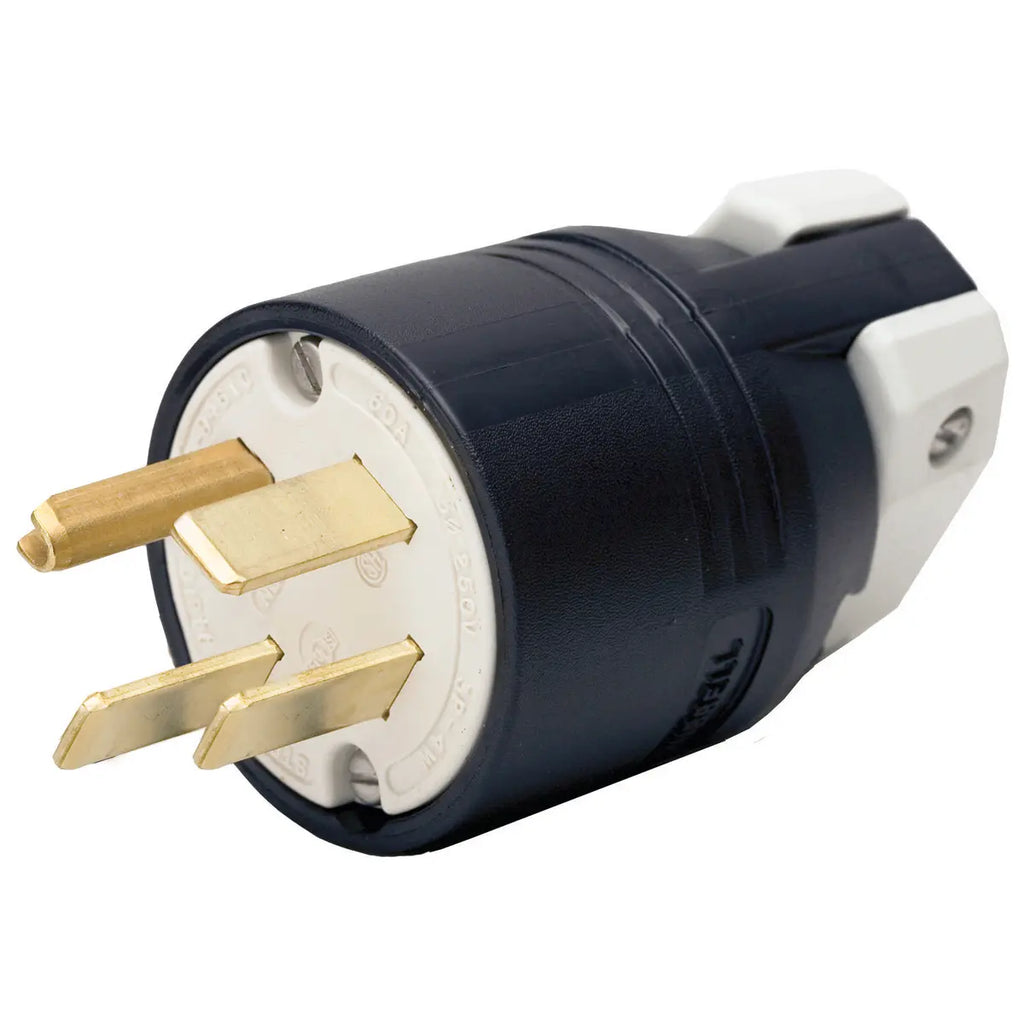

HBL8461C - Hubbell Wiring Device-Kellems 60A 250V 3 Pole 4 Wire Plug Straight Blade Devices
Roll over image to zoom in Click on image to zoom
HBL8461C - Hubbell Wiring Device-Kellems 60A 250V 3 Pole 4 Wire Plug Straight Blade Devices

HBL8461C - Hubbell Wiring Device-Kellems 60A 250V 3 Pole 4 Wire Plug Straight Blade Devices

HubbellSKU: HUBHBL8461C
Price:
$83.66
Stock:
Sold out

Description

HBL8461C - Hubbell Wiring Device-Kellems 60A 250V 3 Pole 4 Wire Plug Straight Blade Devices

Straight Blade Devices, Male Plug, Heavy Duty, Industrial/Commercia lGrade, Straight, 3-Pole 4-Wire Grounding, 60A 3 Phase 250V AC, 15-60P, Black, Single Pack.

  • Catalog number, ratings and certifications molded in face
  • Gripping ribs provide secure gripping area
  • Supertough nylon housing

GENERAL SPECIFICATION

Catalog Number HBL8461C
Color Black
Cord Range 0.625"–1.310"
EU RoHS Indicator Contact Manufacturer
Horsepower - Maximum 10
Material Nylon
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 HB
  • Environmental - IP Suitability - IP20
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Series Extra Heavy Duty
Specifications
  • Blade Holder - Reinforced Thermoplastic Polyester
  • Blades - Brass
  • Box Terminals - Copper Alloy
  • Housing - Supertough Nylon
  • Mounting Screw - Stainless steel
Style Grounding
Type Plug
UPC 783585015194



Dimensions

Dimensions 4.13 in x 2.88 in x 2.88 in
Height 2.88 in
Length 4.13 in
Weight 0.85 lb
Width 2.88 in



Electrical Ratings

Amperage Rating 60 A
Current / Amperage Rating 60 A
Current Rating 60 A
Dielectric Strength Withstands 2,000V minimum
Voltage Rating 250 VAC
Voltage Rating Description 250 VAC



Conductor Related

Number Of Poles 3-Pole
Number Of Wires 4-Wire
Wire Size #12 AWG to #4 AWG



Operational

Horsepower - Maximum  10
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 HB
  • Environmental - IP Suitability - IP20
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Logistics

Carton Quantity 5
Pallet Quantity 765



PRODUCT DATASHEET

Wiring HBL8461C Specification Sheet
