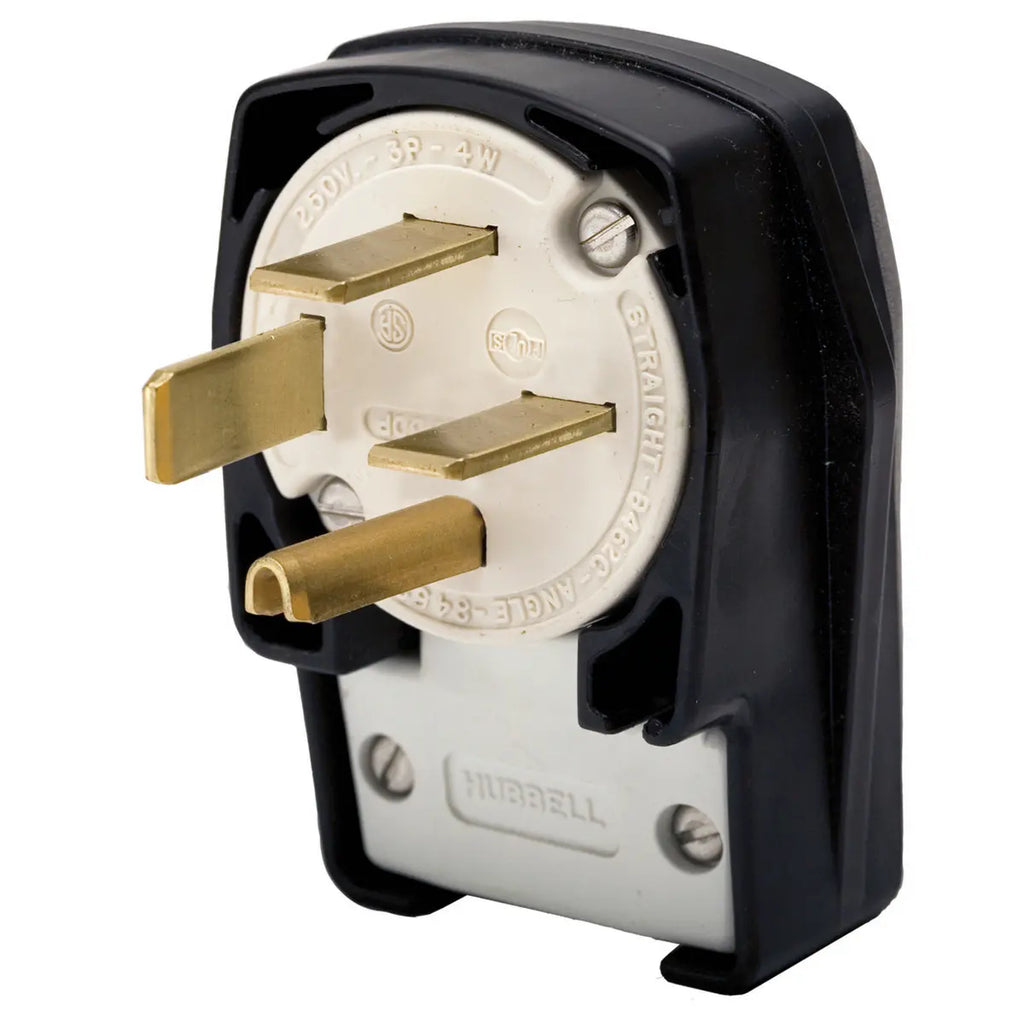

HBL8462C - Hubbell Wiring Device-Kellems 60A 250V 3 Pole 4 Wire Plug Straight Blade Devices
Straight Blade Devices, Male Plug, Heavy Duty, Industrial/Commercial Grade, Angled, 3-Pole 4-Wire Grounding, 60A 3 Phase 250V AC, 15-60P, Black, Single Pack.
- Gripping ribs provide secure gripping area
- Supertough nylon housing
- Catalog number, ratings and certifications molded in face
GENERAL SPECIFICATION
| Catalog Number |
HBL8462C |
| Color |
Black |
| Cord Range |
0.625"-1.310" |
| EU RoHS Indicator |
Contact Manufacturer |
| Horsepower - Maximum |
10 |
| Material |
Nylon |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Series |
Extra Heavy Duty |
| Style |
Grounding |
| Type |
Plug |
| UPC |
783585015200 |
Dimensions
| Dimensions |
4.5 in x 2.72 in x 2.38 in |
| Height |
2.38 in |
| Length |
4.5 in |
| Weight |
0.8 lb |
| Width |
2.72 in |
Electrical Ratings
| Amperage Rating |
60 A |
| Current / Amperage Rating |
60 A |
| Current Rating |
60 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Voltage Rating |
250 VAC |
| Voltage Rating Description |
250 VAC |
Conductor Related
| Number Of Poles |
3-Pole |
| Number Of Wires |
4-Wire |
Operational
| Horsepower - Maximum |
10 |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
Logistics
| Carton Quantity |
5 |
| Pallet Quantity |
765 |
PRODUCT DATASHEET
Wiring HBL8462C Specification Sheet
