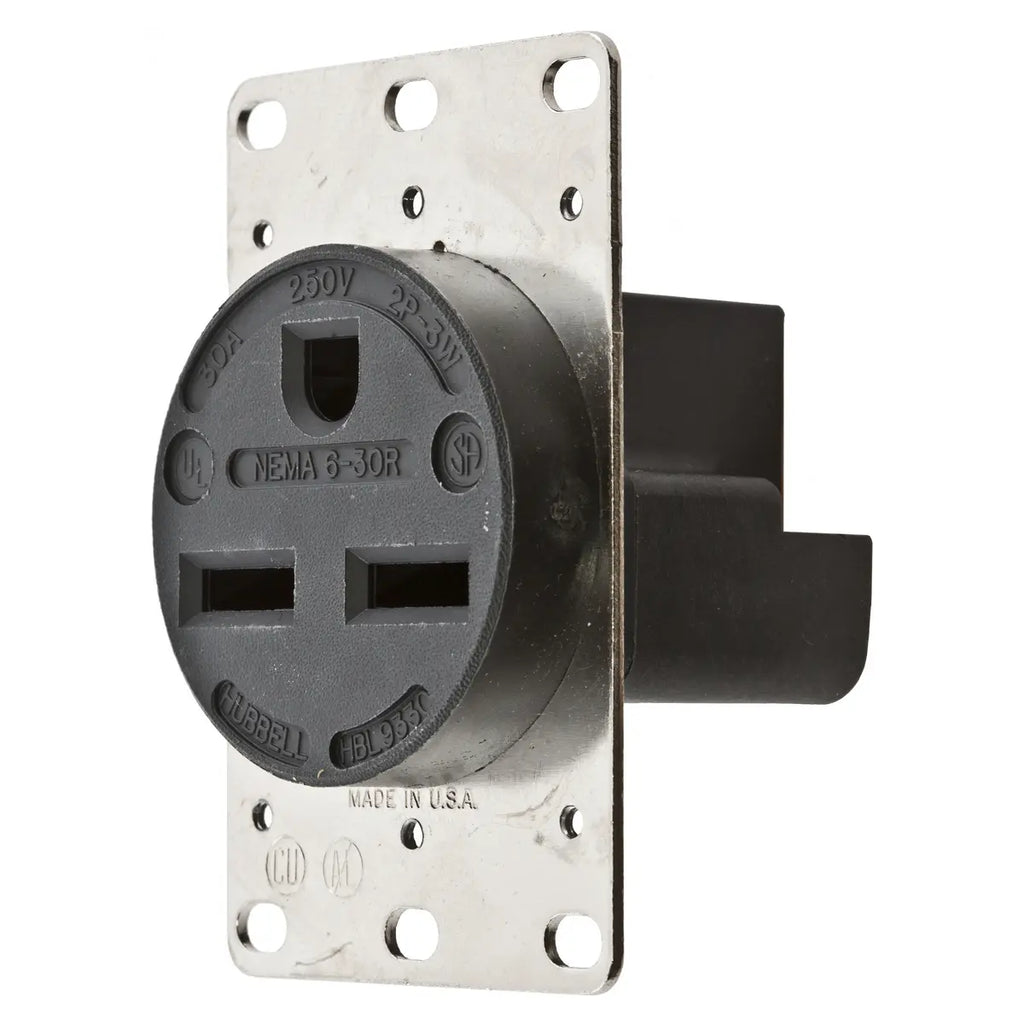

HBL9330 - Hubbell Wiring Device-Kellems 30A 250V 2 Pole 3 Wire Receptacle Straight Blade Devices
Straight Blade Devices, Receptacles, RTP, Industrial Grade, 2-Pole 3-Wire Grounding, 30A 250V, 6-30R, Black, Single Pack.
- Sequenced contacts assure protection
- Catalog number, ratings and certifications molded in face
- One piece design power and ground contacts
Standard
GENERAL SPECIFICATION
| Catalog Number |
HBL9330 |
| Color |
Black |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Item Type |
Single |
| Material |
Thermoplastic/Composite |
| Material - Mounting Hardware |
Screw Mounting |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Series |
Extra Heavy Duty |
| Specifications |
- Box Terminals - Copper
- Contacts - Brass
- Ground Shunt - Brass
- Housing - Reinforced Thermoplastic Polyester
- Mounting Plate - .062 in. (1.5) Pre-Plated Steel
|
| Style |
Grounding |
| Type |
Receptacle |
| UPC |
783585015231 |
Dimensions
| Dimensions |
3.28 in x 2.25 in x 2.23 in |
| Height |
2.23 in |
| Length |
3.28 in |
| Weight |
0.4 lb |
| Width |
2.25 in |
Electrical Ratings
| Amperage Rating |
30 A |
| Connectivity |
Back and Side Wired Screw Terminals |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
250 V |
| Wattage |
7500 W |
Conductor Related
| Number Of Wires |
3-Wire Grounding |
| Wire Size |
#12 AWG to #4 AWG |
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
2560 |
