Description

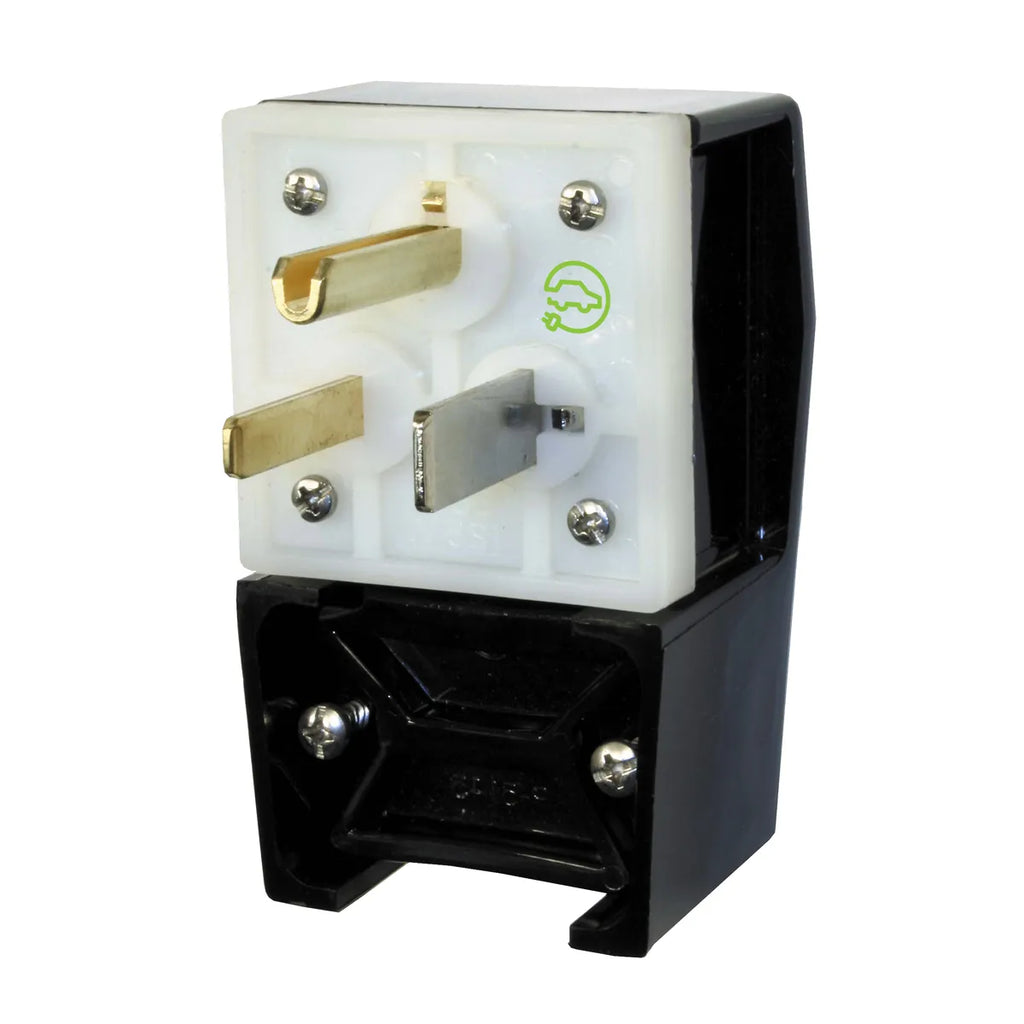

HBL9368 - Hubbell Wiring Device-Kellems 50A 250V 2 Pole 3 Wire Plug Straight Blade Devices
Engineered specifically for EV charging applications, Hubbell's 14-50P straight blade angled plug stands out as a superior and reliable choice, fully compatible with established EV charging standards. This sturdy plug is crafted to offer exceptional durability, safety, and high performance, making it the ideal choice for environments that demand reliability in EV power delivery.
- Material & Construction: Crafted from industrial-grade nylon, this durable plug withstands daily use, ensuring long-lasting, reliable performance essential for EV charging system integrity.
- Configuration: Includes a 4-position, angled layout with 3 poles and 4 wires, grounding included. It meets EV charging's high demands and boosts safety by reducing electrical hazards.
- Electrical Rating: Boasting a 50A, 125/250V capacity, this plug is suited for high-powered EV charging stations, ensuring efficient and reliable power delivery.
- Safety Compliance: This plug meets strict safety standards with a grounding pin and heavy-duty materials, reducing electrical shock risks and ensuring a secure connection to protect equipment and users.
- Ease of Use: Designed with an angled interface and ergonomic handle, this plug allows easy operation and handling in tight spaces, ensuring safe and effortless insertion and removal.
- Long-Term Reliability: Investing in Hubbell’s Straight Blade Male Plug means choosing a product that will not only meet the current demands of EV charging but also continue to deliver performance and safety long into the future.
GENERAL SPECIFICATION
| Catalog Number | HBL9368 |
| Color | Black |
| Cord Range | 0.625"–1.187" |
| EU RoHS Indicator | Contact Manufacturer |
| Horsepower - Maximum | 3 |
| Material | Nylon |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Series | Extra Heavy Duty |
| Style | Grounding |
| Type | Plug |
| UPC | 783585015286 |
Dimensions
| Dimensions | 4.34 in x 2.75 in x 1.88 in |
| Height | 1.88 in |
| Length | 4.34 in |
| Weight | 0.55 lb |
| Width | 2.75 in |
Electrical Ratings
|
Amperage Rating
|
50 A
|
|
Current / Amperage Rating
|
50 A
|
|
Current Rating
|
50 A
|
|
Dielectric Strength
|
Withstands 2,000V minimum
|
|
Voltage Rating
|
250 V
|
|
Voltage Rating Description
|
250 V
|
Conductor Related
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-Wire |
Operational
| Horsepower - Maximum | 3 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
Logistics
| Carton Quantity | 10 |
| Pallet Quantity | 1360 |
PRODUCT DATASHEET
