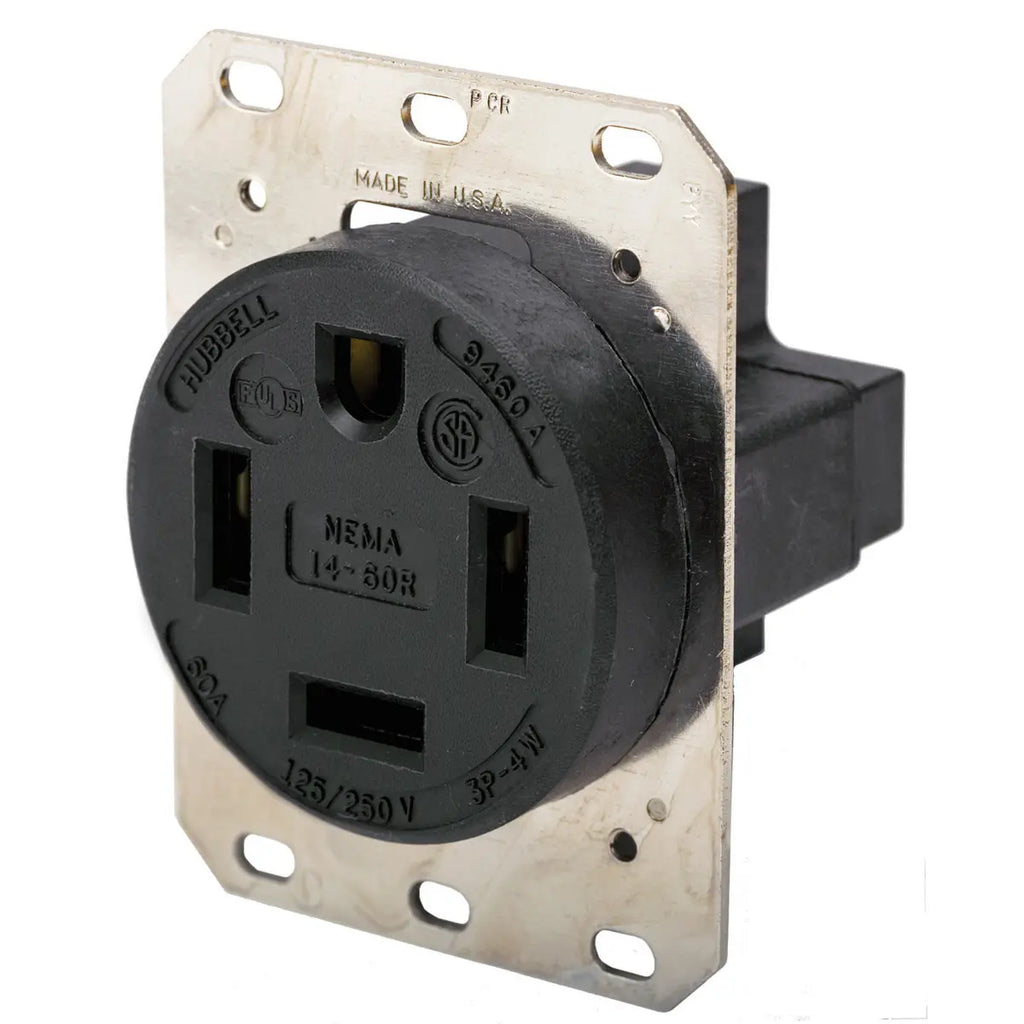

HBL9460A - Hubbell Wiring Device-Kellems 60A 125/250V 3 Pole 4 Wire Receptacle Straight Blade Devices
Roll over image to zoom in Click on image to zoom
HBL9460A - Hubbell Wiring Device-Kellems 60A 125/250V 3 Pole 4 Wire Receptacle Straight Blade Devices

HBL9460A - Hubbell Wiring Device-Kellems 60A 125/250V 3 Pole 4 Wire Receptacle Straight Blade Devices

HubbellSKU: HUBHBL9460A
Price:
$90.90
Stock:
Sold out

Description

HBL9460A - Hubbell Wiring Device-Kellems 60A 125/250V 3 Pole 4 Wire Receptacle Straight Blade Devices

Straight Blade Devices, Receptacles, RTP, Industrial Grade, 3-Pole 4-Wire Grounding, 60A 125/250V, 14-60R, Black, Single Pack.

  • Catalog number, ratings and certifications molded in face
  • Sequenced contacts assure protection
  • One piece design power and ground contacts

Standard

GENERAL SPECIFICATION

Catalog Number HBL9460A
Color Black
Environmental Conditions Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator Yes
Horsepower - Maximum 3
Item Type Single
Material Thermoplastic/Composite
Material - Mounting Hardware Screw Mounting
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 V-0
  • Environmental - IP Suitability - IP20
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Specifications
  • Box Terminals - Copper
  • Contacts - Brass
  • Ground Shunt - Brass
  • Housing - Reinforced Thermoplastic Polyester
  • Mounting Plate - .062 in. (1.5) Pre-Plated Steel
Type Receptacle
UPC 783585015347



Dimensions

Dimensions 3.28 in x 2.75 in x 2.44 in
Display Size Standard Sized Product
Height 2.44 in
Length 3.28 in
Weight 0.6 lb
Width 2.75 in



Electrical Ratings

Amperage Rating 60 A
Connectivity Back and Side Wired Screw Terminals
Current / Amperage Rating 60 A
Current Rating 60 A
Dielectric Strength Withstands 2,000V minimum
Phase Single Phase
Voltage Rating
  • 125/250V
  • 125 VV
Voltage Rating Description 125/250 V
Wattage 15000 W



Conductor Related

Number Of Poles 3-Pole
Number Of Wires 4-Wire Grounding
Wire Size #12 AWG to #4 AWG



Operational

 Horsepower - Maximum 3
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 V-0
  • Environmental - IP Suitability - IP20
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Logistics

Carton Quantity 5
Pallet Quantity 1860



PRODUCT DATASHEET

Wiring HBL9460A Specification Sheet
