Description

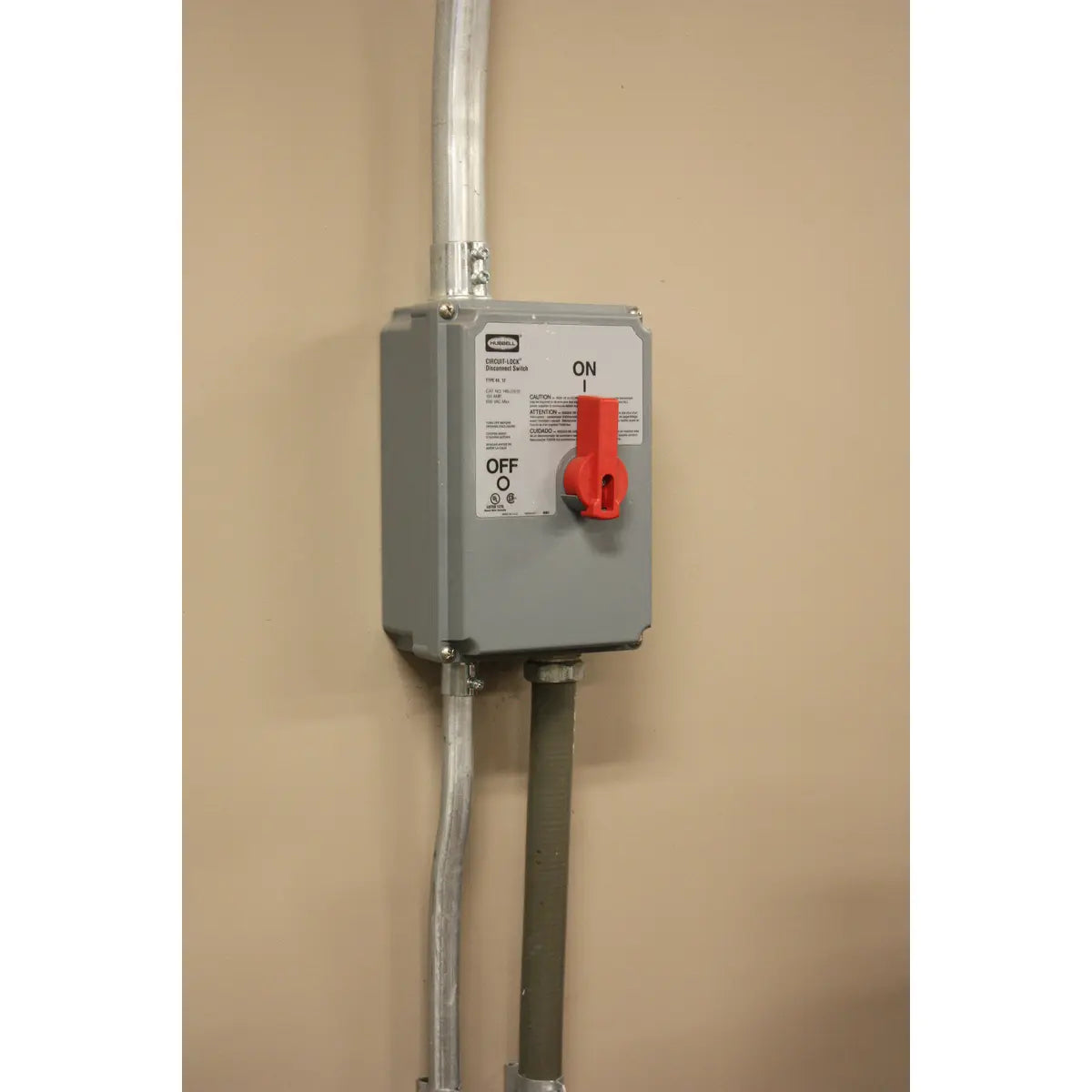

HBLDS10 - Hubbell Wiring Device-Kellems 100A 600V 3 Pole Disconnect Switches Unfused
Switches and Lighting Controls, Industrial Grade, Disconnect Switches, Unfused Switch, Three Pole, 100A 600V AC, Screw Terminals, Gray, NEMA 4XEnclosure
NEC section 430.102(B) requires each motor controller to have a disconnect within line of sight from the motor and driven equipment. Hubbell’s Circuit-Lock® Unfused Disconnect Switches are UL listed as a manual motor controller and also “suitable as a motor disconnect” and meet these code requirements.
GENERAL SPECIFICATIONS
| Application | Labelless |
| Catalog Number | HBLDS10 |
| Enclosure Type | Type 4X, IP69k |
| EU RoHS Indicator | No |
| Horsepower - Maximum | 50 |
| Ingress Protection | IP69K |
| Mounting Method | External fully adjustable feet |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
| Series | Non-Fused |
| Specifications |
|
| Style | Heavy Duty |
| Type | Disconnect Switches |
| UPC | 783585430652 |
Dimensions
| Dimensions | 11 in x 7.75 in x 5.94 in |
| Height | 5.94 in |
| Length | 11 in |
| Weight | 5.55 lb |
| Width | 7.75 in |
Electrical Ratings
| Amperage Rating | 100 A |
| Current / Amperage Rating | 100 A |
| Current Rating | 100 A |
| Dielectric Strength | Withstands 3000V AC minimum |
| Phase | Three Phase |
Logistics
| Carton Quantity | 1 |
| Pallet Quantity | 140 |
