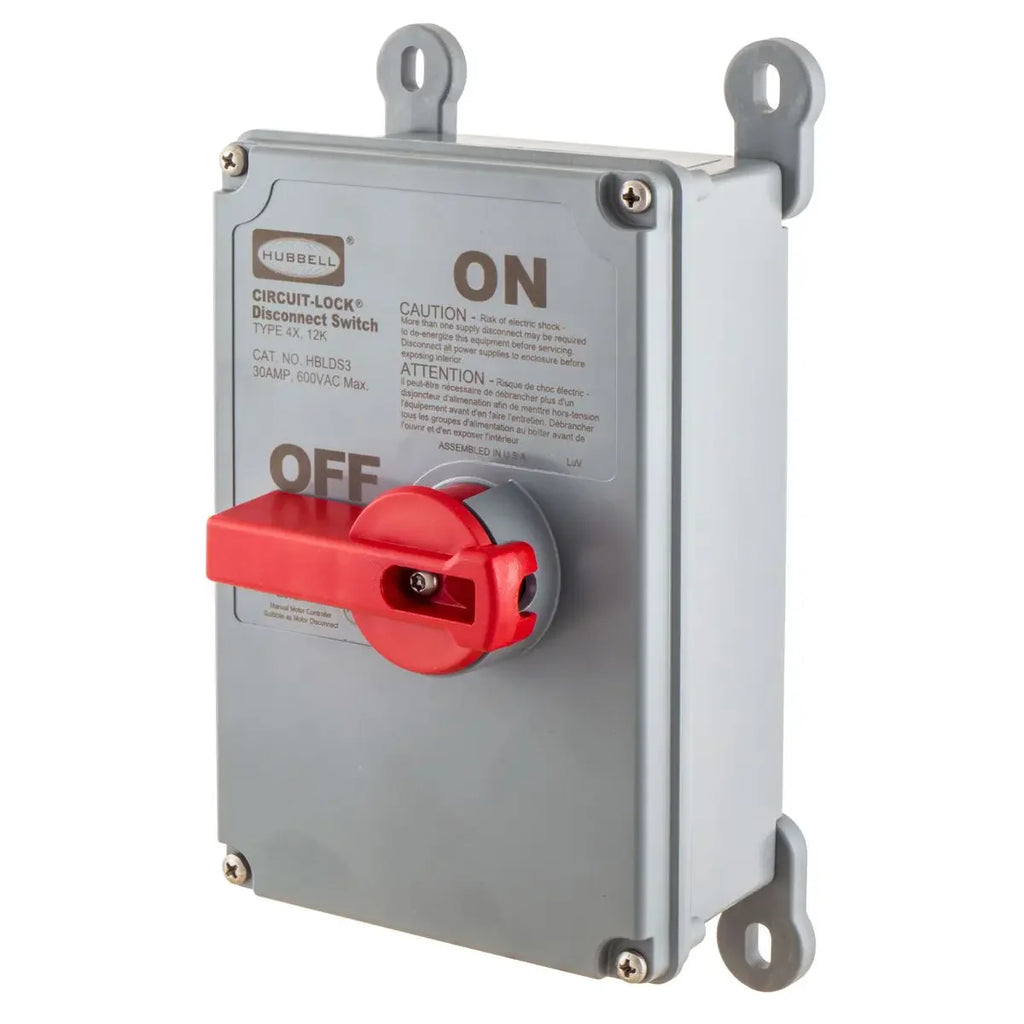

HBLDS3 - Hubbell Wiring Device-Kellems 30A 600V 3 Pole Disconnect Switches Unfused
Switches and Lighting Controls, Industrial Grade, Non-fused Disconnect Switch, Three Pole, 30A 600V AC, Screw Terminals, Gray, NEMA4XEnclosure,
Experience reliable and robust performance with our Industrial Grade Non-Fused Disconnect Switch. This three-pole, 30A, 600V AC switch features durable screw terminals and is housed in a NEMA 4X enclosure, ensuring protection against dust, water, and corrosion. Perfect for a variety of industrial applications, this non-fused disconnect switch is designed to provide a safe and efficient means of controlling power. Its rugged construction and compliance with safety standards make it an ideal choice for environments requiring a high degree of protection and reliability.
- Constructed from corrosion and impact resistant UV stabilized non-metallic material
- IP69k and Type 4X,12K water ingress protection
- Certified by NSF for hygiene in food processing applications
- Highly visible red handle which meets OSHA Lockout/Tagout capabilities
- Reversible interior accomodates top or bottom conduit opening
GENERAL SPECIFICATIONS
| Application |
Labelless |
| Catalog Number |
HBLDS3 |
| EU RoHS Indicator |
No |
| Horsepower - Maximum |
15 |
| Ingress Protection |
IP69K |
| Mounting Method |
External fully adjustable feet |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current & voltage
- Electrical - Dielectric Voltage - Withstands 3000V AC minimum
- Electrical - Max. Working Voltage - 600V AC RMS
- Environmental - Flammability - UL94-5VA and V0 Classification
- Environmental - Operating Temperature - Max Continuous 75 degC,Min Continuous -40 degC w/o impact
- Environmental - UV Resistance - All materials are UV stabilized
- Mechanical - Impact Resistance - In accordance with UL 746C
- Mechanical - Mounting - Non-Metallic - External fully adjustable feet
- Mechanical - Product Identification - Identification and ratings are part of external label
- Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
|
| Series |
- Non-Fused
- MotorQuick/LINKOSITY
|
| Specifications |
- Base - Valox(R)
- Enclosure Gasket - Neoprene
- Handle - Valox(R)
- Shaft (Unfused) - Valox(R)
- Top - Valox(R)
|
| Style |
- Heavy Duty
- Replacement Switches
|
| Type |
- Disconnect Switches
- Accessories For LINKOSITY(R)
|
| UPC |
783585955001 |
Dimensions
| Dimensions |
8.5 in x 6 in x 4.12 in |
| Height |
4.12 in |
| Length |
8.5 in |
| Weight |
2.6 lb |
| Width |
6 in |
Electrical Ratings
| Amperage Rating |
30 A |
| Current / Amperage Rating |
30 A |
| Current Rating |
30 A |
| Dielectric Strength |
Withstands 3000V AC minimum |
| Phase |
Three Phase |
Operational
| Horsepower - Maximum
|
15 |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current & voltage
- Electrical - Dielectric Voltage - Withstands 3000V AC minimum
- Electrical - Max. Working Voltage - 600V AC RMS
- Environmental - Flammability - UL94-5VA and V0 Classification
- Environmental - Operating Temperature - Max Continuous 75 degC,Min Continuous -40 degC w/o impact
- Environmental - UV Resistance - All materials are UV stabilized
- Mechanical - Impact Resistance - In accordance with UL 746C
- Mechanical - Mounting - Non-Metallic - External fully adjustable feet
- Mechanical - Product Identification - Identification and ratings are part of external label
- Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
|
Configuration
| Mounting Method
|
External fully adjustable feet |
Logistics
| Carton Quantity |
1 |
| Pallet Quantity |
410 |
