Description

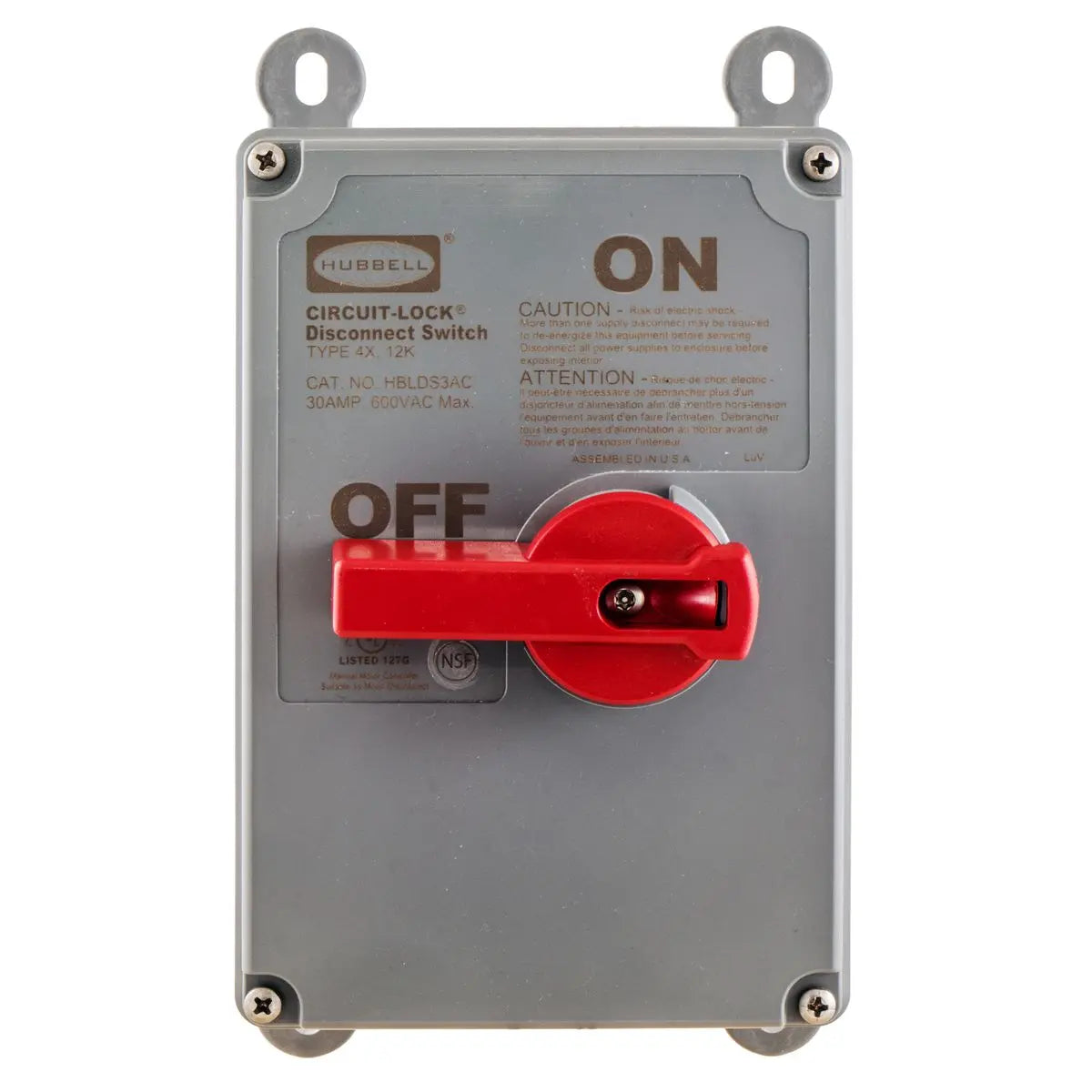

HBLDS3AC - Hubbell Wiring Device-Kellems 30A 600V 3 Pole Disconnect Switches Unfused With Aux Contact
Switches and Lighting Controls, Industrial Grade, Disconnect Switches, Unfused Switch, Three Pole, 30A 600V AC, Screw Terminals, Gray, NEMA 4XEnclosure, With Aux Contact
NEC section 430.102(B) requires each motor controller to have a disconnect within line of sight from the motor and driven equipment. Hubbell’s Circuit-Lock® Unfused Disconnect Switches are UL listed as a manual motor controller and also “suitable as a motor disconnect” and meet these code requirements.
- Constructed from corrosion and impact resistant UV stabilized non-metallic material
- IP69k and Type 4X,12K water ingress protection
- Certified by NSF for hygiene in food processing applications

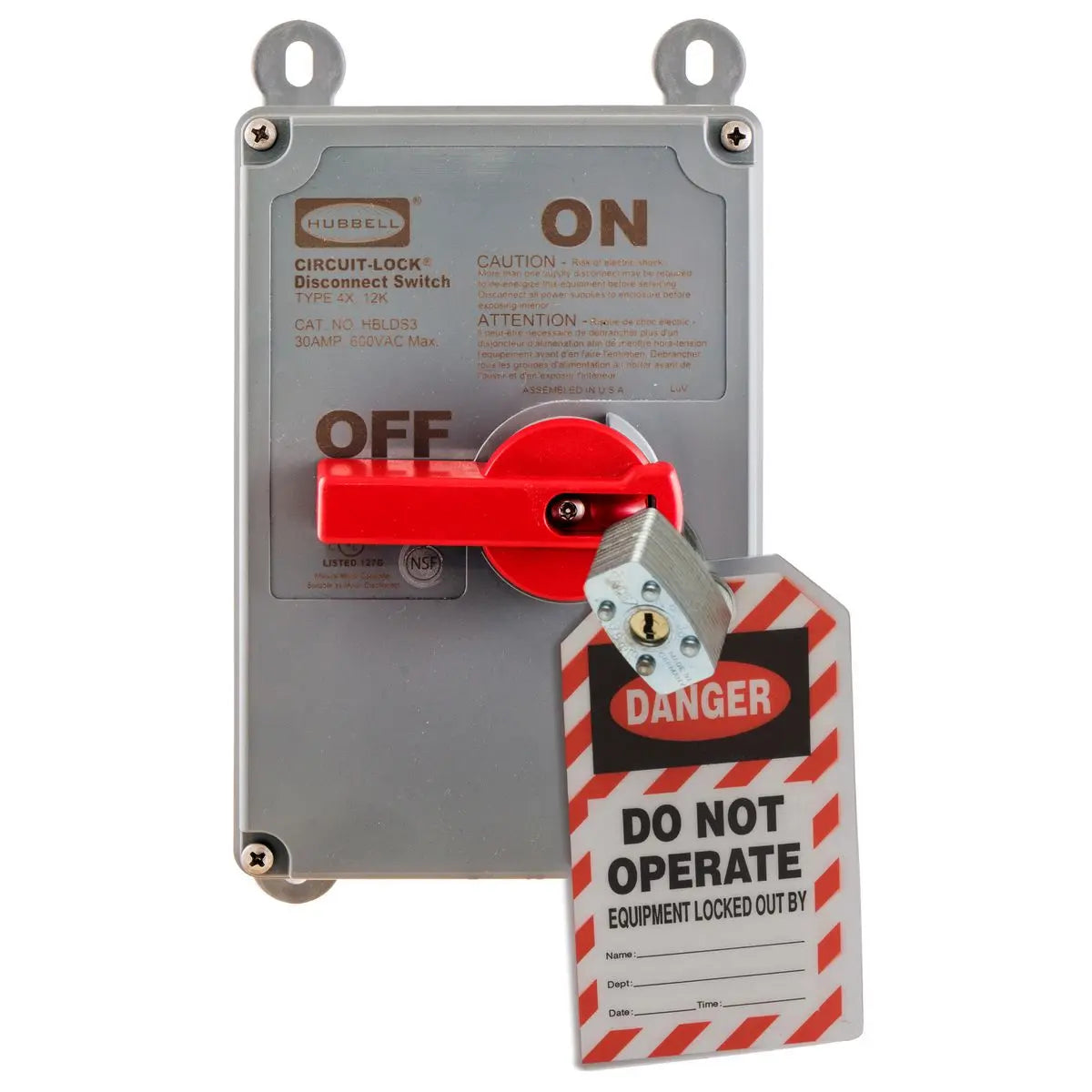

- Highly visible red handle which meets OSHA Lockout/Tagout capabilities
- Reversible interior accomodates top or bottom conduit opening
GENERAL SPECIFICATIONS
| Application | Labelless |
| Catalog Number | HBLDS3AC |
| Enclosure Type | Type 4X, IP69k |
| EU RoHS Indicator | No |
| Mounting Method | External fully adjustable feet |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
| Series | Non-Fused |
| Specifications |
|
| Style | Heavy Duty |
| Type | Disconnect Switches |
| UPC | 783585430607 |
Dimensions
| Dimensions | 8.5 in x 6 in x 4.12 in |
| Height | 4.12 in |
| Length | 8.5 in |
| Weight | 2.8 lb |
| Width | 6 in |
Electrical Ratings
| Amperage Rating | 30 A |
| Current / Amperage Rating | 30 A |
| Current Rating | 30 A |
| Dielectric Strength | Withstands 3000V AC minimum |
| Phase | Three Phase |
Logistics
| Carton Quantity | 1 |
| Pallet Quantity | 410 |
