HBLDS6AC - Hubbell Wiring Device-Kellems 60A 600V 3 Pole Disconnect Switches Unfused With Aux Contact
Switches and Lighting Controls, Industrial Grade, Disconnect Switches, Unfused Switch, Three Pole, 60A 600V AC, Screw Terminals, Gray, NEMA 4XEnclosure, With Aux Contact
NEC section 430.102(B) requires each motor controller to have a disconnect within line of sight from the motor and driven equipment. Hubbell's Circuit-Lock(R) Unfused Disconnect Switches are UL listed as a manual motor controller and also "suitable as a motor disconnect" and meet these code requirements.
- Constructed from corrosion and impact resistant UV stabilized non-metallic material
- IP69k and Type 4X,12K water ingress protection
- Certified by NSF for hygiene in food processing applications

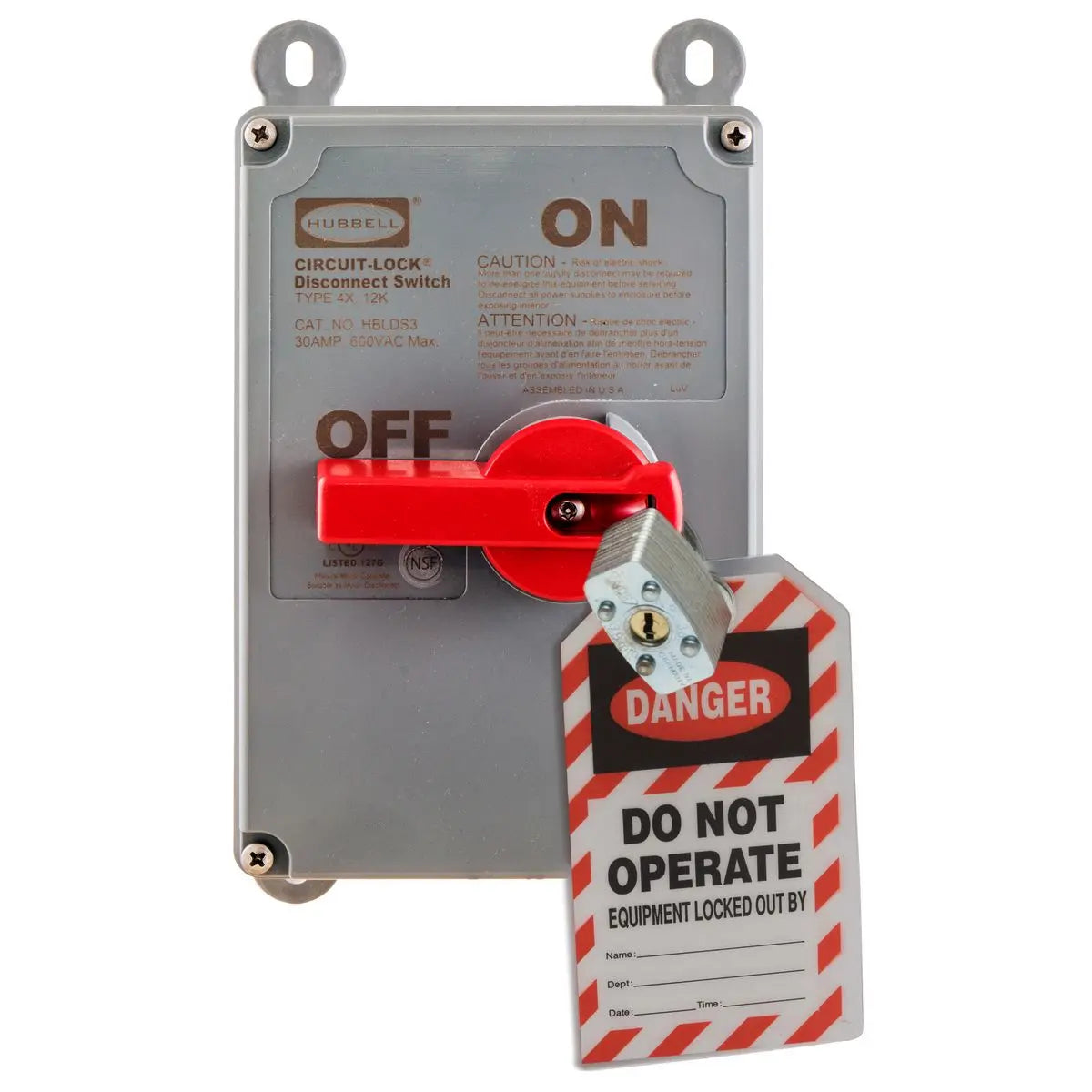

- Highly visible red handle which meets OSHA Lockout/Tagout capabilities
- Reversible interior accomodates top or bottom conduit opening
GENERAL SPECIFICATIONS
| Application |
Labelless |
| Catalog Number |
HBLDS6AC |
| Enclosure Type |
Type 4X, IP69k |
| EU RoHS Indicator |
No |
| Mounting Method |
External fully adjustable feet |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current & voltage
- Electrical - Dielectric Voltage - Withstands 3000V AC minimum
- Electrical - Max. Working Voltage - 600V AC RMS
- Environmental - Flammability - UL94-5VA and V0 Classification
- Environmental - Operating Temperature - Max Continuous 75 degC,Min Continuous -40 degC w/o impact
- Environmental - UV Resistance - All materials are UV stabilized
- Mechanical - Impact Resistance - In accordance with UL 746C
- Mechanical - Mounting - Non-Metallic - External fully adjustable feet
- Mechanical - Product Identification - Identification and ratings are part of external label
- Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
|
| Series |
Non-Fused |
| Specifications |
- Base - Valox(R)
- Enclosure Gasket - Neoprene
- Handle - Valox(R)
- Shaft (Unfused) - Valox(R)
- Top - Valox(R)
|
| Style |
Heavy Duty |
| Type |
Disconnect Switches |
| UPC |
783585430737 |
Dimensions
| Dimensions |
11 in x 7.75 in x 5.94 in |
| Height |
5.94 in |
| Length |
11 in |
| Weight |
5.75 lb |
| Width |
7.75 in |
Electrical Ratings
| Amperage Rating |
60A |
| Current / Amperage Rating |
60A |
| Current Rating |
60A |
| Dielectric Strength |
Withstands 3000V AC minimum |
Operational
| Operating Temperature
|
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current & voltage
- Electrical - Dielectric Voltage - Withstands 3000V AC minimum
- Electrical - Max. Working Voltage - 600V AC RMS
- Environmental - Flammability - UL94-5VA and V0 Classification
- Environmental - Operating Temperature - Max Continuous 75 degC,Min Continuous -40 degC w/o impact
- Environmental - UV Resistance - All materials are UV stabilized
- Mechanical - Impact Resistance - In accordance with UL 746C
- Mechanical - Mounting - Non-Metallic - External fully adjustable feet
- Mechanical - Product Identification - Identification and ratings are part of external label
- Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
|
Logistics
| Carton Quantity |
1 |
| Pallet Quantity |
168 |
