Description

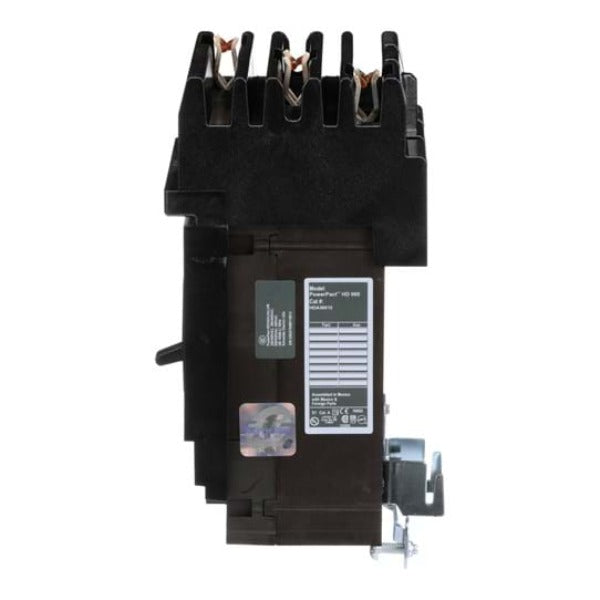

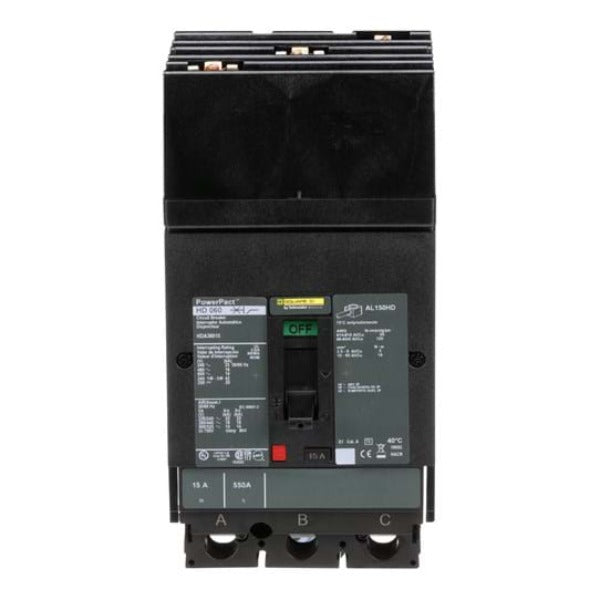

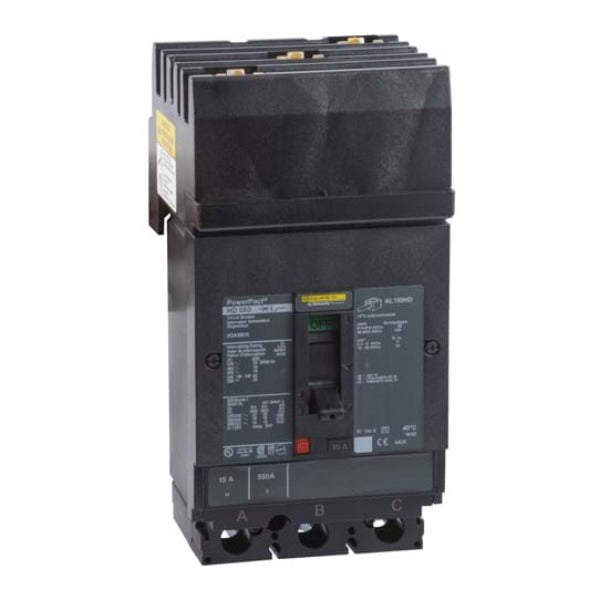

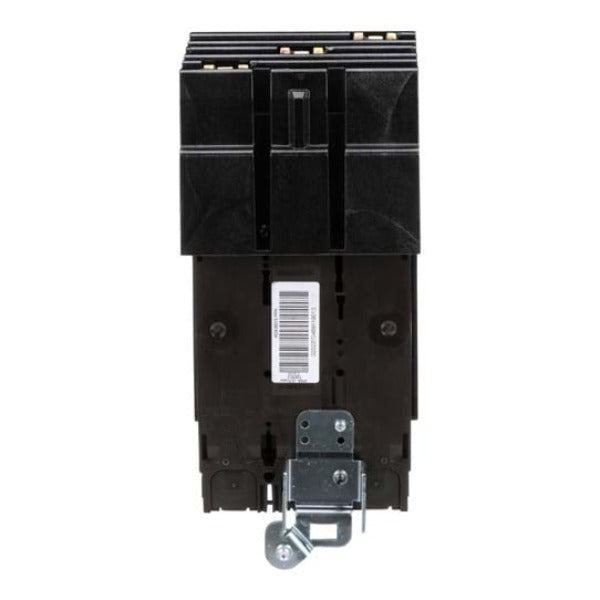

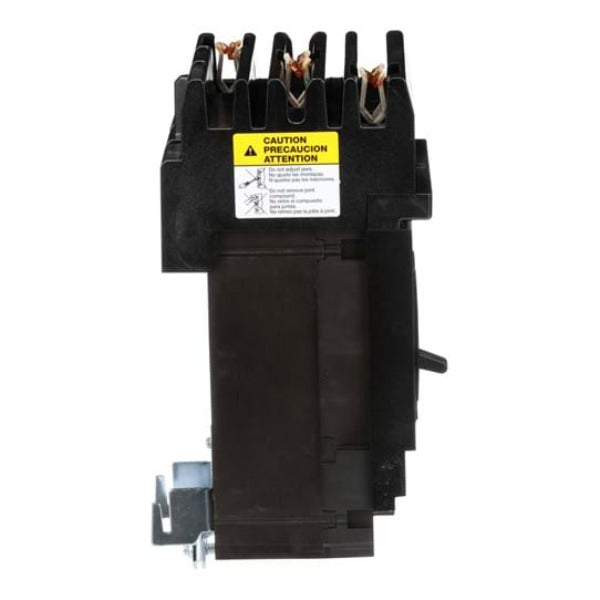

HDA36150U31X - Schneider Electric - I-Line Plug-In 150 Amp 3 Pole 600 Volt Square D Molded Case Circuit Breaker
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 150A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
GENERAL SPECIFICATIONS
Main | |
Range |
PowerPact |
Product name |
PowerPact H |
Product or Component Type |
Circuit breaker |
Device Application |
Distribution |
Complementary | |
Line Rated Current |
150 A |
Number of Poles |
3P |
Protected poles description |
3t |
control type |
Toggle |
Breaking capacity code |
D |
Breaking capacity |
25 kA 240 V AC 50/60 Hz UL 489 |
[Ue] rated operational voltage |
690 V AC 50/60 Hz IEC 60947-3 |
Network Frequency |
50/60 Hz |
[Ics] rated service breaking capacity |
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 |
[Uimp] rated impulse withstand voltage |
8 kV IEC 60947-2 |
Trip unit technology |
Electronic, standard, Micrologic 3.2, LI |
Continuous current rating |
80 % |
[Ui] rated insulation voltage |
750 V IEC 60947-2 |
Trip unit name |
Micrologic 3.2 |
Suitability for isolation |
Yes IEC 60947-2 |
Utilisation category |
Category A |
AWG gauge |
AWG 14...AWG 3/0 aluminium/copper terminal |
Local signalling |
Ready 1 LED green) |
Mounting mode |
I-Line bracket) |
Mounting Support |
Bracket |
Electrical connection |
I-Line connection line |
terminal identifier |
AL150HD |
long time pick-up adjustment range |
0.25...1 x In |
Mounting Height |
4.5 in (114.30 mm) |
Tightening torque |
44.25 lbf.in (5 N.m) 0.00...0.01 in (2.5...6 mm) (AWG 14...AWG 10) |
Number of slots |
2 auxiliary switch OF plug-in) |
Power wire stripping length |
0.63 in (16 mm) |
Color |
Black |
Height |
6.42 in (163 mm) |
Width |
4.09 in (104 mm) |
Depth |
3.39 in (86 mm) |
Net Weight |
4.85 lb(US) (2.2 kg) |
Quantity per Set |
1 |
Phase connection |
ABC |
Communication interface |
Modbus |
Circuit breaker application |
HACR rated |
Environment | |
Quality labels |
CE |
Standards |
UL |
Product certifications |
UL |
IP degree of protection |
Front cover IP40 IEC 60529 |
Pollution degree |
3 IEC 60947-1 |
Ambient Air Temperature for Operation |
28...158 degF (-2...70 degC) |
Ambient Air Temperature for Storage |
-58...185 degF (-50...85 degC) |
Operating altitude |
< 6561.68 ft (2000 m) without derating |
Ordering and shipping details | |
Category |
01104-H/J ELEC TRIP I-LINE BREAKER / SW |
Discount Schedule |
DE2 |
GTIN |
785901324409 |
Returnability |
Yes |
Country of origin |
MX |
Packing Units | |
Unit Type of Package 1 |
Db |
Number of Units in Package 1 |
1 |
Package 1 Height |
5.38 in (13.653 cm) |
Package 1 Width |
8.13 in (20.638 cm) |
Package 1 Length |
14.63 in (37.148 cm) |
Package 1 Weight |
6.40 lb(US) (2.905 kg) |
