Description
| Main | |
|---|---|
| Range | PowerPact |

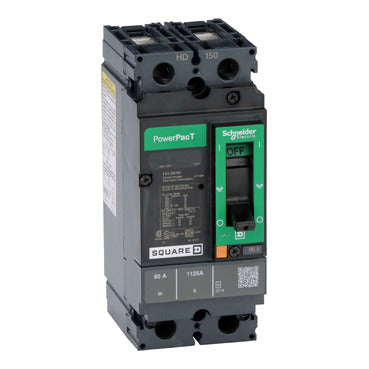

| Product name | PowerPact H |
| Product or Component Type | Circuit breaker |
| Device Application | Distribution |
| Complementary | |
| Line Rated Current | 90 A |
| Number of Poles | 2P |
| Protected poles description | 2t |
| Control Type | Toggle |
| Breaking capacity code | D |
| Breaking capacity | 25 kA 240 V AC 50/60 Hz UL 489 18 kA 480 V AC 50/60 Hz 14 kA 600 V AC 50/60 Hz 20 kA 250 V DC |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz IEC 60947-3 |
| Network Frequency | 50/60 Hz |
| [Ics] rated service breaking capacity | 25 kA 220/240 V AC 50/60 Hz IEC 60947-218 kA 380/440/415 V AC 50/60 Hz IEC 60947-214 kA 500/525 V AC 50/60 Hz IEC 60947-220 kA 250 V DC IEC 60947-220 kA 500 V DC IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 kV IEC 60947-2 |
| Trip unit technology | Thermal-magnetic |
| Magnetic tripping current | 1450 A |
| Magnetic hold current | 800 A |
| Continuous current rating | 80 % |
| [Ui] rated insulation voltage | 750 V IEC 60947-2 |
| Suitability for isolation | Yes IEC 60947-2 |
| Utilisation category | Category A |
| AWG gauge | AWG 14...AWG 3/0 aluminium/copper terminal |
| Local signalling | Switched off (OFF) 1 trip indicator green) |
| Mounting mode | Unit mount lug) |
| Mounting Support | Lug |
| Electrical connection | Lugs, lineLugs, load |
| Terminal identifier | AL150HD |
| Tightening torque | 44.3 lbf.in (5 N.m) 0.004…0.009 in² (2.5…6 mm²) (AWG 14...AWG 10)123.9 lbf.in (14 N.m) 0.02…0.1 in² (10…95 mm²) (AWG 8...AWG 3/0) |
| Number of slots | 2 auxiliary switch OF plug-in)1 alarm switch SD plug-in)1 overcurrent trip switch SDE plug-in)1 voltage release MN or MX plug-in) |
| Power wire stripping length | 0.6 in (16 mm) |
| Color | Black |
| Height | 6.4 in (163 mm) |
| Width | 4.09 in (104 mm) |
| Depth | 3.4 in (86 mm) |
| Product Weight | 4.9 lb(US) (2.2 kg) |
| Quantity per Set | 1 |
| Communication interface | ModbusEthernet |
| Circuit breaker application | HACR rated |
| Environment | |
| Quality labels | CE |
| Standards | ULCSANEMANOM-003-SCFI-2000IEC 60947-2 |
| Product certifications | ULCSANOM |
| IP degree of protection | Front cover IP40 IEC 60529 |
| Pollution degree | 3 IEC 60947-1 |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Ambient Air Temperature for Storage | -58…185 °F (-50…85 °C) |
| Operating altitude | < 6561.68 ft (2000 m) without derating5000 m with derating |
| Ordering and shipping details | |
| Category | US10DE201110 |
| Discount Schedule | 0DE2 |
| GTIN | 785901625193 |
| Returnability | Yes |
| Country of origin | US |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 5.125 in (13.018 cm) |
| Package 1 Width | 7.250 in (18.415 cm) |
| Package 1 Length | 8.438 in (21.433 cm) |
| Package weight(Lbs) | 3.0005 lb(US) (1.361 kg) |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet
HDL26090
HDL26090
