Description

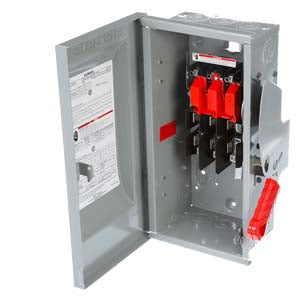

HF321N - Siemens - 30A 240V 3 Pole Fused Heavy Duty Safety Switch
The Siemens HF321N is a 3 Pole safety switch with a current rating of 30 Amps and a voltage rating of 240VAC, 250VDC. It has an interrupting rating of 200kAIC at 240V. The HF321N has a surface mounting type and it is used for indoor, residential, commercial, industrial and disconnecting mean for service entrance/loads applications.
TECHNICAL SPECIFICATIONS
Product related
| Article number | US2:HF321N |
| MFN | HF321N |
| UPC | 783643150287 |
| Commodity Code | 8536509045 |
Pricing related
| Price Group | N3H |
Delivery related
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard delivery time | 14 Day/Days |
| Packaging dimensions (L x W x H) | 14.60 x 7.75 x 8.89 inch |
| Net weight | 13.001 lb |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Dangerous goods | No |
Environment related
| WEEE (2012/19/EU) Take-Back Obligations | No |
| Compliance with the substance restrictions according to RoHS directive | not available |
| SCIP Number | not available |
Siemens specific
| Product Group | 5203 |
| Catalog ID | LV10.1 |
| Group Code | P320 |
| Country of origin | Mexico |
| Returnable Status | Yes |
PRODUCT DATASHEET
