Description

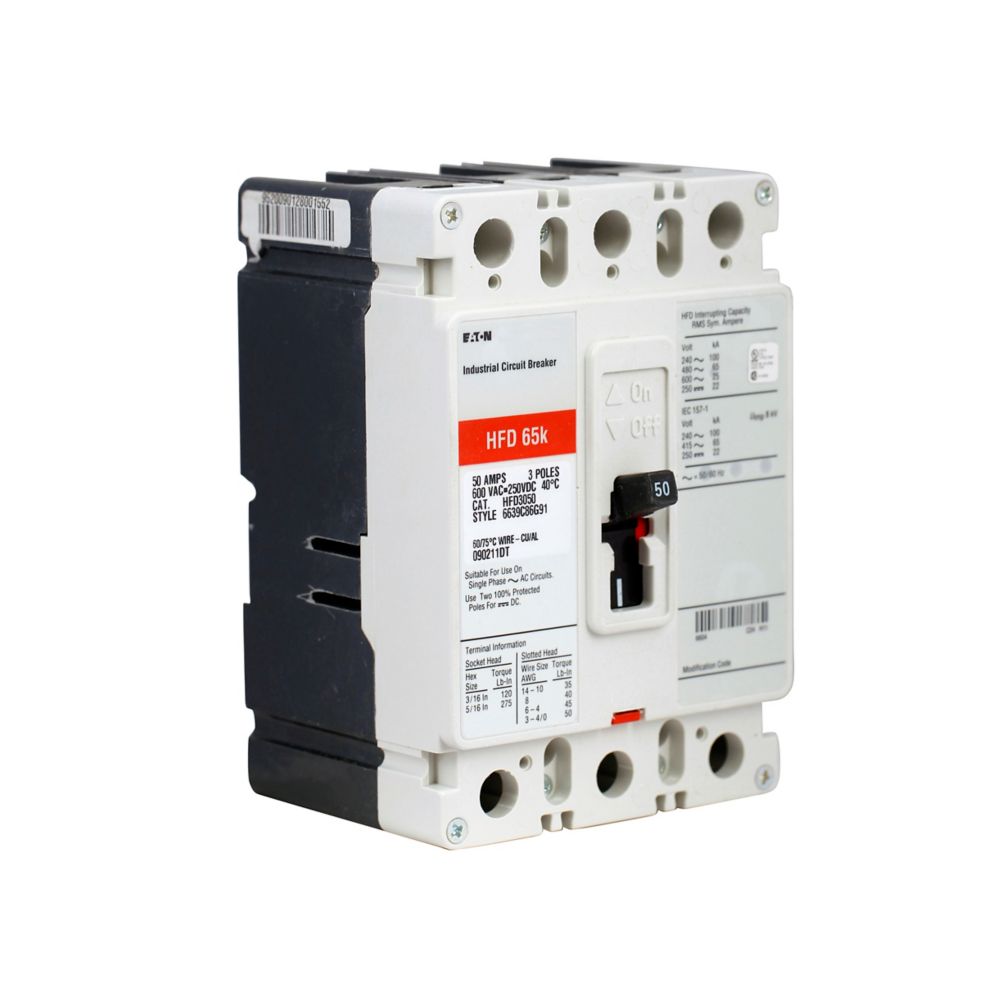

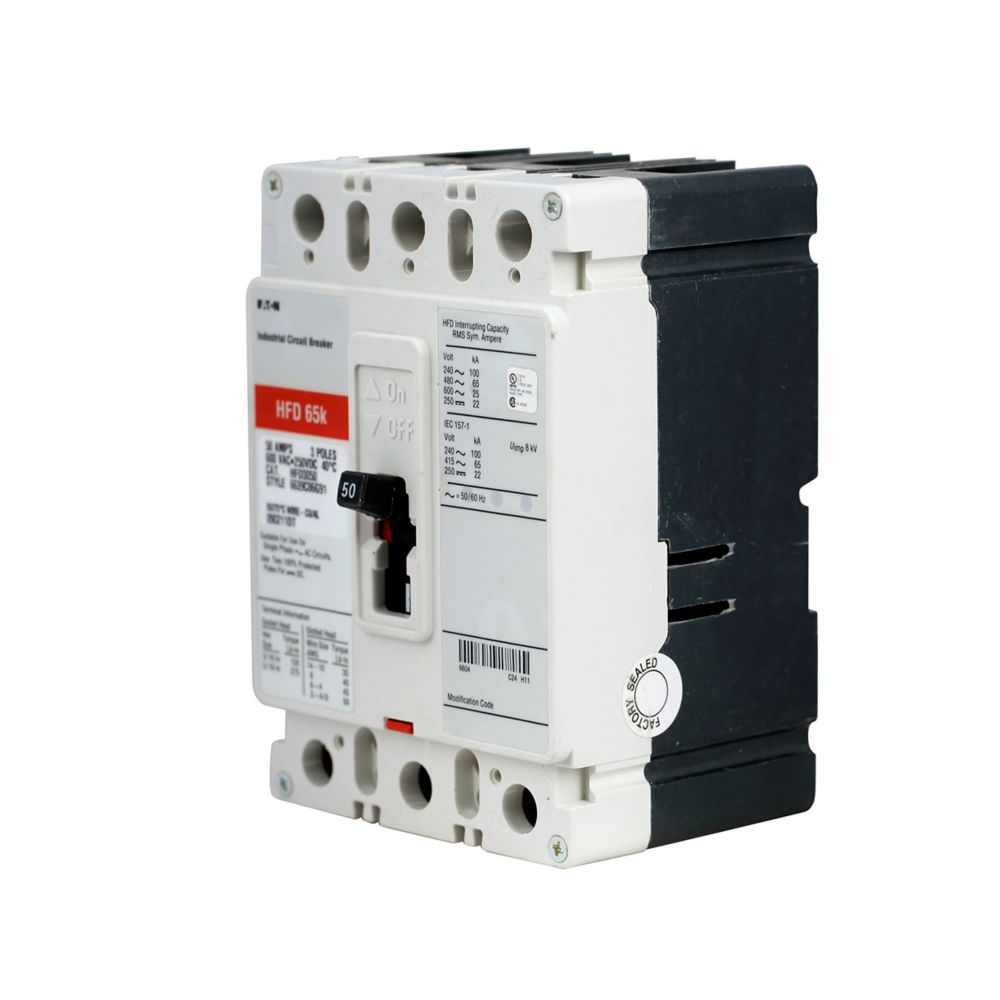

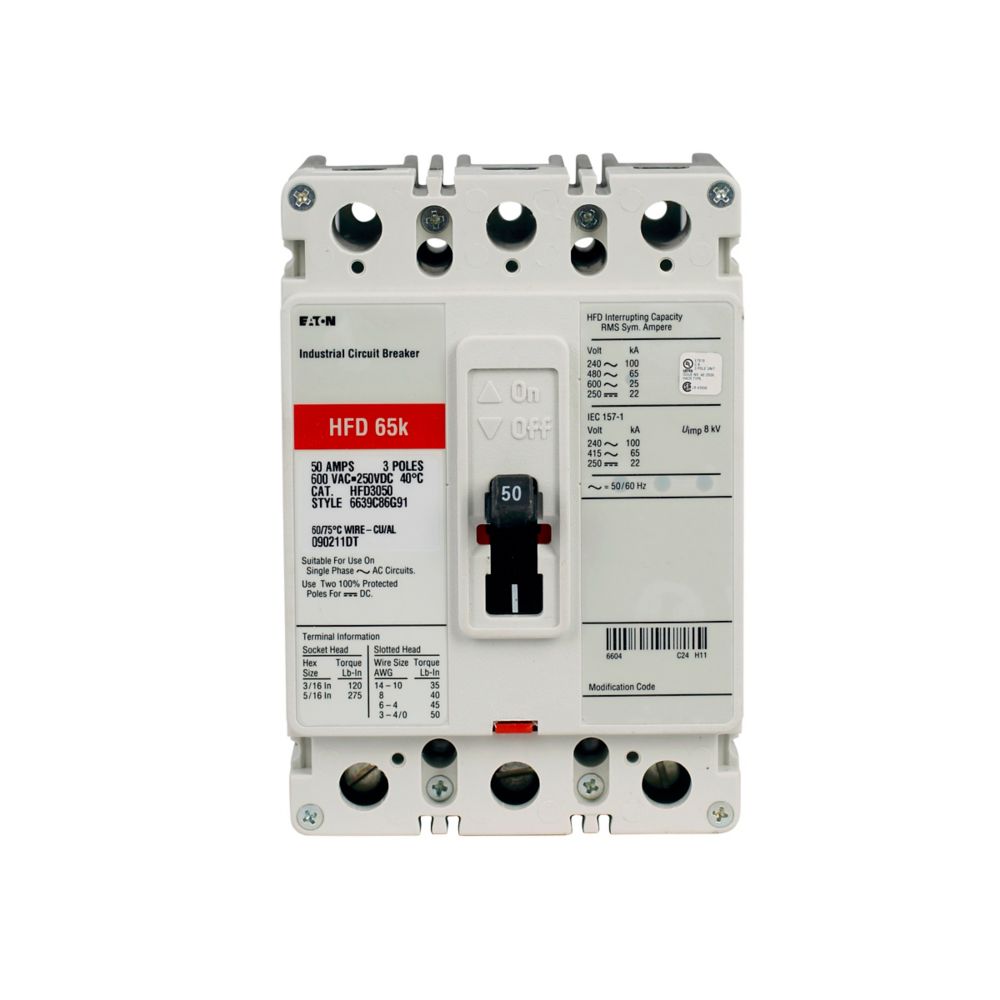

HFD3050L - Eaton Cutler-Hammer - Feed Thru 50 Amp 3 Pole 600 Volt Molded Case Circuit Breakers
Eaton Series C complete molded case circuit breaker, F-frame, HFD, Complete breaker, Fixed thermal, fixed magnetic trip type, Three-pole, 50A, 600 Vac, 250 Vdc, 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, Line and load, 50/60 Hz
GENERAL SPECIFICATIONS
| Product Name | Eaton Series C complete molded case circuit breaker |
| Catalog Number | HFD3050L |
| UPC | 786679175132 |
| Product Length/Depth | 3.38 in |
| Product Height | 6 in |
| Product Width | 4.13 in |
| Product Weight | 4.55 lb |
| Certifications | UL Listed |
| Product Type | Molded case circuit breaker |
PRODUCT SPECIFICATIONS
| Amperage Rating | 50 A |
| Voltage rating | 600 Vac, 250 Vdc |
| Trip Type | T186 |
| Circuit breaker type | HFD |
| Circuit breaker frame type | Complete breaker |
| Series | Series C |
| Terminals | Line and load |
| Frame | F |
| Frequency rating | 50/60 Hz |
| Interrupt rating | 100 kAIC at 240 Vac 65 kAIC at 480 Vac |
| Number of poles | Three-pole |
