Description

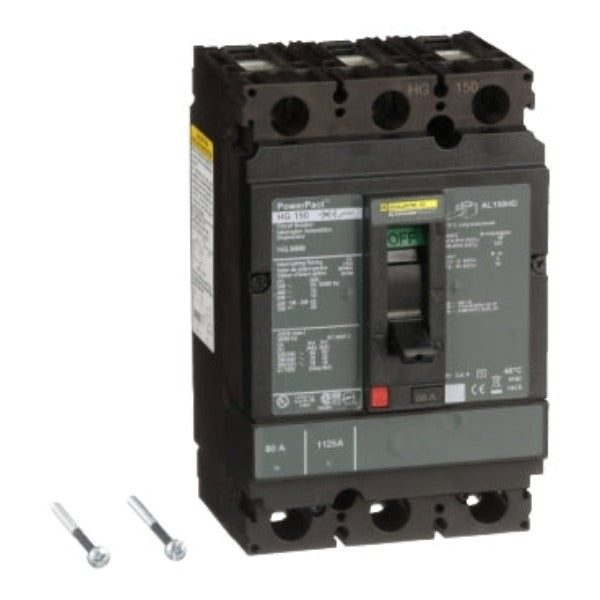

HGL36080 - Schneider Electric - Feed-Thru 80 Amp 3 Pole 600 Volt Square D Molded Case Circuit Breaker
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 80A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
GENERAL SPECIFICATIONS
|
Main |
|
|
Range |
PowerPact |
|
Product name |
PowerPact H |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution |
|
Complementary |
|
|
Line Rated Current |
80 A |
|
Number of Poles |
3P |
|
Protected poles description |
3t |
|
control type |
Toggle |
|
Breaking capacity code |
G |
|
Breaking capacity |
65 kA 240 V AC 50/60 Hz UL 489 |
|
[Ue] rated operational voltage |
690 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
[Ics] rated service breaking capacity |
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 |
|
[Uimp] rated impulse withstand voltage |
8 kV IEC 60947-2 |
|
Trip unit technology |
Thermal-magnetic |
|
Magnetic tripping current |
1450 A |
|
Magnetic hold current |
800 A |
|
Continuous current rating |
80 % |
|
[Ui] rated insulation voltage |
750 V IEC 60947-2 |
|
Suitability for isolation |
Yes IEC 60947-2 |
|
Utilisation category |
Category A |
|
AWG gauge |
AWG 14...AWG 3/0 aluminium/copper terminal |
|
Local signalling |
Switched off (OFF) 1 trip indicator green) |
|
Mounting mode |
Unit mount lug) |
|
Mounting Support |
Lug |
|
Electrical connection |
Lugs line |
|
terminal identifier |
AL150HD |
|
Tightening torque |
44.25 lbf.in (5 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10) |
|
Number of slots |
2 auxiliary switch OF plug-in) |
|
Power wire stripping length |
0.63 in (16 mm) |
|
Color |
Black |
|
Height |
6.42 in (163 mm) |
|
Width |
4.09 in (104 mm) |
|
Depth |
3.39 in (86 mm) |
|
Net Weight |
4.85 lb(US) (2.2 kg) |
|
Quantity per Set |
1 |
|
Communication interface |
Modbus |
|
Circuit breaker application |
HACR rated |
|
Environment |
|
|
Quality labels |
CE |
|
Standards |
UL |
|
Product certifications |
UL |
|
IP degree of protection |
Front cover IP40 IEC 60529 |
|
Pollution degree |
3 IEC 60947-1 |
|
Ambient Air Temperature for Operation |
28…158 °F (-2…70 °C) |
|
Ambient Air Temperature for Storage |
-58…185 °F (-50…85 °C) |
|
Operating altitude |
< 6561.68 ft (2000 m) without derating |
|
Ordering and shipping details |
|
|
Category |
01115-HG,HJ,JG,JJ UNIT MT BREAKER/SWITCH |
|
Discount Schedule |
DE2 |
|
GTIN |
785901598794 |
|
Returnability |
Yes |
|
Country of origin |
MX |
|
Packing Units |
|
|
Unit Type of Package 1 |
Db |
|
Number of Units in Package 1 |
1 |
|
Package 1 Height |
7.40 in (18.796 cm) |
|
Package 1 Width |
6.50 in (16.51 cm) |
|
Package 1 Length |
8.80 in (22.352 cm) |
|
Package 1 Weight |
4.14 lb(US) (1.88 kg) |
PRODUCT DATASHEET
Schneider Electric_PowerPacT-HFrame-Molded-Case-Circuit-Breakers_HGL36080
