Description

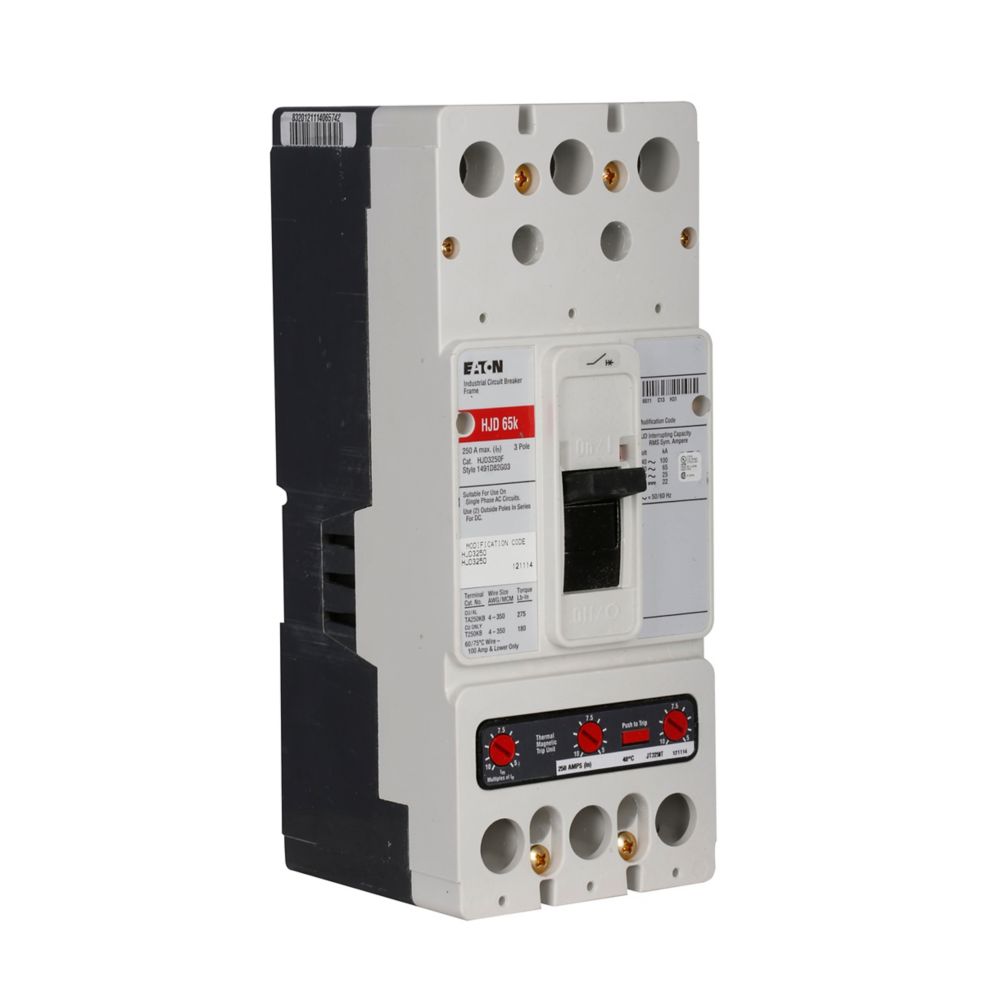

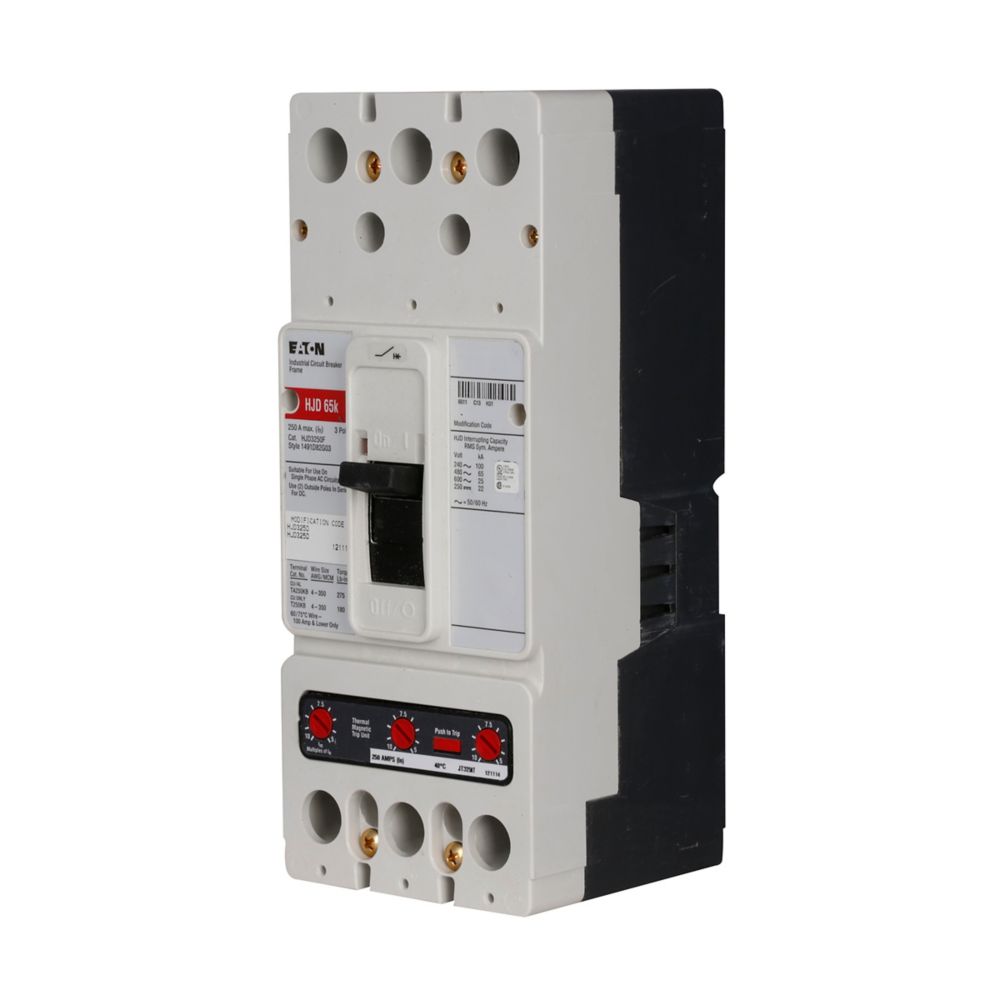

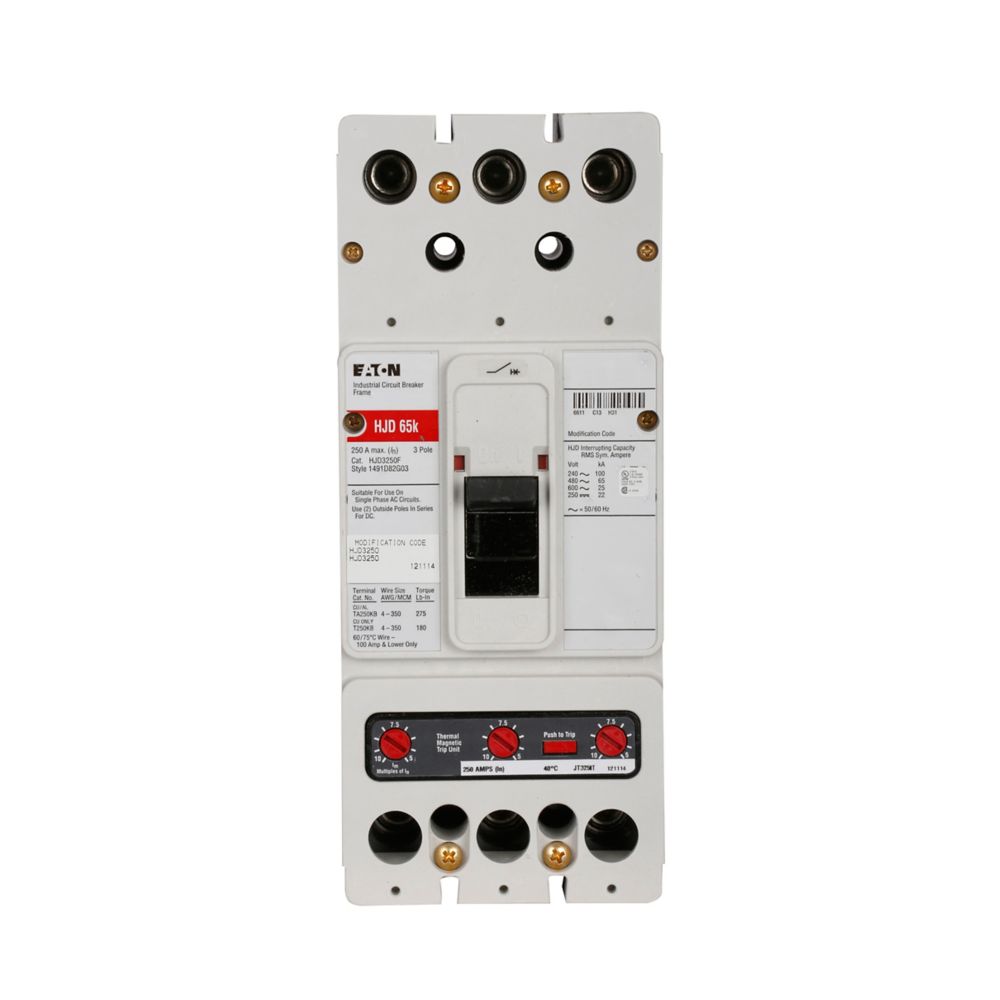

HJD3175 - Eaton Cutler-Hammer - Feed-Thru 175 Amp 3 Pole 600 Volt Molded Case Circuit Breaker
Eaton Series C complete molded case circuit breaker, J-frame, HJD, Fixed thermal, Fixed magnetic trip, Three-pole, 175 A, 600 Vac, 250 Vdc, 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, Aluminum, Line and load, 50/60 Hz
GENERAL SPECIFICATIONS
| Product Name | Eaton Series C complete molded case circuit breaker |
| Catalog Number | HJD3175 |
| UPC | 786679319109 |
| Product Length/Depth | 4.06 in |
| Product Height | 4.13 in |
| Product Width | 4.13 in |
| Product Weight | 12.5 lb |
| Certifications | UL Listed |
PRODUCT SPECIFICATIONS
| Type | Complete breaker |
| Amperage Rating | 175 A |
| Voltage rating | 600 Vac, 250 Vdc |
| Trip Type | T186 |
| Circuit breaker type | HJD |
| Circuit breaker frame type | Complete breaker |
| Series | Series C |
| Terminals | Line and load |
| Frame | J |
| Frequency rating | 50 to 60 Hz |
| Terminal material | Aluminum |
| Interrupt rating | 100 kAIC at 240 Vac 65 kAIC at 480 Vac |
| Number of poles | Three-pole |
