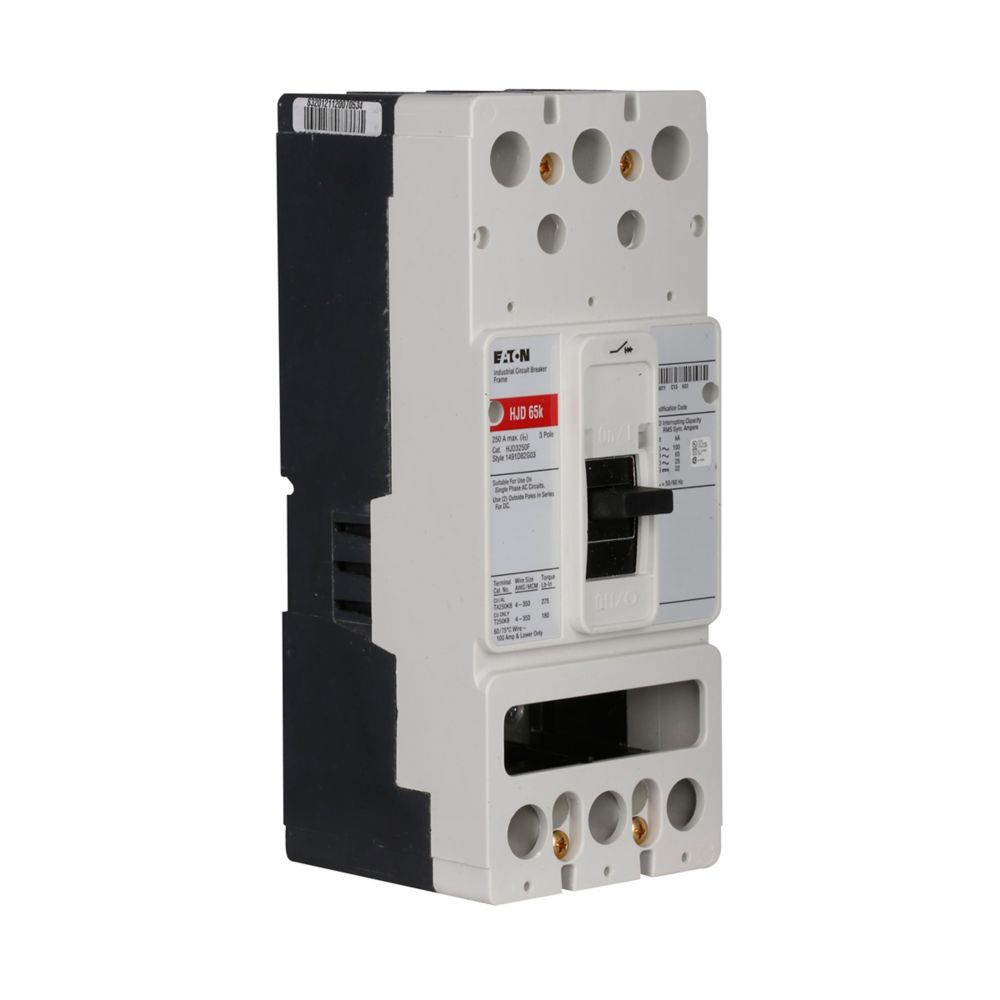

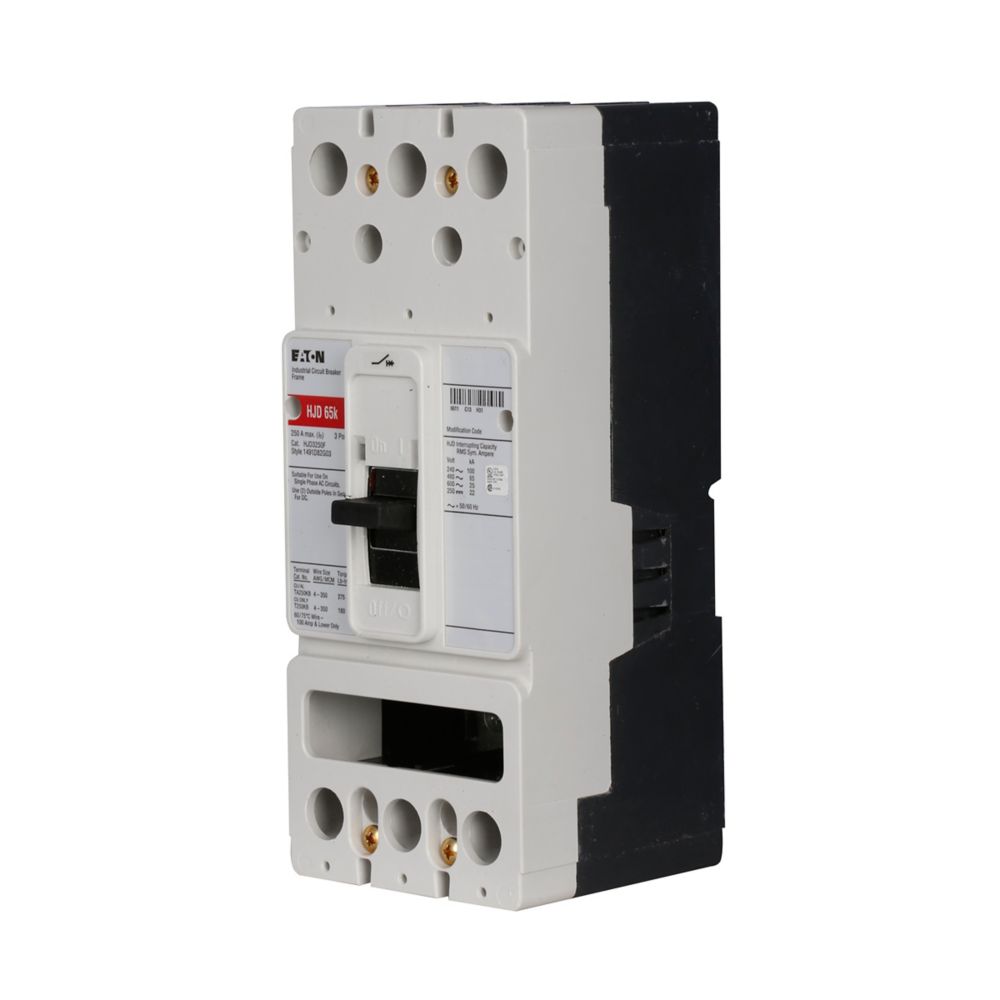

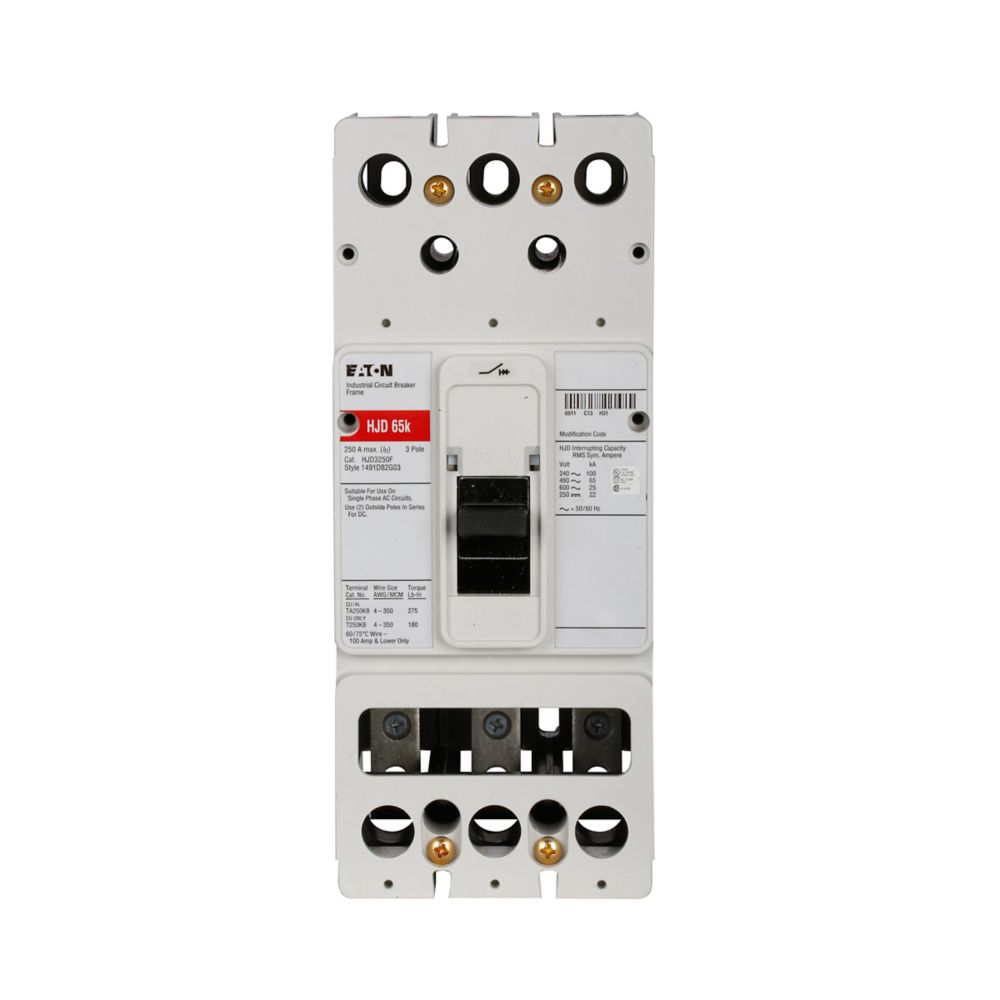

HJD3250F - Eaton Cutler Hammer - 250A 600VAC Three-Pole Molded Case Circuit Breakers
Eaton Series C molded case circuit breaker frame, J-frame molded case circuit breaker frame, 250 A, Three-pole, Interchangeable thermal magnetic trip, HJD breaker.
GENERAL SPECIFICATIONS
| Product Name |
Eaton Series C molded case circuit breaker frame
|
| Catalog Number |
HJD3250F
|
| UPC |
786679512067
|
| Product Length/Depth |
4.06 in
|
| Product Height |
4.13 in
|
| Product Width |
4.13 in
|
| Product Weight |
12.5 lb
|
| Certifications |
UL Listed
|
| Product Type |
Molded case circuit breaker
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
250 A
|
| Voltage rating |
600 Vac, 250 Vdc
|
| Trip Type |
T186
|
| Circuit breaker type |
HJD
|
| Circuit breaker frame type |
Frame only
|
| Series |
Series C
|
| Terminals |
Line and load
|
| Frame |
J
|
| Frequency rating |
50 to 60 Hz
|
| Terminal material |
Aluminum
|
| Interrupt rating |
100 kAIC at 240 Vac
65 kAIC at 480 Vac |
| Number of poles |
Three-pole
|
| Type |
Frame only
|
