Description

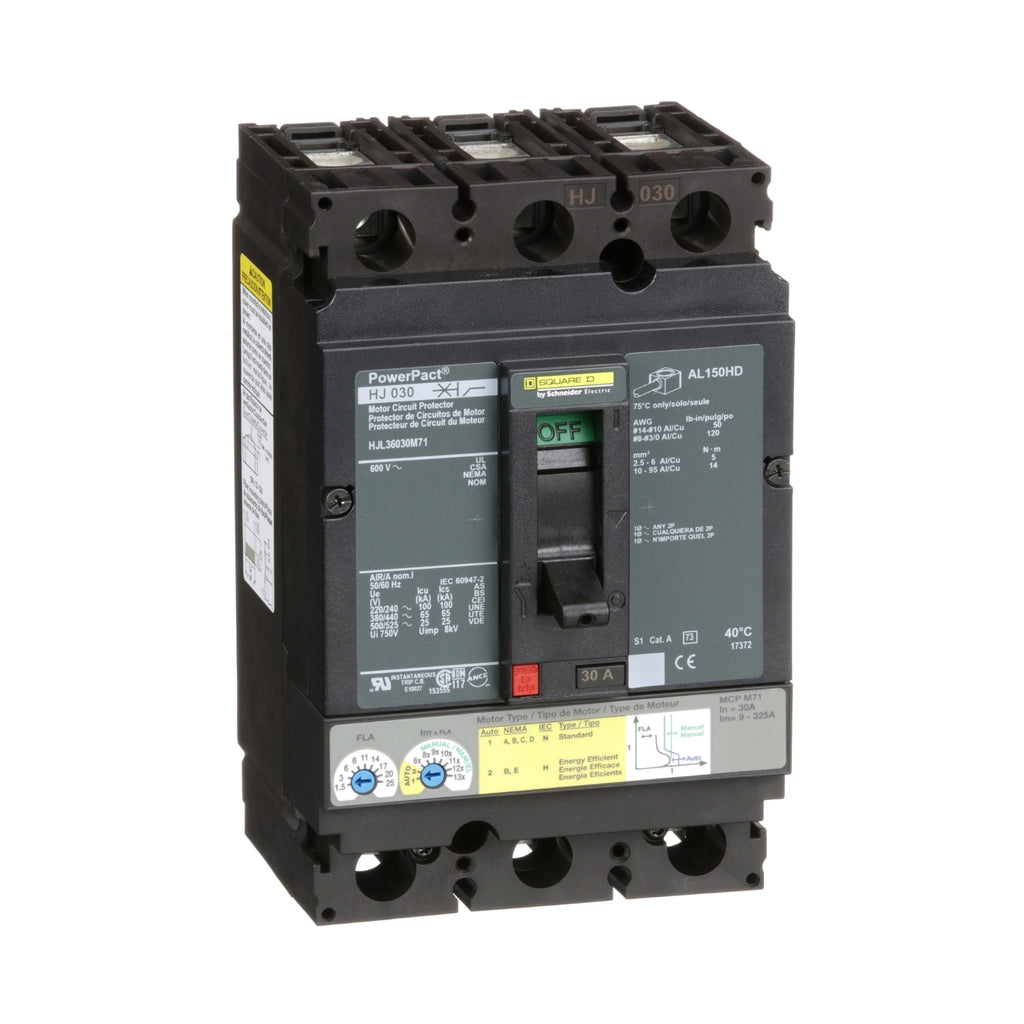

HJL36030M71 - Schneider Electric - Feed-Thru 30 Amp 3 Pole 600 Volt Square D Circuit Breaker
PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. This PowerPacT H, 30A, 3 pole, motor protector has a breaking capacity of 25kA at 600VAC. This unit has lugs on both the line and load side. These motor protectors accept the same accessories and terminals as PowerPacT H circuit breakers. This breaker has lugs on both the line and load sides. This breaker has a continuous current rating of 80%. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
GENERAL SPECIFICATIONS
| Main | |
| Range | PowerPact |
| Product name | PowerPact H |
| Product or Component Type | Motor Circuit Protector |
| Device Application | Distribution |
| Complementary | |
| Line Rated Current | 30 A |
| Number of Poles | 3P |
| Protected poles description | 3t |
| Control Type | Toggle |
| Breaking capacity code | J |
| Breaking capacity | 100 kA 240 V AC 50/60 Hz UL 489 |
| 65 kA 480 V AC 50/60 Hz UL 489 | |
| 25 kA 600 V AC 50/60 Hz UL 489 | |
| 20 kA 250 V DC UL 489 | |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz IEC 60947-3 |
| Network Frequency | 50/60 Hz |
| [Ics] rated service breaking capacity | 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 |
| 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 | |
| 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 | |
| 20 kA 250 V DC IEC 60947-2 | |
| 20 kA 500 V DC IEC 60947-2 | |
| [Uimp] rated impulse withstand voltage | 8 kV IEC 60947-2 |
| Trip unit technology | Thermal-magnetic |
| [Ith] conventional free air thermal current | 1.5…25 A |
| Magnetic tripping current | 9…325 A |
| Continuous current rating | 80% |
| [Ui] rated insulation voltage | 750 V IEC 60947-2 |
| Suitability for isolation | Yes IEC 60947-2 |
| Utilisation category | Category A |
| AWG gauge | AWG 14...AWG 3/0 aluminium/copper terminal |
| Mounting mode | Unit mount lug) |
| Mounting Support | Lug |
| Electrical connection | Lugs, line |
| Lugs, load | |
| Terminal identifier | AL150HD |
| Tightening torque | 44.3 lbf.in (5 N.m) 0.004…0.009 in² (2.5…6 mm²) (AWG 14...AWG 10) |
| 123.9 lbf.in (14 N.m) 0.02…0.1 in² (10…95 mm²) (AWG 8...AWG 3/0) | |
| Number of slots | 2 auxiliary switch OF plug-in) |
| 1 alarm switch SD plug-in) | |
| 1 overcurrent trip switch SDE plug-in) | |
| 1 voltage release MN or MX plug-in) | |
| Power wire stripping length | 0.6 in (16 mm) |
| Color | Black |
| Height | 6.4 in (163 mm) |
| Width | 4.09 in (104 mm) |
| Depth | 3.4 in (86 mm) |
| Net Weight | 4.9 lb(US) (2.2 kg) |
| Quantity per Set | 1 |
| Communication interface | Modbus |
| Ethernet | |
| Environment | |
| Quality labels | CE |
| Standards | UL |
| CSA | |
| NEMA | |
| NOM-003-SCFI-2000 | |
| IEC 60947-2 | |
| Product certifications | UL |
| CSA | |
| NOM | |
| IP degree of protection | Front cover IP40 IEC 60529 |
| Pollution degree | 3 IEC 60947-1 |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Ambient Air Temperature for Storage | -58…185 °F (-50…85 °C) |
| Operating altitude | < 6561.68 ft (2000 m) without derating |
| 5000 m with derating | |
| Ordering and shipping details | |
| Category | US10DE201125 |
| Discount Schedule | 0DE2 |
| GTIN | 785901492948 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 5.900 in (14.986 cm) |
| Package 1 Width | 7.500 in (19.050 cm) |
| Package 1 Length | 8.700 in (22.098 cm) |
| Package weight(Lbs) | 4.299 lb(US) (1.950 kg) |
PRODUCT DATASHEET
