Description

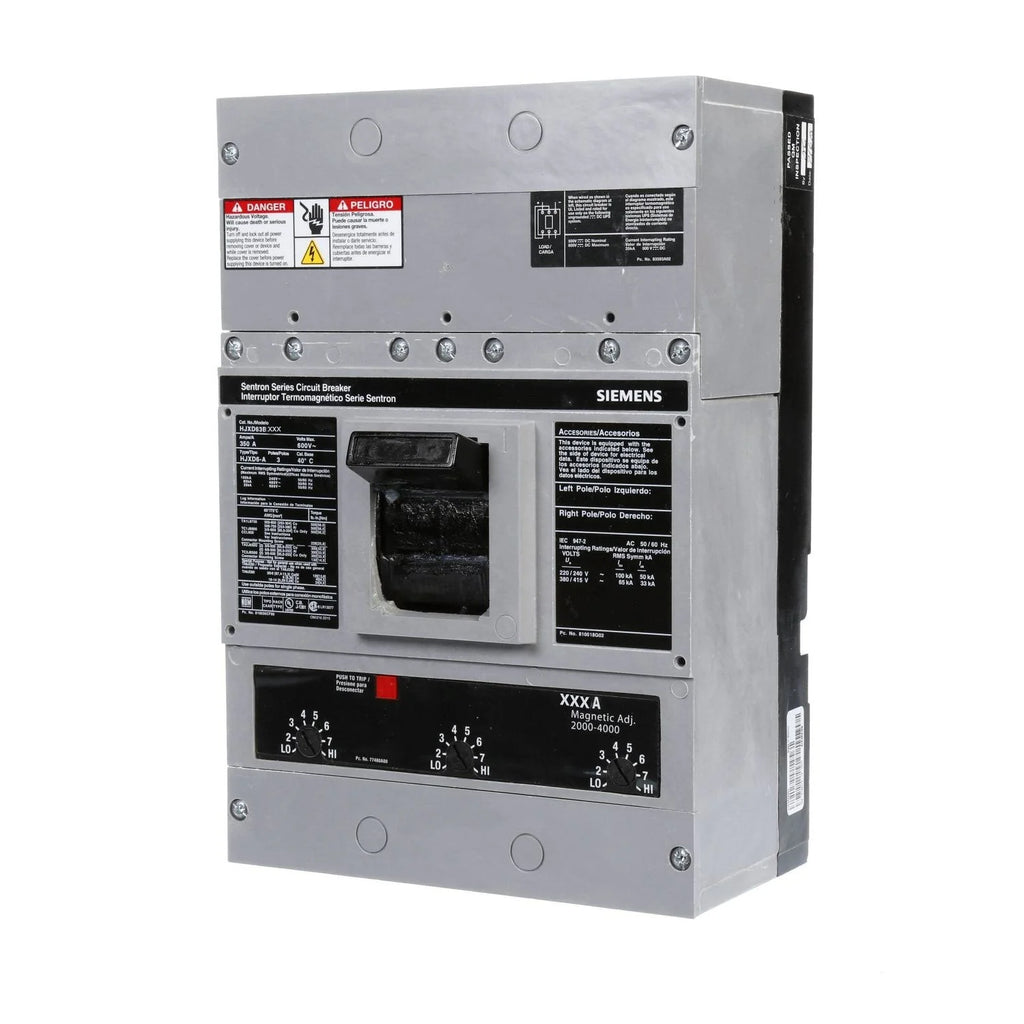

HJXD63B300 - Siemens - 300A 600V Bolt-On 3 Pole Circuit Breakers
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. STANDARD 40 DEG C BREAKER JD FRAME WITH HIGH BREAKING CAPACITY AND NON INTERCHANGEABLE TRIP. MEETS UL 489 / IEC 60947-2 STANDARDS. 300A 3-POLE BREAKER (35KAIC AT 600V) (65KAIC AT 480V). SPECIAL FEATURES: NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN: 7.5 x 11 x 4.
TECHNICAL SPECIFICATIONS
Product related
| Article number | US2:HJXD63B300 |
| MFN | HJXD63B300 |
| UPC | 783643314900 |
| Commodity Code | 85362099 |
Pricing related
| Price Group | NJC |
Delivery related
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard delivery time | 18 Day/Days |
| Packaging dimensions (L x W x H) | Not available |
| Net weight | 18.301 lb |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Dangerous goods | No |
Environment related
| WEEE (2012/19/EU) Take-Back Obligations | Yes |
| Compliance with the substance restrictions according to RoHS directive | Since: 07/14/2008 |
| SCIP Number | not available |
Siemens specific
| Product Group | 3741 |
| Catalog ID | LV10.1 |
| Group Code | P360 |
| Country of origin | Mexico |
| Returnable Status | Yes |
