Description

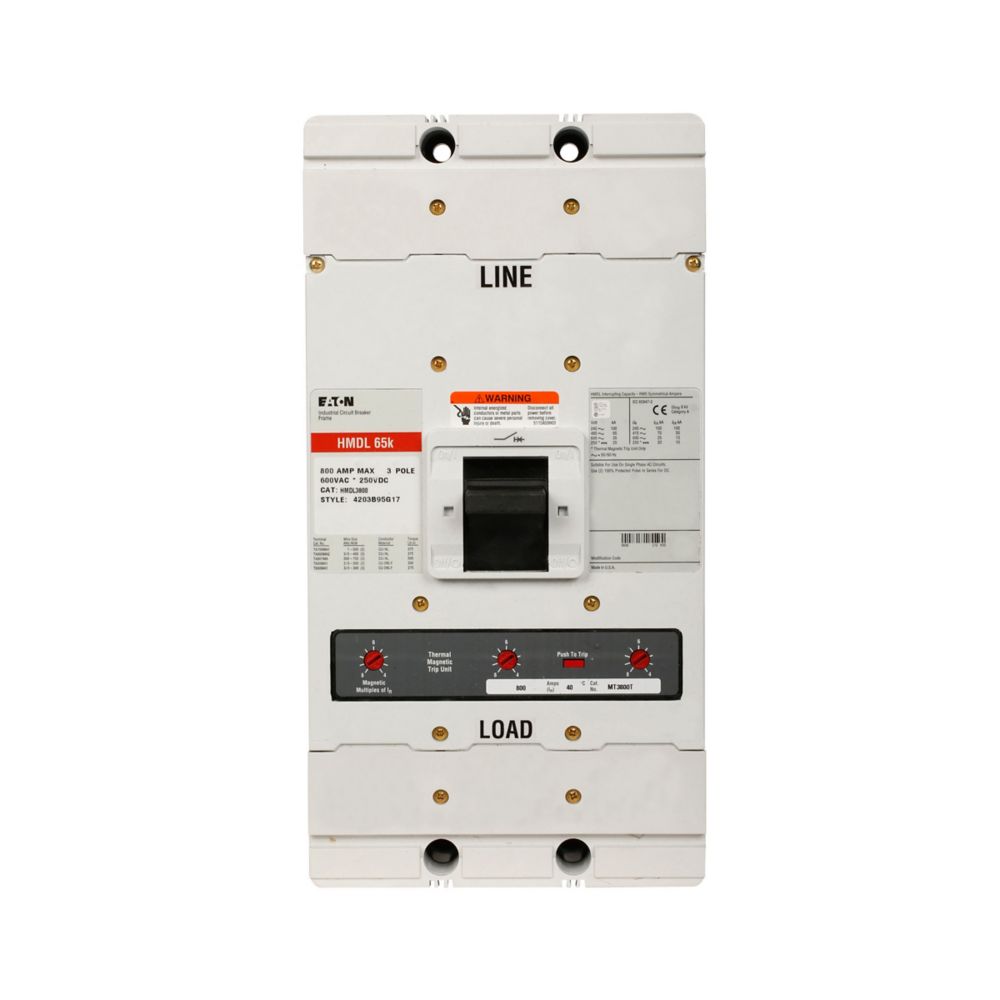

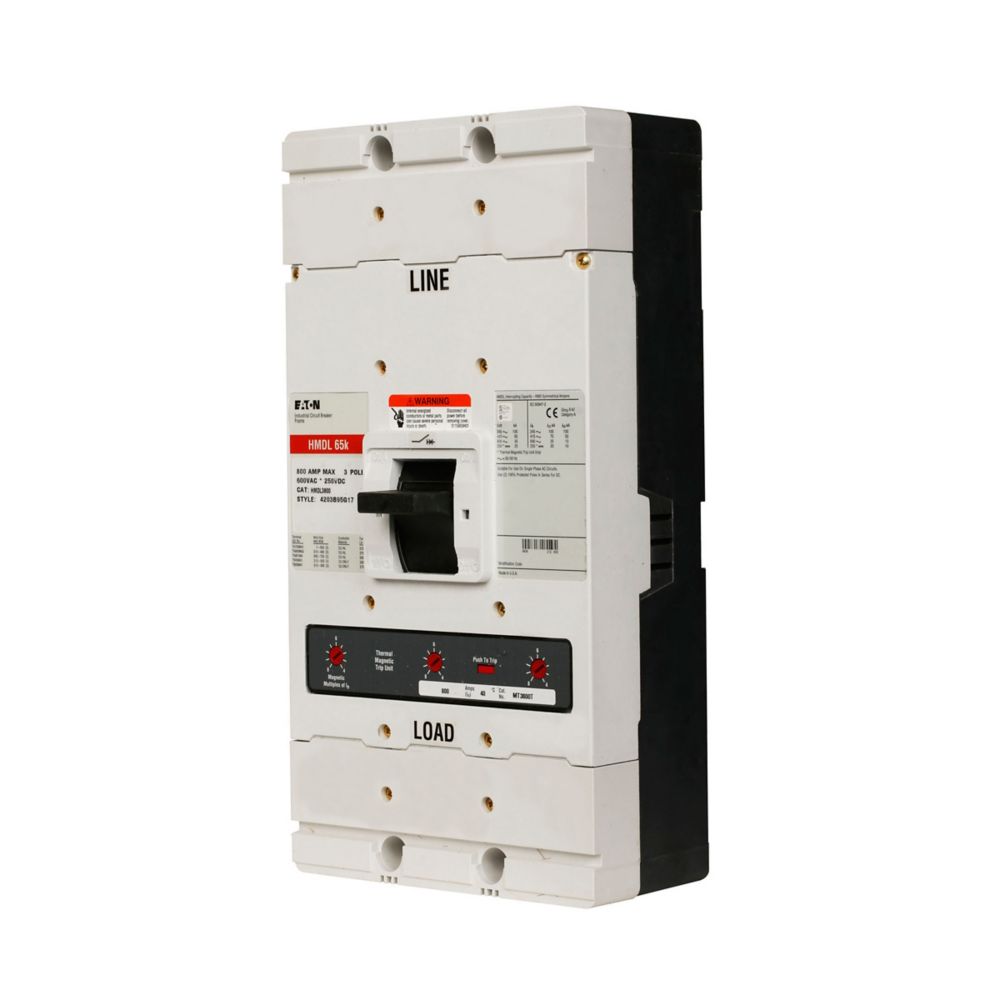

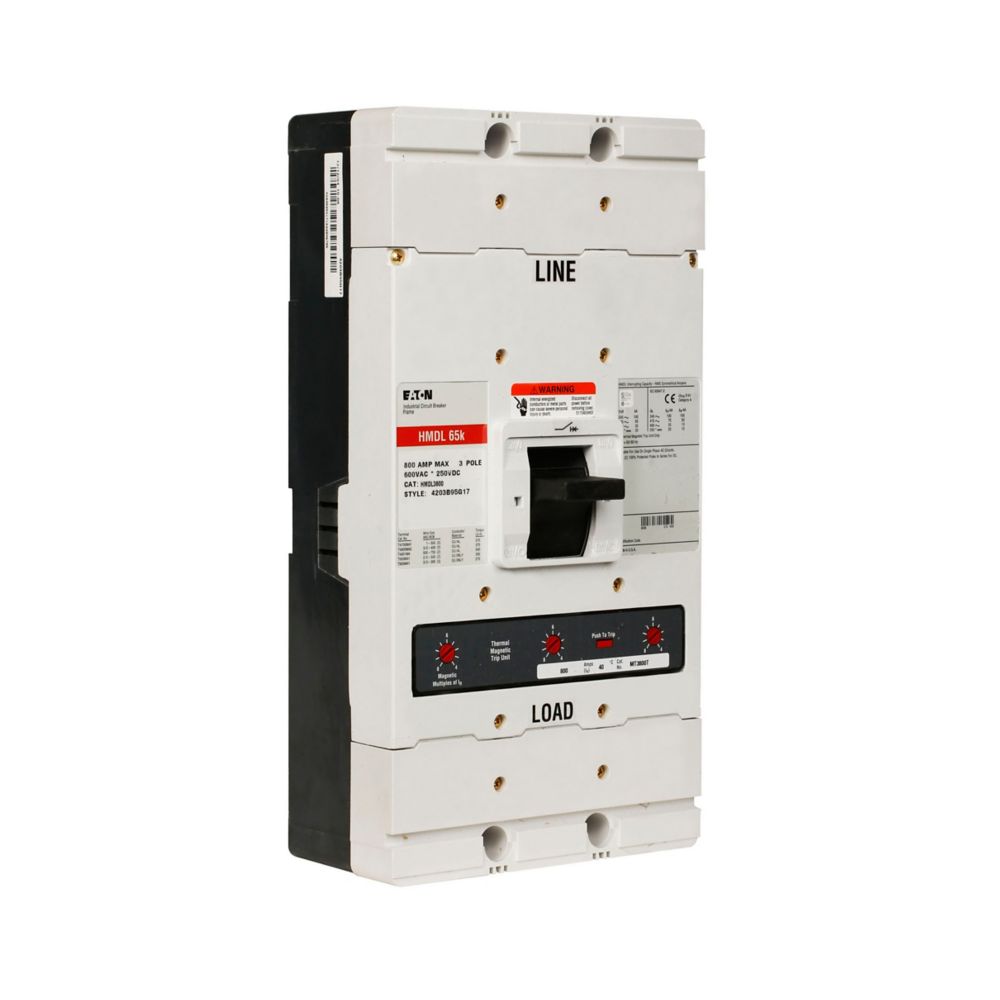

HMDL3800 - Eaton Cutler Hammer - 800A Three-Pole Circuit Breakers
Eaton Series C complete molded case circuit breaker, MDL-frame, HMDL, Complete breaker, Fixed thermal, Fixed magnetic trip type, Three-pole, 800A, 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, 50/60 Hz
GENERAL SPECIFICATIONS
| Product Name |
Eaton Series C complete molded case circuit breaker
|
| Catalog Number |
HMDL3800
|
| UPC |
782114586082
|
| Product Length/Depth |
18.25 in
|
| Product Height |
8 in
|
| Product Width |
10.75 in
|
| Product Weight |
30.4 lb
|
| Certifications |
UL Listed
|
| Product Type |
Molded case circuit breaker
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
800 A
|
| Trip Type |
T186
|
| Circuit breaker type |
HMDL
|
| Circuit breaker frame type |
Complete breaker
|
| Series |
Series C
|
| Frame |
MDL
|
| Interrupt rating |
100 kAIC at 240 Vac
65 kAIC at 480 Vac |
| Number of poles |
Three-pole
|
