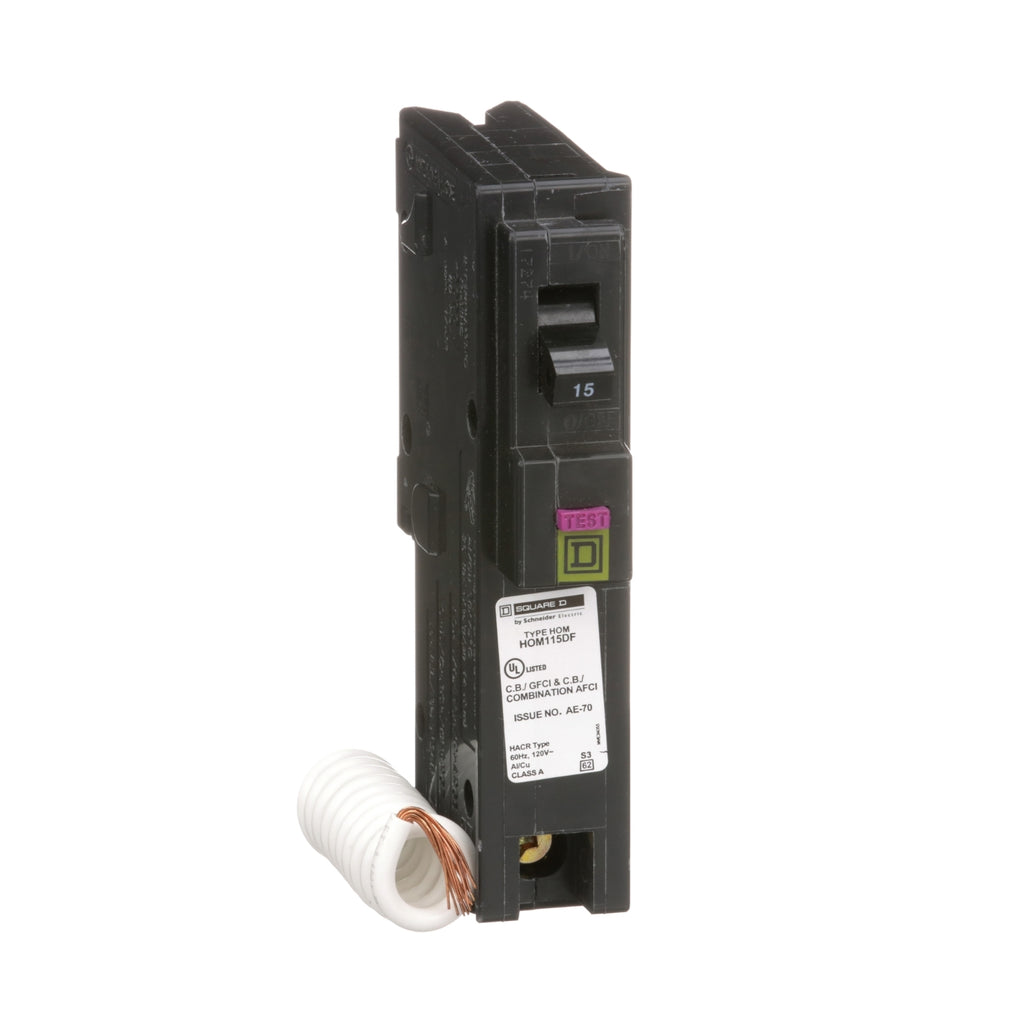

HOM115DF - Schneider Electric - Plug-In 15 Amp 1 Pole 120 Volt Square D Homeline Dual Function Circuit Breaker
Roll over image to zoom in Click on image to zoom
HOM115DF - Schneider Electric - Plug-In 15 Amp 1 Pole 120 Volt Square D Homeline Dual Function Circuit Breaker

HOM115DF - Schneider Electric - Plug-In 15 Amp 1 Pole 120 Volt Square D Homeline Dual Function Circuit Breaker

Square DSKU: SQDHOM115DF
Price:
$76.90
Stock:
Sold out

Description

HOM115DF - Schneider Electric - Plug-In 15 Amp 1 Pole 120 Volt Square D Homeline Dual Function Circuit Breaker

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 15A at 120 VAC. HOM breakers provide 10 kA breaking capacity. This dual function Homeline circuit breaker combines arc fault and ground fault circuit interrupters. This circuit breaker provides overload and short circuit protection, plus arc fault and ground fault protection in a single device in accordance with the NEC, UL1699 and UL943. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.

GENERAL SPECIFICATIONS

Main
Product Miniature circuit-breaker
Range Homeline
Current Rating 15 A
Certifications UL Listed
Voltage Rating 120 V AC
Mounting Type Plug-in
Number of Poles 1P
Short Circuit Current Rating 10 kA
Number of Spaces 1
Circuit Breaker Type Combination ARC-fault and ground fault
Ratings HACR rated
Electrical Connection Screw clamp terminals
Wire Size 1 x AWG 14...AWG 8 ( aluminium/copper )
2 x AWG 14...AWG 10 ( copper )
Complementary
Connections - Terminals Pigtail neutral
Tightening torque 35.4 lbf.in (4.0 N.m) 0.004…0.009 in² (2.5…6 mm²) (AWG 14...AWG 8)
Height 3.13 in (79.50 mm)
Width 1 in (25.4 mm)
Depth 2.98 in (75.69 mm)
Environment
Ambient Air Temperature for Operation 104 °F (40 °C)
Ordering and shipping details
Category US1DE3D06301
Discount Schedule DE3D
GTIN 785901741329
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 1.600 in (4.064 cm)
Package 1 Width 4.300 in (10.922 cm)
Package 1 Length 5.900 in (14.986 cm)
Package weight(Lbs) 10.560 oz (299.371 g)
Unit Type of Package 2 CAR
Number of Units in Package 2 38
Package 2 Height 4.500 in (11.430 cm)
Package 2 Width 14.200 in (36.068 cm)
Package 2 Length 20.900 in (53.086 cm)
Package 2 Weight 25.999 lb(US) (11.793 kg)
Compliance
Compliance TAA Compliant


PRODUCT DATASHEET

Schneider Electric_Square-D-Homeline-Miniature-Circuit-Breakers_HOM115DF
