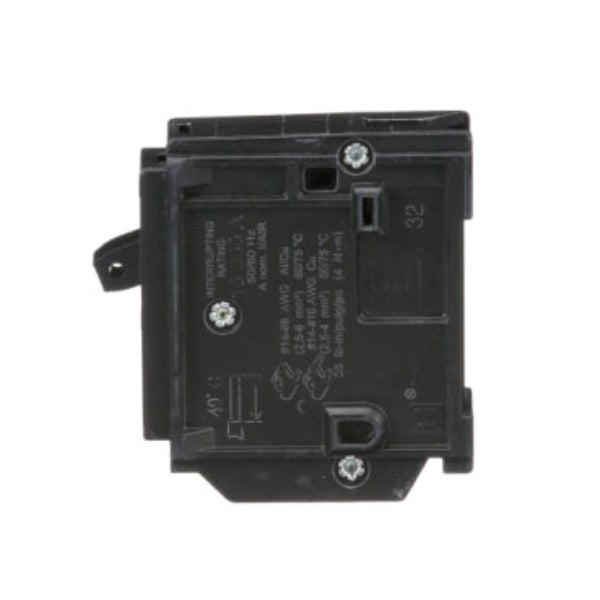

HOM120 - Schneider Electric - Plug-In 20 Amp 1 Pole 120 Volt Square D Homeline Circuit Breaker
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 20A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
GENERAL SPECIFICATIONS
|
Main |
|
|
Product |
Miniature circuit-breaker |
|
Range |
Homeline |
|
Current Rating |
20 A |
|
Certifications |
UL Listed |
|
Voltage Rating |
120/240 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
1P |
|
Short Circuit Current Rating |
10 kA |
|
Number of Spaces |
1 |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR and Switching Duty rated |
|
Electrical Connection |
Clamp terminal for 2 cables |
|
Wire Size |
AWG 14...AWG 8 aluminium/copper)1 |
|
Complementary |
|
|
Tightening torque |
35.40 lbf.in (4.0 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 8) |
|
Height |
3.13 in (79.50 mm) |
|
Width |
1 in (25.40 mm) |
|
Depth |
2.98 in (75.69 mm) |
|
Environment |
|
|
Ambient Air Temperature for Operation |
104 °F (40 °C) |
|
Ordering and shipping details |
|
|
Category |
00046-HOM/T 15-30A 1P; 15-60A 2P |
|
Discount Schedule |
DE3D |
|
GTIN |
785901065210 |
|
Returnability |
Yes |
|
Country of origin |
US |
|
Packing Units |
|
|
Unit Type of Package 1 |
Db |
|
Number of Units in Package 1 |
1 |
|
Package 1 Height |
1.00 in (2.54 cm) |
|
Package 1 Width |
3.10 in (7.87 cm) |
|
Package 1 Length |
3.00 in (7.62 cm) |
|
Package 1 Weight |
4.48 oz (127.01 g) |
|
Unit Type of Package 2 |
Gyári csomagolás |
|
Number of Units in Package 2 |
10 |
|
Package 2 Height |
3.20 in (8.128 cm) |
|
Package 2 Width |
2.70 in (6.858 cm) |
|
Package 2 Length |
10.20 in (25.908 cm) |
|
Package 2 Weight |
3.00 lb(US) (1.361 kg) |
|
Unit Type of Package 3 |
CAR |
|
Number of Units in Package 3 |
100 |
|
Package 3 Height |
10.60 in (26.924 cm) |
|
Package 3 Width |
7.00 in (17.78 cm) |
|
Package 3 Length |
16.60 in (42.164 cm) |
|
Package 3 Weight |
30.00 lb(US) (13.608 kg) |
PRODUCT DATASHEET
Schneider Electric_Square-D-Homeline-Miniature-Circuit-Breakers_HOM120
