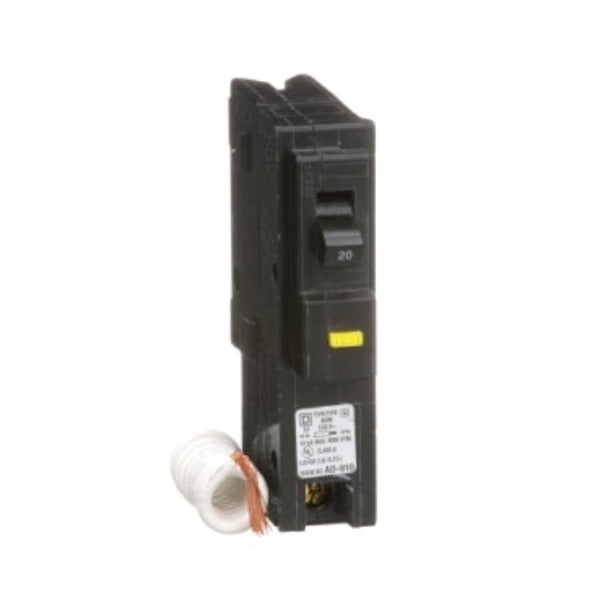

HOM120GFI - Schneider Electric - Plug-In 15 Amp 1 Pole 120 Volt Square D Homeline GFCI Circuit Breaker
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 20A at 120 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline ground fault circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
GENERAL SPECIFICATIONS
|
Main |
|
|
Product |
Miniature circuit-breaker |
|
Range |
Homeline |
|
Current Rating |
20 A |
|
Certifications |
UL Listed |
|
Voltage Rating |
120 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
1P |
|
Short Circuit Current Rating |
10 kA |
|
Number of Spaces |
1 |
|
Circuit Breaker Type |
Ground fault protecting class A 6 mA |
|
Ratings |
HACR rated |
|
Electrical Connection |
Screw clamp terminals |
|
Wire Size |
AWG 14...AWG 10 aluminium/copper)1 |
|
Complementary |
|
|
Tightening torque |
36.29 lbf.in (4.1 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10) |
|
Height |
3.13 in (79.50 mm) |
|
Width |
1 in (25.40 mm) |
|
Depth |
2.98 in (75.69 mm) |
|
Environment |
|
|
Ambient Air Temperature for Operation |
104 °F (40 °C) |
|
Ordering and shipping details |
|
|
Category |
00063-HOM 1 POLE GFI CB,20A MAX |
|
Discount Schedule |
DE3D |
|
GTIN |
785901065371 |
|
Returnability |
Yes |
|
Country of origin |
MX |
|
Packing Units |
|
|
Unit Type of Package 1 |
Db |
|
Number of Units in Package 1 |
1 |
|
Package 1 Height |
2.78 in (7.05 cm) |
|
Package 1 Width |
0.41 in (1.03 cm) |
|
Package 1 Length |
4.35 in (11.05 cm) |
|
Package 1 Weight |
10.41 oz (295.0 g) |
|
Unit Type of Package 2 |
CAR |
|
Number of Units in Package 2 |
38 |
|
Package 2 Height |
3.95 in (10.03 cm) |
|
Package 2 Width |
13.80 in (35.05 cm) |
|
Package 2 Length |
20.48 in (52.03 cm) |
|
Package 2 Weight |
24.71 lb(US) (11.21 kg) |
PRODUCT DATASHEET
Schneider Electric_Square-D-Homeline-Miniature-Circuit-Breakers_HOM120GFI
