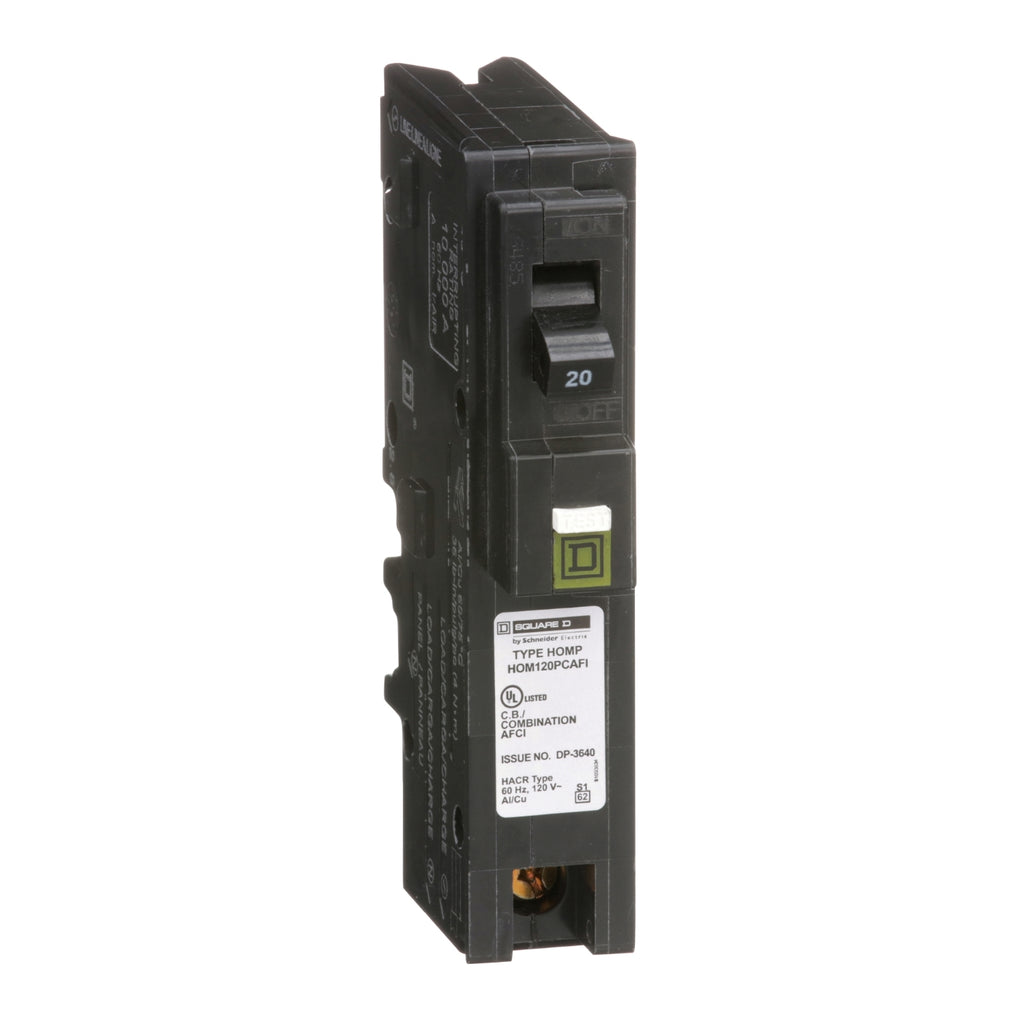

HOM120PCAFI - Schneider Electric - Plug-In 20 Amp 1 Pole 120 Volt Square D Homeline Arc Fault Circuit Breaker
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 20A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. Homeline combination arc fault circuit interrupters provide overload and short circuit protection, plus arc fault protection in accordance with the NEC and UL1699. This breaker has a plug on neutral. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.
GENERAL SPECIFICATIONS
| Main | |
| Product | Miniature circuit-breaker |
| Range | Homeline |
| Current Rating | 20 A |
| Certifications | UL Listed |
| Voltage Rating | 120 V AC |
| Mounting Type | Plug-in |
| Number of Poles | 1P |
| Short Circuit Current Rating | 10 kA |
| Number of Spaces | 1 |
| Circuit Breaker Type | Combination ARC-fault |
| Ratings | HACR rated |
| Electrical Connection | Clamp terminal for 2 cables |
| Wire Size | 1 x AWG 14...AWG 8 ( aluminium/copper ) |
| Complementary | |
| Connections - Terminals | Plug-on neutral |
| Tightening torque | 35.4 lbf.in (4.0 N.m) 0.004…0.009 in² (2.5…6 mm²) (AWG 14...AWG 8) |
| Height | 3.13 in (79.50 mm) |
| Width | 1 in (25.4 mm) |
| Depth | 2.98 in (75.69 mm) |
| Environment | |
| Ambient Air Temperature for Operation | 104 °F (40 °C) |
| Ordering and shipping details | |
| Category | US1DE3D06301 |
| Discount Schedule | DE3D |
| GTIN | 785901594475 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.400 in (3.556 cm) |
| Package 1 Width | 3.900 in (9.906 cm) |
| Package 1 Length | 5.100 in (12.954 cm) |
| Package weight(Lbs) | 9.760 oz (276.691 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 4.000 in (10.160 cm) |
| Package 2 Width | 13.900 in (35.306 cm) |
| Package 2 Length | 21.100 in (53.594 cm) |
| Package 2 Weight | 24.930 lb(US) (11.308 kg) |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 2160 |
| Package 3 Height | 40.000 in (101.600 cm) |
| Package 3 Width | 42.000 in (106.680 cm) |
| Package 3 Length | 42.000 in (106.680 cm) |
| Package 3 Weight | 1373.0004 lb(US) (622.782 kg) |
| Compliance | |
| Compliance | TAA Compliant |
