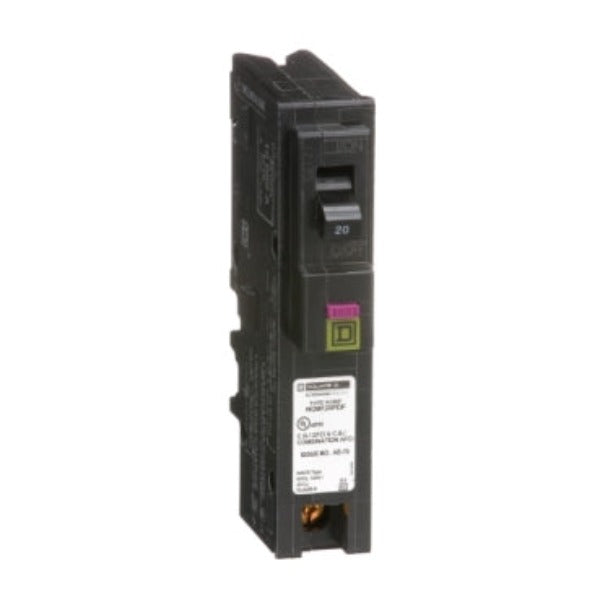

HOM120PDF - Schneider Electric - Plug-In 20 Amp 1 Pole 120 Volt Square D Homeline Dual Function Circuit Breaker
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 15A at 120 VAC. HOM breakers provide 10 kA breaking capacity. This dual function Homeline circuit breaker combines arc fault and ground fault circuit interrupters. This circuit breaker provides overload and short circuit protection, plus arc fault and ground fault protection in a single device in accordance with the NEC, UL1699 and UL943. This breaker has a plug on neutral. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
GENERAL SPECIFICATIONS
|
Main |
|
|
Product |
Miniature circuit-breaker |
|
Range |
Homeline |
|
Current Rating |
20 A |
|
Certifications |
UL Listed |
|
Voltage Rating |
120 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
1P |
|
Short Circuit Current Rating |
10 kA |
|
Number of Spaces |
1 |
|
Circuit Breaker Type |
Combination ARC-fault and ground fault class A 6 mA |
|
Ratings |
HACR rated |
|
Electrical Connection |
Clamp terminal for 2 cables |
|
Wire Size |
AWG 14...AWG 8 aluminium/copper)1 |
|
Complementary |
|
|
Connections - Terminals |
Plug-on neutral |
|
Tightening torque |
35.40 lbf.in (4.0 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 8) |
|
Height |
3.13 in (79.50 mm) |
|
Width |
1 in (25.40 mm) |
|
Depth |
2.98 in (75.69 mm) |
|
Environment |
|
|
Ambient Air Temperature for Operation |
104 °F (40 °C) |
|
Ordering and shipping details |
|
|
Category |
06301-HOM SINGLE POLE ARC FAULT CIRCUIT BREAKER |
|
Discount Schedule |
DE3D |
|
GTIN |
785901978343 |
|
Returnability |
Yes |
|
Country of origin |
MX |
|
Packing Units |
|
|
Unit Type of Package 1 |
Db |
|
Number of Units in Package 1 |
1 |
|
Package 1 Height |
4.00 in (10.16 cm) |
|
Package 1 Width |
5.00 in (12.7 cm) |
|
Package 1 Length |
1.20 in (3.048 cm) |
|
Package 1 Weight |
9.60 oz (272.155 g) |
|
Unit Type of Package 2 |
CAR |
|
Number of Units in Package 2 |
40 |
|
Package 2 Height |
3.70 in (9.398 cm) |
|
Package 2 Width |
20.80 in (52.832 cm) |
|
Package 2 Length |
13.70 in (34.798 cm) |
|
Package 2 Weight |
25.90 lb(US) (11.748 kg) |
PRODUCT DATASHEET
Schneider Electric_Square-D-Homeline-Miniature-Circuit-Breakers_HOM120PDF
